Time-Consuming Inventory
Manual cycle counts require employees to inspect documents individually, increasing the time and effort needed to verify title deed availability.
RFID Document Tracking Case Study
Securing and Tracking Title Deeds with RFID at Eskan Bank, Bahrain
Technowave Bahrain implemented an RFID-enabled Document Tracking System to help Eskan Bank improve title deed inventory, accelerate document circulation and detect unauthorized file movement in real time.
3 Days
Title Deed Cycle Count
1 Reader
Handheld Used for Inventory
Real Time
Movement Alerts
RFID
Document Identification
01. Project Overview
A Connected System for Managing High-Value Physical Documents

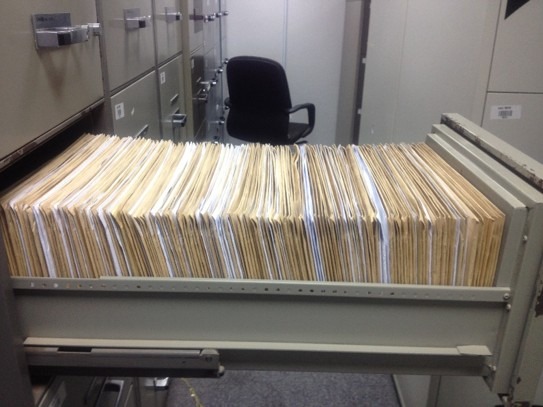

Eskan Bank manages physical title deed files that must remain available, identifiable and protected throughout their internal circulation.
Technowave Bahrain implemented an RFID-based Document Tracking System that connects each tagged title deed with a digital record inside the easyTrack platform.
The solution allows authorized employees to issue, return, locate and audit documents while fixed RFID readers monitor movement through controlled areas.
- Centralized visibility of title deed records
- Faster inventory and document locating
- RFID-enabled file check-in and check-out
- Detection of unauthorized document movement
- Real-time email alerts and local alarms
02. Client Challenge
Managing Document Availability, Circulation and Security
Managing a large collection of physical title deeds through conventional processes can create delays in inventory, file retrieval and circulation control.
Difficulty Locating Files
Locating a particular document inside storage cabinets or file shelves can take considerable time when the exact physical location is not immediately known.
Unauthorized Movement Risk
Sensitive title deeds require strong controls to detect when a file is moved or removed without completing the authorized document transaction.
03. Solution Implemented
RFID-Enabled Document Tracking from Storage to Movement Control
Technowave combined document tracking software, uniquely identified RFID labels and multiple reader types to create a complete title deed management workflow.
easyTrack Web Platform
The centralized web platform maintains document information, circulation records and title deed transaction visibility.
SoftwareMobile Application
The easyTrack mobile application supports document-related operations through compatible mobile and handheld RFID devices.
Mobile OperationsRFID Document Labels
Each title deed is assigned a unique RFID identity linked with its corresponding document record in the tracking software.
IdentificationHandheld RFID Readers
Handheld readers allow employees to perform rapid inventory and locate a selected title deed without manually checking each file.
Inventory & SearchDesktop RFID Reader
Desktop readers support controlled check-in and check-out of title deeds while recording document transactions in the system.
CirculationFixed Portal Monitoring
Fixed readers monitor controlled movement points and identify tagged title deeds passing through the portal.
Security
04. Technology Stack
Components Used for the Document Tracking Project
The project combined software, middleware, RFID tags and reader infrastructure to support document identification, transaction management and security monitoring.
| Component | Product or Technology | Application |
|---|---|---|
| Document Tracking Software | easyTrack Web-Based Document Tracking System | Centralized title deed records, circulation visibility and document transaction management. |
| Mobile Software | easyTrack DTS Mobile Application | Mobile document operations and support for handheld RFID workflows. |
| RFID Middleware | RFID Revolution Middleware | Communication and data exchange between readers, RFID labels and the document tracking platform. |
| Desktop Reader | Diester UDL 50 | Document check-in, check-out and controlled circulation transactions. |
| RFID Labels | SmartTrack ShortDipole RFID Labels | Unique RFID identification for individual title deed files. |
| Fixed Reader | Impinj R420 with GPIO | Portal monitoring, alarms and unauthorized movement detection. |
| Handheld Reader | Nordic ID Merlin and Medea | Rapid inventory counting and locating selected title deeds. |
05. How the System Works
A Traceable Workflow for Every Title Deed
Each document is connected with a unique digital record, allowing the system to maintain visibility from registration and circulation to inventory and security monitoring.
Tag and Register
An RFID label is assigned to the title deed and connected with the corresponding record inside easyTrack.
Issue or Return
The desktop RFID reader records the file check-out or check-in transaction during document circulation.
Locate and Audit
Handheld RFID readers are used to conduct inventory counts and search for specific documents inside the storage area.
Monitor Movement
Fixed portal readers detect tagged files moving through controlled points and trigger alerts when required.
3 Days
Completed with One Handheld RFID Reader
Faster Title Deed Inventory Cycle Count
Using one handheld RFID reader, the title deed inventory cycle count was completed in three days.
RFID enabled multiple tagged files to be identified rapidly, reducing the need to manually inspect and verify each document individually.
06. Project Results
Improved Control Across the Document Lifecycle
The completed solution supported inventory, document retrieval, circulation management and movement security through one connected RFID environment.
Accelerated Cycle Counting
The title deed inventory cycle count was completed in three days using a single handheld RFID reader.
Reduced Document Locating Time
Employees can use the handheld reader to identify and locate a required title deed within a shorter period.
Faster Check-In and Check-Out
RFID-enabled transactions accelerate the process of issuing, transferring and returning physical files.
Document Circulation Monitoring
Authorized employees gain improved visibility of document availability and title deed circulation.
Unauthorized Movement Detection
The fixed RFID reader can detect an unauthorized document movement through a controlled portal.
Real-Time Security Notification
Unauthorized file movement can trigger a real-time email notification and local alarm for immediate attention.
07. Business Benefits
Greater Efficiency Without Compromising Document Security
The RFID Document Tracking System helps simplify routine title deed operations while providing stronger control over sensitive physical records.
Rather than relying only on manual registers and visual file searches, employees can use RFID data to complete document transactions, conduct inventory and monitor movement.
✓
Reduced manual effort during document inventory
✓
Faster retrieval of requested title deeds
✓
More efficient document check-in and check-out
✓
Improved accountability for document circulation
✓
Real-time visibility of unauthorized movement
✓
Stronger protection for high-value physical records
08. Conclusion
A Practical RFID Application for Secure Document Management
The Eskan Bank project demonstrates how RFID technology can improve the management of sensitive physical documents without disrupting existing document-handling operations.
By combining easyTrack software with RFID labels, handheld readers, desktop readers and fixed portal monitoring, Technowave Bahrain delivered a connected system for title deed inventory, retrieval, circulation and security.
The solution enabled a title deed cycle count to be completed in three days using one handheld reader, while also supporting faster document locating and real-time alerts for unauthorized movement.
