Description

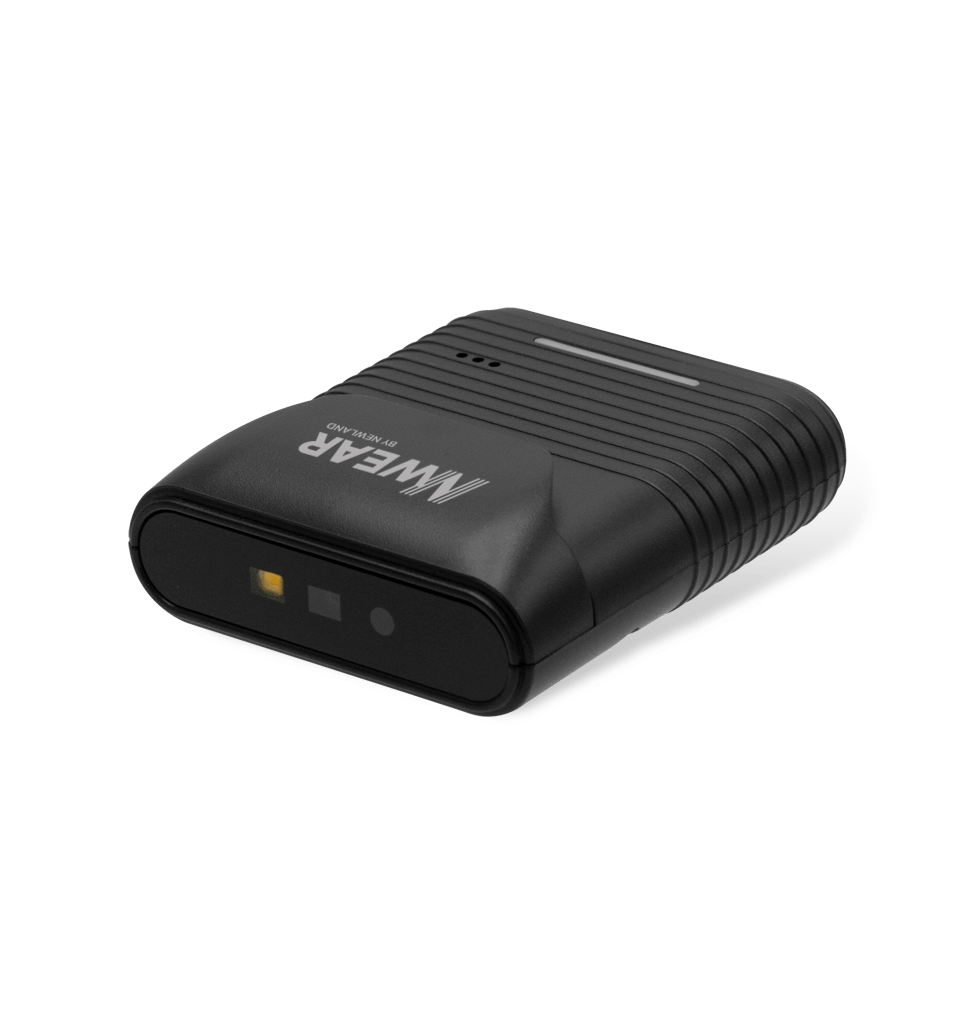

The Newland WD2 is a hands-free wearable scanner for picking, packing and sorting. It clips into an integrated trigger strap worn between thumb and forefinger, so operators scan with a light thumb press and never have to put a scanner down to lift a box.
It pairs over Bluetooth 5.0 with Newland and third-party Android devices and PCs, sending data straight into your warehouse or retail application.
Comfortable hands-free scanning
The trigger strap comes in two sizes and in left- and right-handed versions, and the large size fits over thicker gloves for cold or heavy-duty work. A magnetic quick-click dock and securing strap hold the scanner firmly until the user removes it.
Precise 2D scanning
A 1280 x 800 CMOS imager reads 1D and 2D codes on labels and screens. Acuscan uses the laser cross aimer so only the targeted barcode is decoded, which avoids mis-picks on crowded labels. A mid-range (MR) version reads larger codes from further away.
Built for long shifts
The 670 mAh battery provides about 10 hours of continuous operation and recharges in under two hours. Up to four charging cradles can be daisy-chained into a multi-charging station, and the IP65 housing survives 1.5 m drops.
Key features
- Back-of-hand wearable with integrated thumb trigger strap
- 43 g lightweight design
- 1D/2D CMOS imager with Acuscan precision aiming
- Bluetooth 5.0 BLE/HID with up to 80 m range
- About 10 hours per charge, under 2 hours to recharge
- Daisy-chain up to 4 charging cradles
- IP65 sealing and 1.5 m drop rating
Technical specifications
| Image sensor | 1280 x 800 CMOS, white LED illumination |
|---|---|
| Aiming | SR: cross laser 650 nm; MR: dot laser 650 nm |
| Field of view | SR: 40° x 25°; MR: 33° x 21° |
| Depth of field | EAN-13 (13 mil): SR 65-540 mm, MR 60-850 mm |
| Symbologies | 1D incl. EAN/UPC, Code 128, Code 39, GS1 DataBar; 2D incl. QR, DataMatrix, PDF417, Aztec, MaxiCode |
| Wireless | Bluetooth 5.0 (BLE, HID), up to 80 m in open space |
| Battery | 670 mAh Li-ion, about 10 h continuous use, under 2 h charge |
| Dimensions | 58.8 x 48.8 x 18 mm |
| Weight | 43 g |
| Sealing and drops | IP65; 1.5 m drop |
| Operating temperature | -20 °C to 50 °C |
| Warranty | 2 years |
What’s in the box
WD2 wearable scanner with AD60-D-M power supply and multiplug adapter. Integrated trigger straps, the 2-slot charging cradle and a USB Bluetooth dongle are available separately.
Ideal for
Warehouse picking and packing, parcel sorting, goods receiving, retail replenishment and click-and-collect, and production lines where operators handle items with both hands.
Why buy the Newland WD2 from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live. Protect your investment with our Newland AMC and repair service, or contact our team for a project quote and volume pricing.
