Description

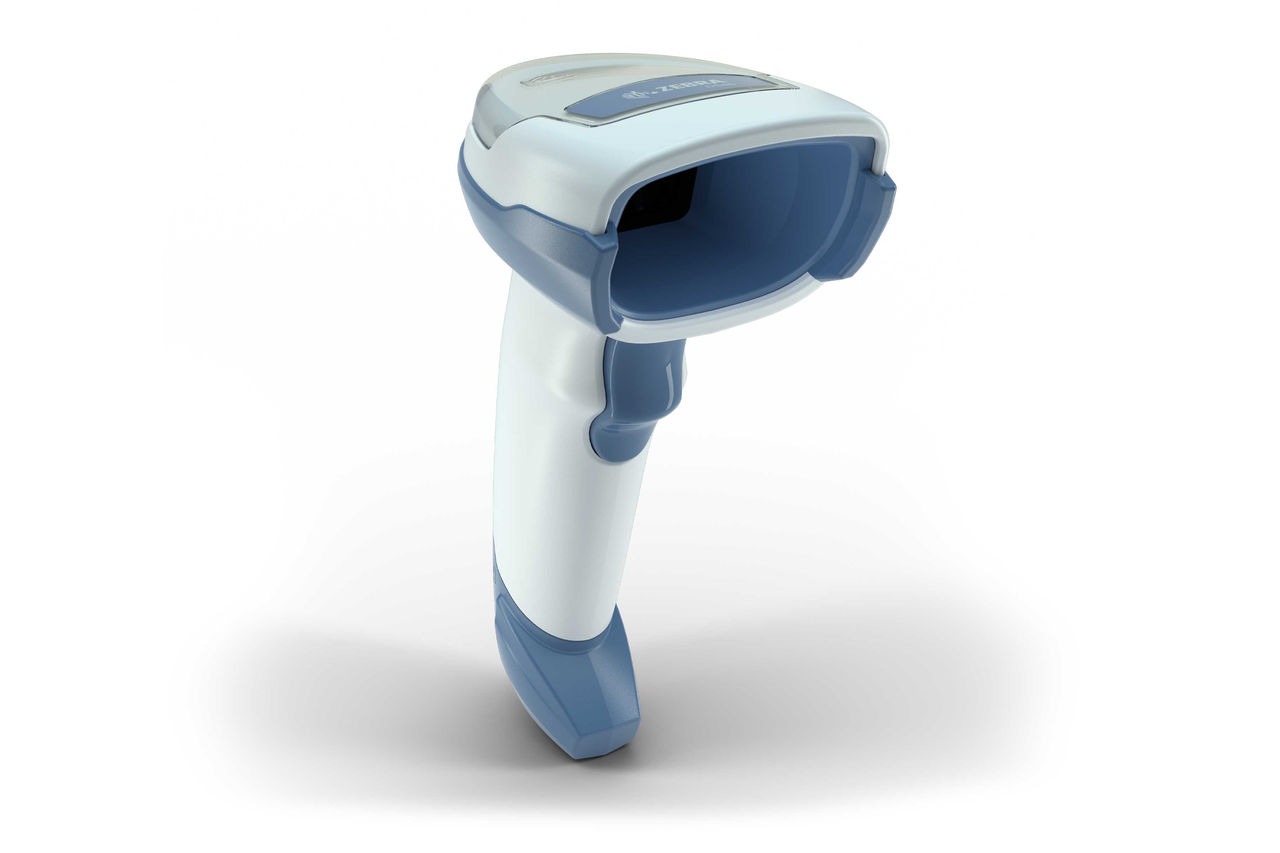

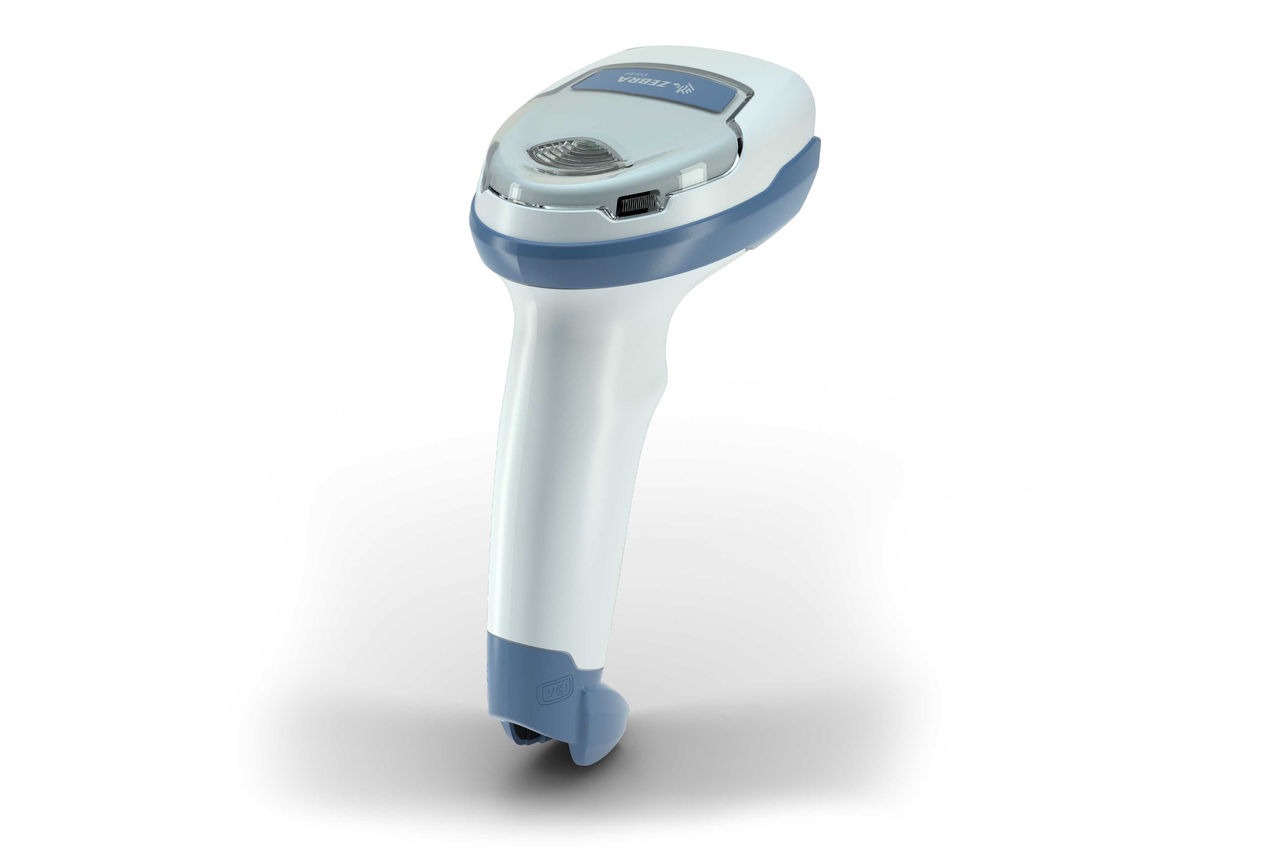

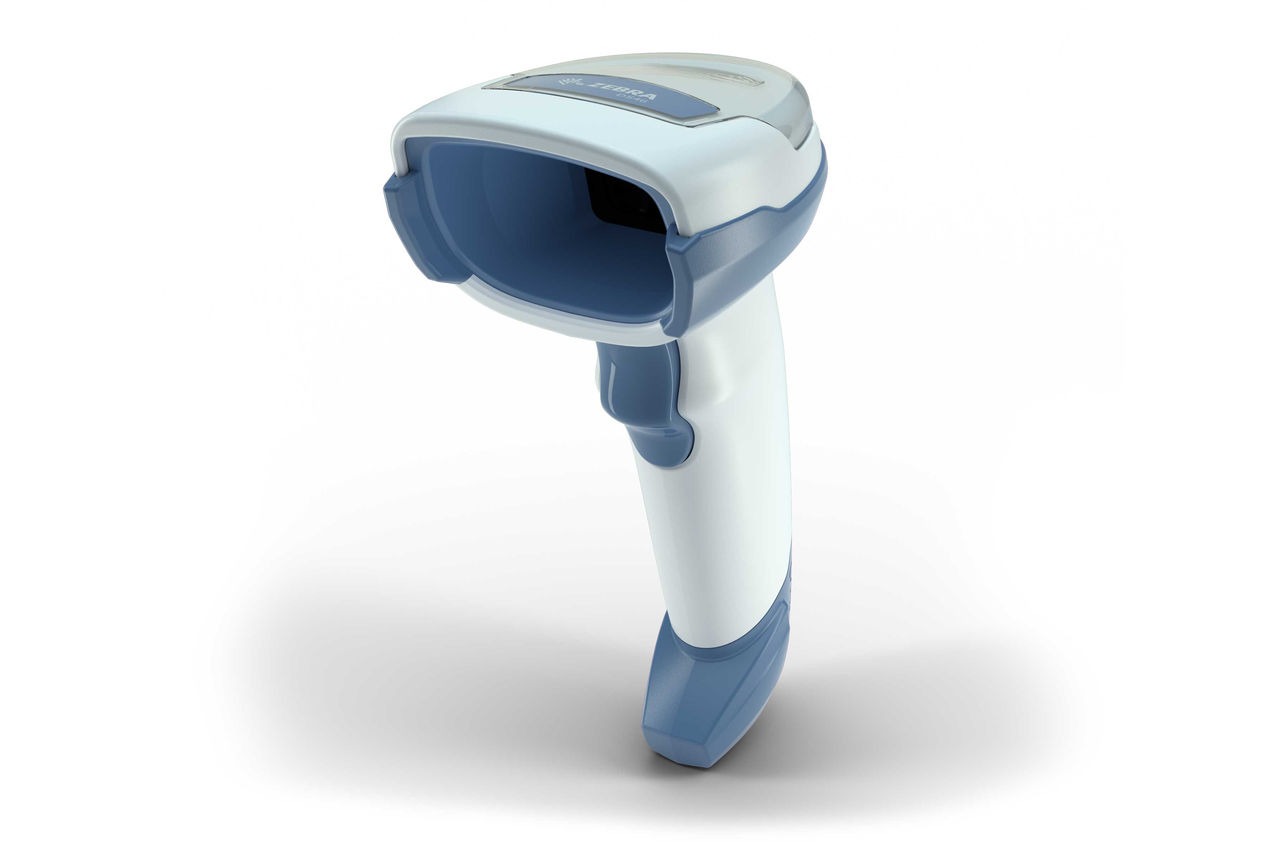

The Zebra DS4608-HC brings fast 1D and 2D scanning to the bedside, pharmacy, laboratory and admissions desk. It captures barcodes on patient wristbands, medication packaging, specimen tubes and phone screens in a single pass, helping clinicians record the right information for the right patient.
Its healthcare-white housing is built to be wiped down with approved hospital disinfectants many times a day.
Designed for patient care areas
A circular true-green LED aimer is easy to see and is an alternative to laser aimers, which are not advised in areas such as the NICU. Haptic vibration and an adjustable beeper let staff confirm scans without disturbing sleeping patients.
Reliable scanning on difficult codes
A 1280 x 800 sensor and Zebra’s imaging technology read small, curved, damaged and low-contrast codes, including those on IV bags, vials and wristbands. Images and documents can also be captured and exported as JPEG, BMP or TIFF.
Tough and easy to manage
The DS4608-HC survives repeated 1.8 m drops and 2,000 tumbles and is IP52 sealed against spills. It connects by USB, RS232 or IBM 46XX and is configured and updated remotely with Zebra’s 123Scan and Scanner Management Service.
Key features
- Disinfectant-ready healthcare-white housing
- Eye-safe green LED aimer and warm white illumination
- Haptic vibration and adjustable beeper for quiet wards
- Reads 1D and 2D codes on wristbands, vials, labels and screens
- 1.8 m drop, 2,000 tumbles and IP52 sealing
- USB, RS232 and IBM 46XX interfaces
- Five-year Zebra warranty
Technical specifications
| Scanner type | Corded handheld 1D/2D area imager |
|---|---|
| Image sensor | 1280 x 800 pixels |
| Field of view | 35° H x 22° V (nominal) |
| Aimer / illumination | 528 nm green LED aimer; 2 warm white LEDs |
| Symbologies | 1D incl. Code 128, Code 39, UPC/EAN, GS1 DataBar; 2D incl. DataMatrix, QR, PDF417, Aztec, MaxiCode |
| Interfaces | USB, RS232, TGCS (IBM) 46XX over RS485 |
| User indicators | Direct Decode Indicator, good-decode LEDs, beeper, haptic vibration |
| Dimensions | 16.5 x 6.7 x 9.8 cm |
| Weight | 161.9 g |
| Sealing and drops | IP52; 1.8 m drops; 2,000 tumbles |
| Operating temperature | 0 °C to 50 °C |
| Medical EMC | IEC/EN 60601-1-2 |
What’s in the box
DS4608-HC scanner. Host cables, the gooseneck Intellistand and cup holder are ordered to suit your workstation; tell us your connection and we will supply the matching kit.
Ideal for
Bedside medication administration, specimen collection and laboratories, hospital pharmacies, patient admissions and registration, and clinics scanning patient wristbands and Emirates ID barcodes.
Why buy the Zebra DS4608-HC from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live. Protect your investment with our Zebra AMC and repair service, or contact our team for a project quote and volume pricing.
