Description

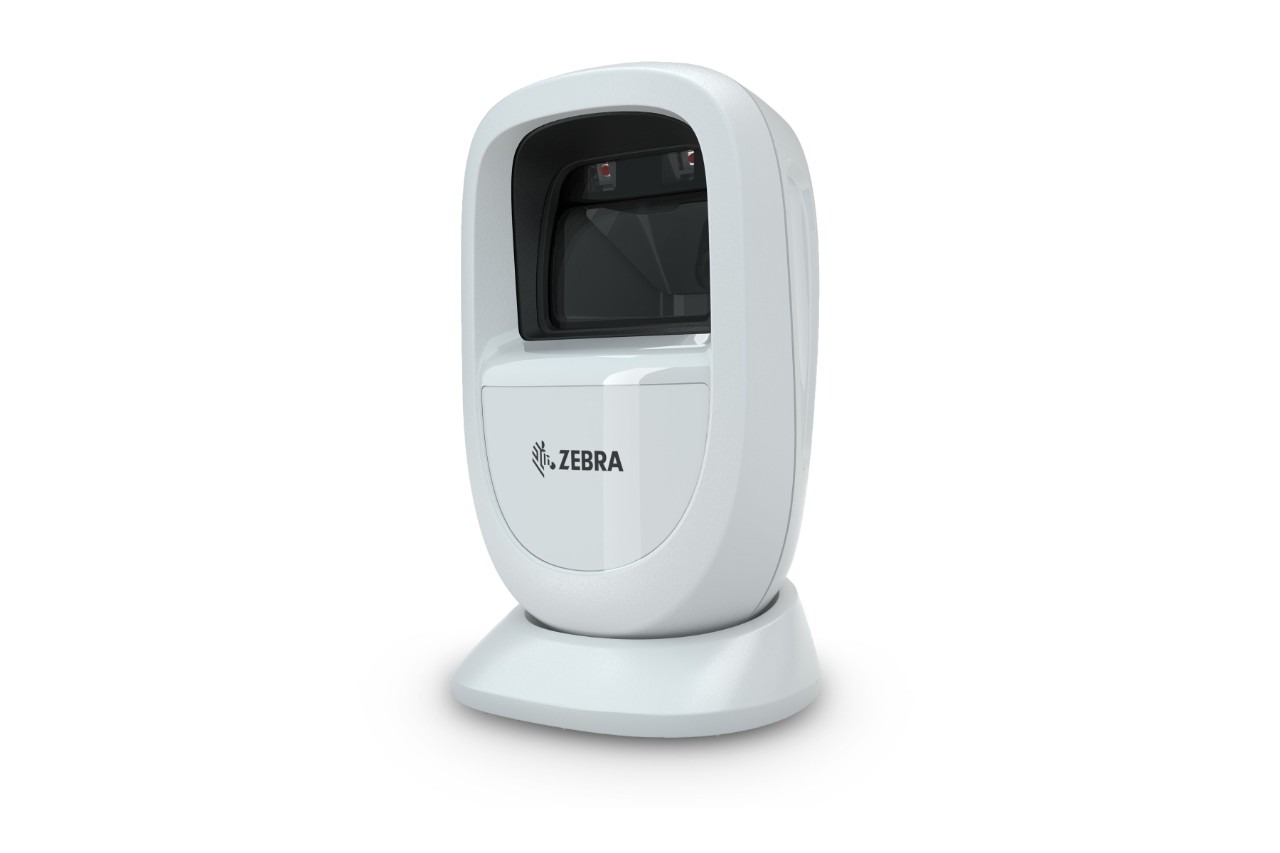

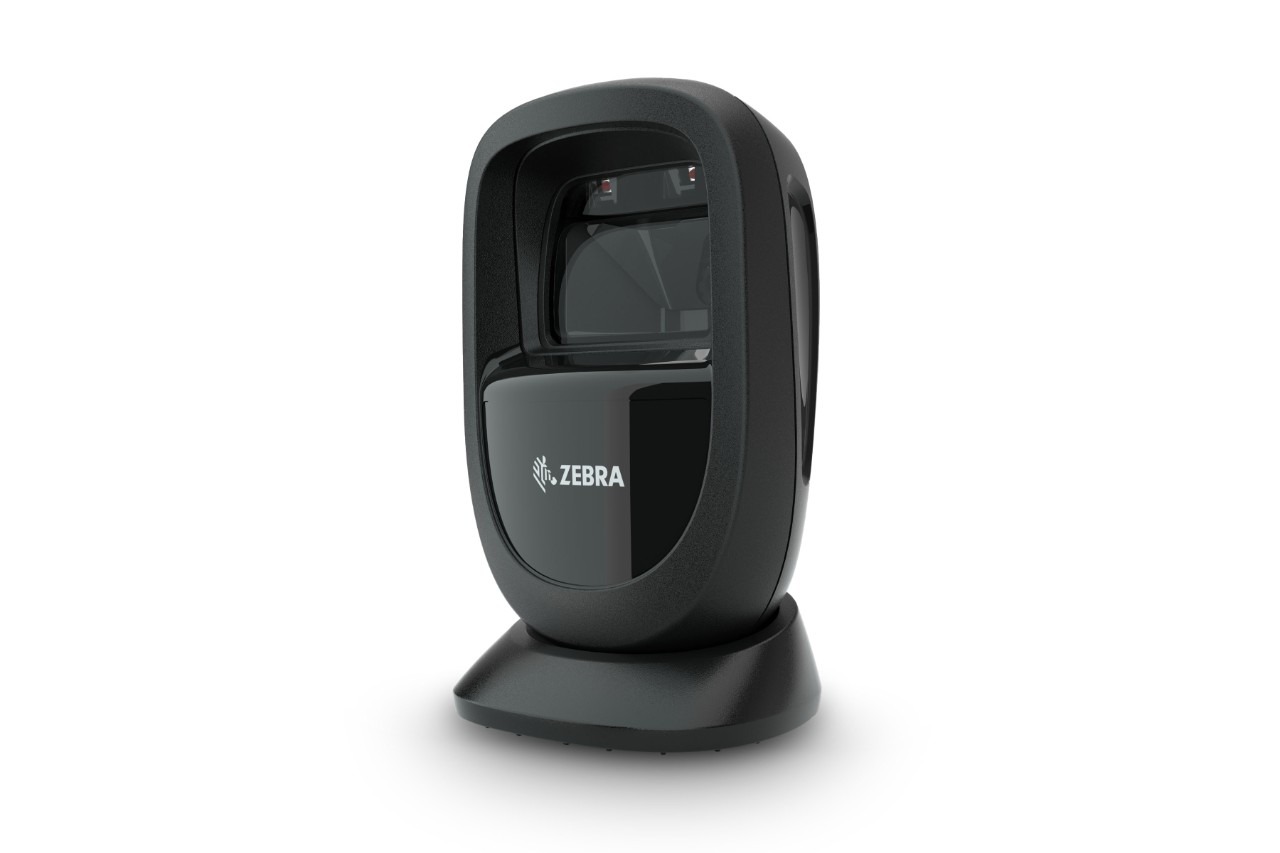

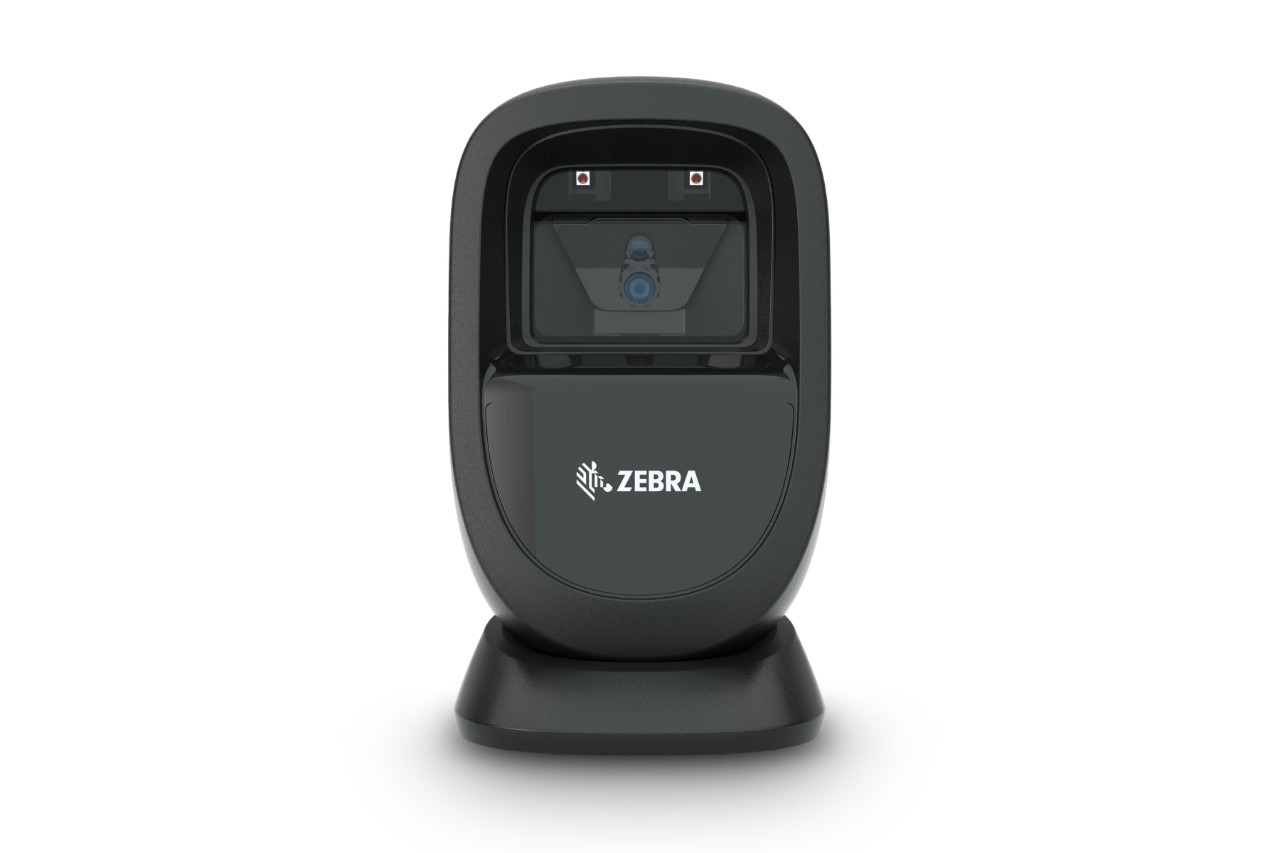

The Zebra DS9300 Series (DS9308) is a small presentation imager built for checkout counters where space is tight and speed matters. Customers or cashiers simply hold an item, a printed coupon or a phone screen in front of the scanner, and the barcode is captured instantly, so queues keep moving at supermarkets, pharmacies, convenience stores, cafés and ticket desks.
An 800 MHz processor, a megapixel sensor and Zebra’s PRZM Intelligent Imaging decode damaged, faded and high-density codes, while the curved exit window cuts glare from glossy packaging and phone screens.
Fast, hands-free scanning at the point of sale
Swipe speeds reach 120 in. (305 cm) per second for a 13 mil UPC in optimised mode, and a 52° x 33° field of view means items rarely need to be repositioned to find the sweet spot. Adaptive LED illumination dims when idle and switches on when a barcode is presented.
Built for all-day counter use
The DS9300 is designed to survive multiple 1.5 m drops to concrete and 1,000 tumbles, and its IP52 sealing, concealed beeper hole and elevated circuitry protect it against dust and everyday spills. Its ratcheting stand tilts from 15° back to 45° forward.
More than barcodes
Intelligent Document Capture turns A6-size documents such as prescriptions, receipts and ID cards into clean images. Multi-Code Data Formatting reads several barcodes in one pass, Preferred Symbol picks the right code from a crowded label, and Checkpoint EAS support lets one pass both scan the item and deactivate its security tag.
Key features
- Reads 1D, 2D, DotCode and dotted DataMatrix codes, on paper or on phone screens
- Up to 120 in./305 cm per second swipe speed with a 52° x 33° field of view
- PRZM Intelligent Imaging for damaged, faded and low-contrast barcodes
- IP52 sealing, 1.5 m drop and 1,000-tumble rating
- Intelligent Document Capture, Multi-Code Data Formatting and Preferred Symbol
- Backwards compatible with DS9208 cables and power supplies; managed with Zebra 123Scan and SMS
Technical specifications
| Model | DS9308 (DS9300 Series), standard range (SR) |
|---|---|
| Scan type | 1D/2D area imager, presentation and trigger modes |
| Image sensor | 1280 x 800 pixels |
| Field of view | 52° H x 33° V (nominal) |
| Swipe speed | Up to 120 in./305 cm per second (13 mil UPC, optimised mode) |
| Symbologies | 1D incl. UPC/EAN, Code 128, Code 39, GS1 DataBar; 2D incl. QR, DataMatrix, PDF417, Aztec, MaxiCode, DotCode; OCR-A/B, MICR |
| Minimum resolution | Code 39/128: 3 mil; DataMatrix/QR: 5 mil |
| Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Dimensions | 14.5 x 8.6 x 8.3 cm (H x W x D) |
| Weight | 318 g |
| Sealing and durability | IP52; multiple 1.5 m drops to concrete; 1,000 tumbles at 0.5 m |
| Operating temperature | 0 °C to 50 °C, 5% to 95% RH non-condensing |
| Colours | Midnight Black, Alpine White |
| Warranty | 3 years from shipment (Zebra hardware warranty) |
What’s in the box
DS9300 Series scanner with integrated tilting stand. Kit configurations also include a host cable (USB is the most common); tell us your POS or PC connection and we will supply the matching kit, plus optional multi-mount or locking-mount brackets.
Ideal for
Supermarket and convenience store checkouts, pharmacies, fashion boutiques, quick-service restaurants and cafés, cinema and event ticketing, and any counter that scans mobile coupons, loyalty QR codes or e-tickets.
