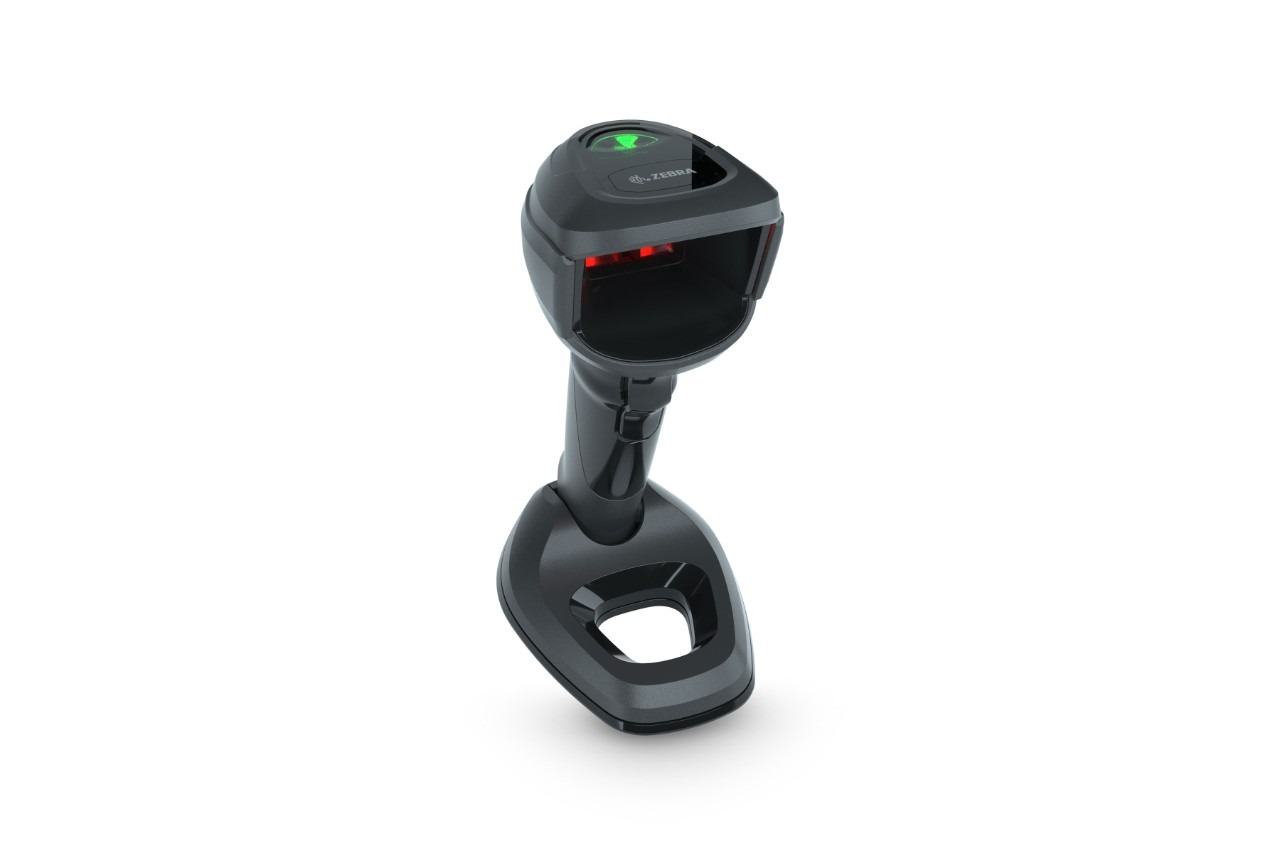

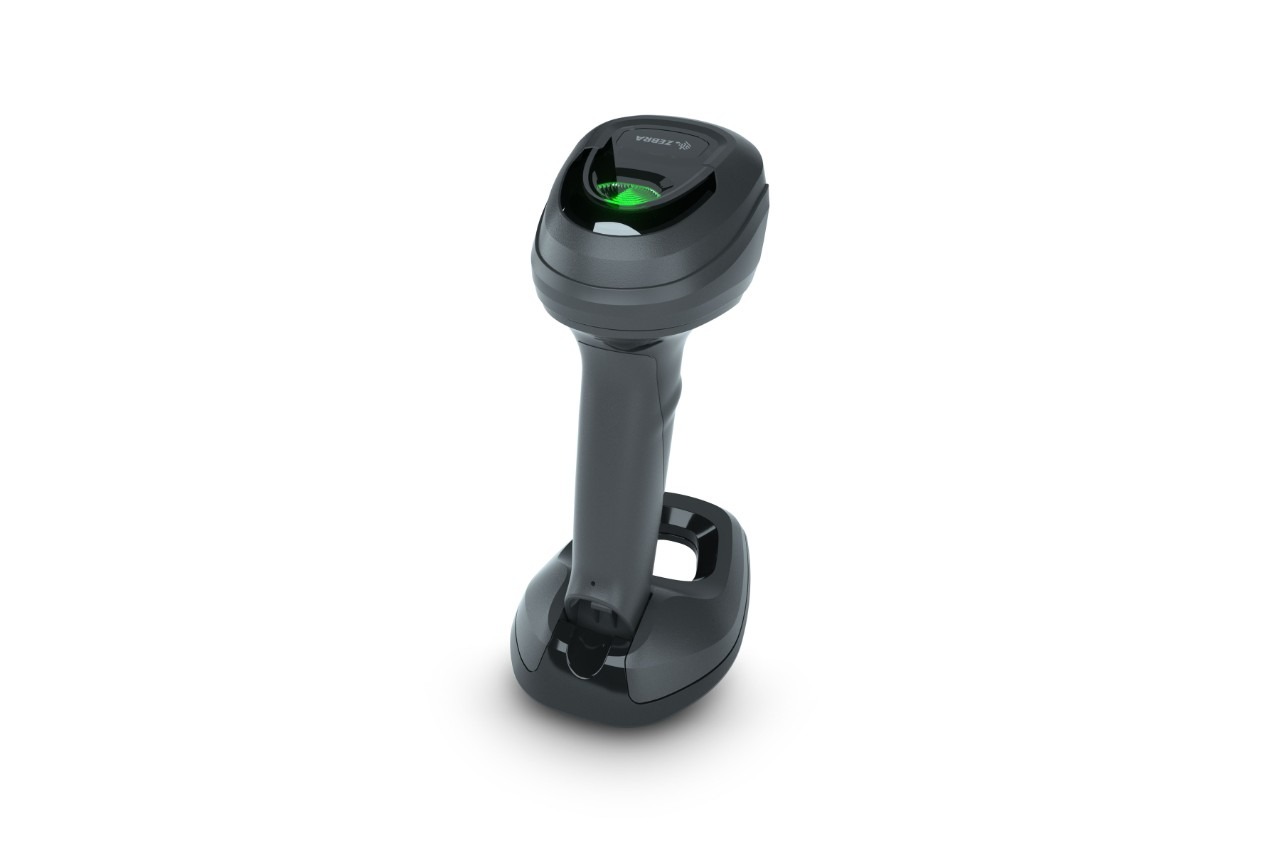

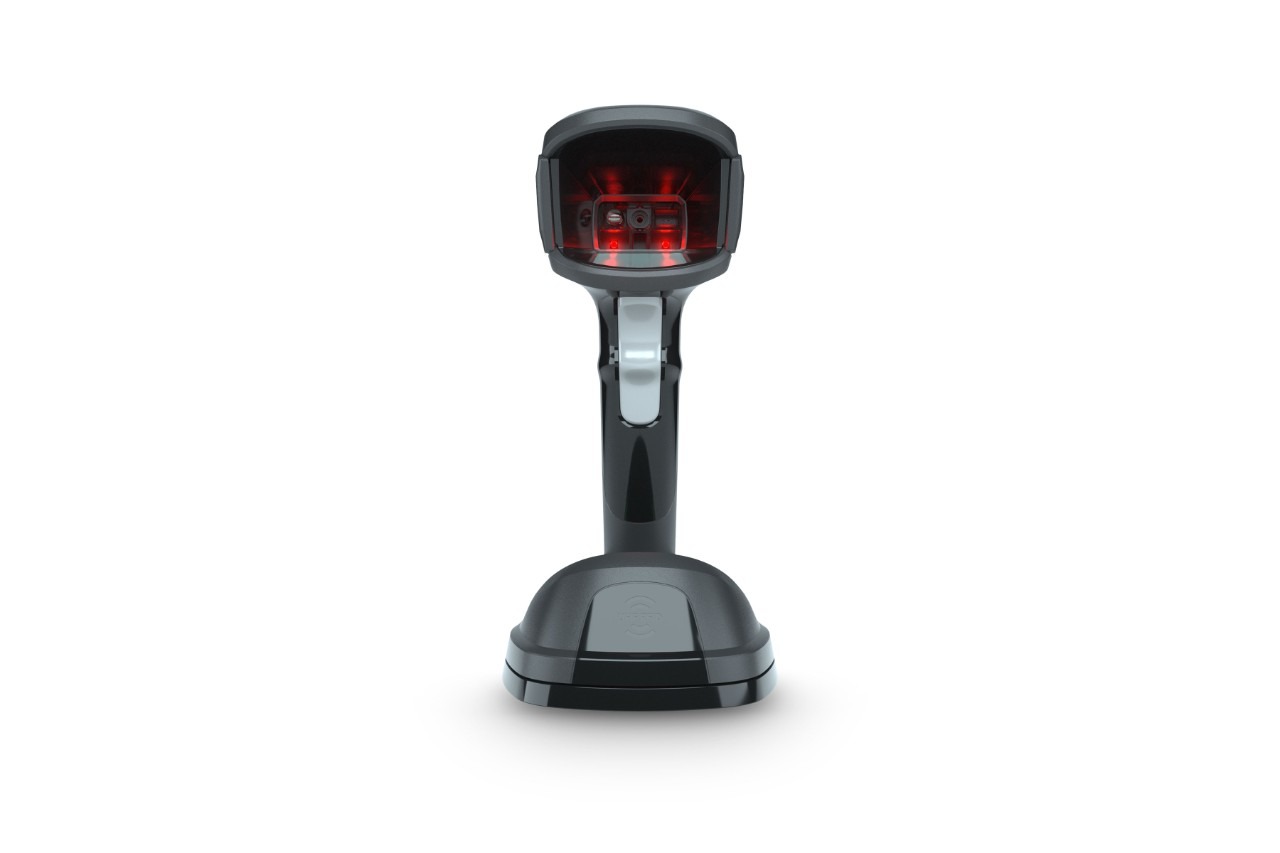

Zebra DS9900 SERIES CORDED HYBRID IMAGER FOR RETAIL

In stock

BOOST PRODUCTIVITY AT THE POINT OF SALE WITH THE ULTIMATE IN PERFORMANCE AND DESIGN

The point of sale is your last opportunity to make a good impression. With the DS9900 Series, you can give shoppers the checkout experience they expect — short lines, a speedy transaction and attentive service. A one-of-a-kind hybrid design provides maximum flexibility, offering both handheld and hands-free scanning. While other products are handheld scanners retrofitted with a base, Zebra’s award-winning Industrial Design team created the DS9900 Series from the ground up for both handheld and hands-free use. You get Zebra’s industry-leading scanning technology, seamless switching between modes and superior ease of use, along with a wide range of innovative features that boost productivity. An RFID model combines a barcode scanner and RFID reader to extend the benefits of RFID to your point of sale. Empower your checkout stands with the DS9900 Series Hybrid Presentation Imager — the ultimate in performance and design.

Additional information

Features

Hybrid ergonomics
Capture multiple barcodes with one press of the scan trigger
Two scanners in one
Streamline data collection with OCR
Doubles as a document scanner
Easy application development
Deactivate EAS tags while scanning
Designed to survive spills and drops
Commission RFID tags on returns and more
Identify poor-performing barcodes
Single out one barcode from many

RFID/Barcode Scanner

EPC Class 1 Gen2; EPC Gen2 V2; ISO-18000-63
US: 902 – 928 MHz
EU: 865 – 868 MHz
Japan: 916 – 923 MHz

1D
Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes

OCR
OCR-A, OCR-B, MICR, US Currency
Digimarc Digimarc barcodes

Resolution

Code 39 – 3.0 mil
Code 128 – 3.0 mil*
DataMatrix – 6.0 mil
QR Code – 6.0 mil

Read Range

Code 39: 3 mil 1.1 in./2.8 cm to 3.0 in./7.6 cm
Code 128: 3 mil 1.4 in./3.6 cm to 3.5 in./8.9 cm
Code 128: 5 mil 1.0 in./2.5 cm to 7.1 in./18.0 cm
PDF 417: 6.7 mil 1.2 in./3.0 cm to 8.0 in./20.3 cm
UPC: 13 mil (100%) 0 in./0 cm to 24.7 in./62.7 cm
Data Matrix: 10 mil 1.3 in./3.3 cm to 9.3 in./23.6 cm
QR: 20 mil 1.0 in./2.5 cm to 18.0 in./45.7 cm

Communication

USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
