Description

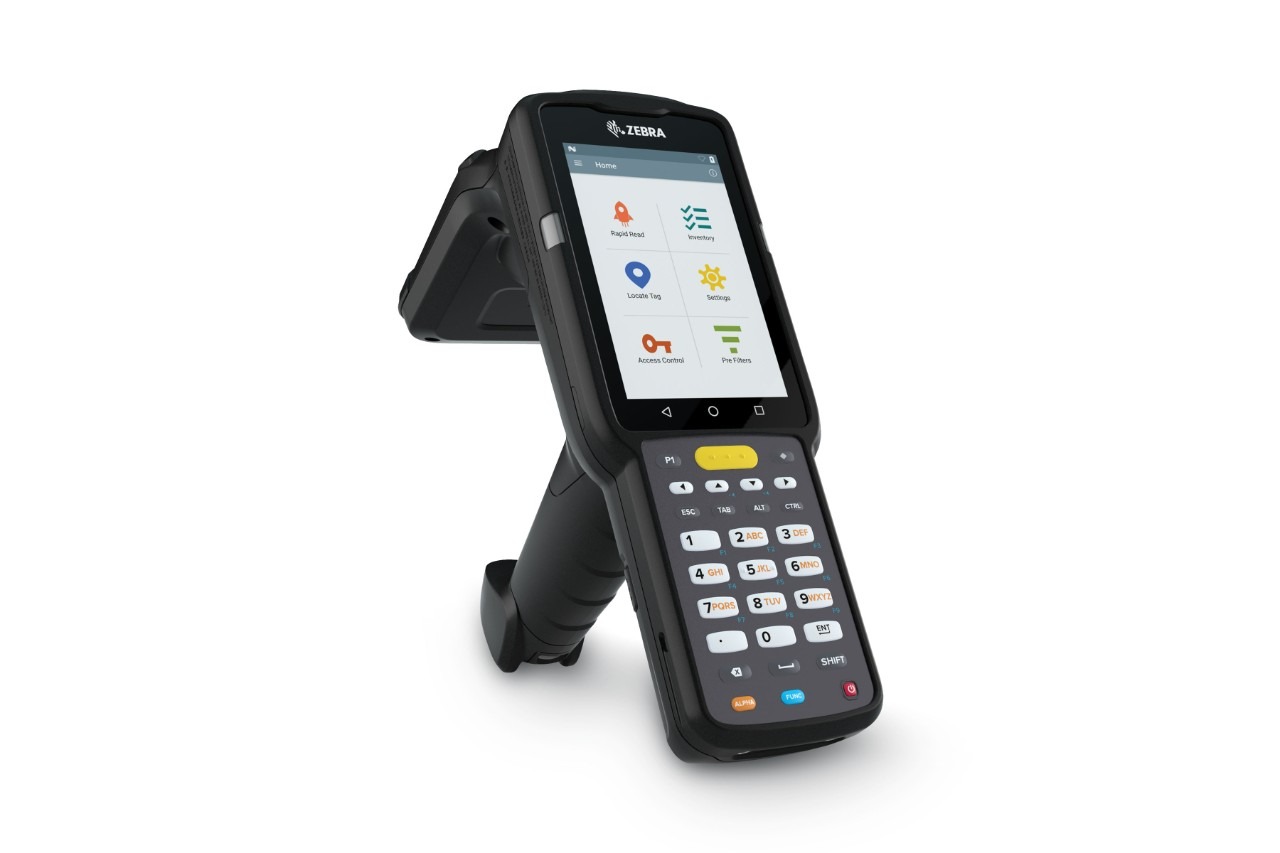

The Zebra MC3330xR combines Zebra’s MC3300x keypad mobile computer with an integrated UHF RFID reader in one pistol-grip device. Staff can count inventory by RFID, then scan barcodes and enter data on the same device, without pairing an external sled.
It runs Android (upgradeable to Android 14) on a Snapdragon 660 octa-core processor with 4 GB RAM and 32 GB flash.
Fast, accurate RFID counts
Zebra’s proprietary radio and an integrated circularly polarised antenna read more than 900 tags per second with a nominal range of 12 m, and support EPC Gen2 V2 and Gen2X. Output power is adjustable from 0 to 30 dBm to focus or widen the read field.
Keys, scanning and a big battery
A 4-inch Gorilla Glass touchscreen works with gloves or a stylus, and 29, 38 or 47-key keypads suit data-entry-heavy tasks. An SE4770 imager reads 1D and 2D barcodes, and the 7,000 mAh PowerPrecision+ battery is hot-swappable for multi-shift use.
Rugged and enterprise-ready
The MC3330xR survives repeated 1.5 m drops and 1,000 tumbles, is IP54 sealed and works from -20 °C to 50 °C. Wi-Fi 5 with 2×2 MU-MIMO, Bluetooth 5.0 and Workforce Connect push-to-talk keep teams connected.
Key features
- Integrated UHF RFID reader, 900+ tags/sec, 12 m nominal range
- EPC Gen2 V2 and Gen2X support
- SE4770 1D/2D imager with LED aimer
- Android 14 upgradeable, Snapdragon 660, 4 GB / 32 GB
- 4-inch touchscreen with 29, 38 or 47-key keypad options
- 7,000 mAh hot-swappable PowerPrecision+ battery
- IP54, 1.5 m drop and 1,000-tumble rating
Technical specifications
| RFID | EPC Class 1 Gen2, Gen2 V2, ISO 18000-63; Gen2X; 900+ tags/sec; 12 m nominal range |
|---|---|
| RFID power / antenna | 0 to +30 dBm; integrated circularly polarised antenna; 865-928 MHz |
| Barcode | SE4770 imager with LED aimer |
| Display | 4-inch WVGA (800 x 480), Gorilla Glass touch panel |
| Keypad | 29-key numeric, 38-key function numeric or 47-key alphanumeric |
| Processor / memory | Qualcomm Snapdragon 660 octa-core 2.2 GHz; 4 GB RAM / 32 GB flash; microSD up to 512 GB |
| Operating system | Android, upgradeable to Android 14 |
| Wireless | Wi-Fi 802.11a/b/g/n/ac 2×2 MU-MIMO; Bluetooth 5.0 BLE |
| Battery | 7,000 mAh PowerPrecision+ Li-ion, hot-swap |
| Dimensions / weight | 164 x 75 x 211 mm; 680 g with handstrap |
| Sealing and drops | IP54; multiple 1.5 m drops; 1,000 tumbles |
| Operating temperature | -20 °C to 50 °C |
What’s in the box
MC3330xR handheld with 7,000 mAh battery and handstrap. Single-slot, 4-slot and 5-slot cradles and spare batteries are ordered to suit your fleet; we supply and configure complete kits.
Ideal for
Retail stock counts and replenishment, apparel RFID programmes, warehouse receiving and cycle counts, asset and IT equipment tracking, and healthcare inventory.
Why buy the Zebra MC3330xR from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live. Protect your investment with our Zebra AMC and repair service, or contact our team for a project quote and volume pricing.
