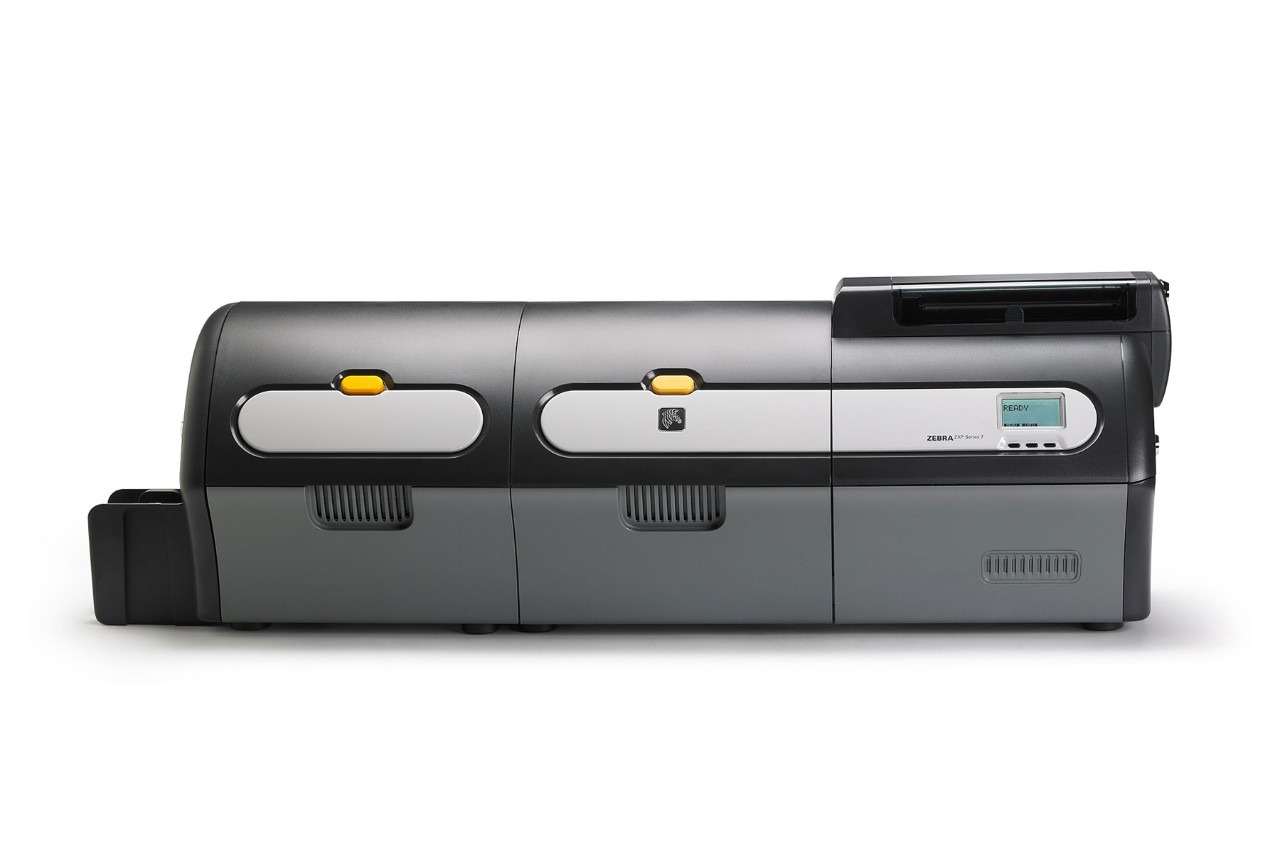

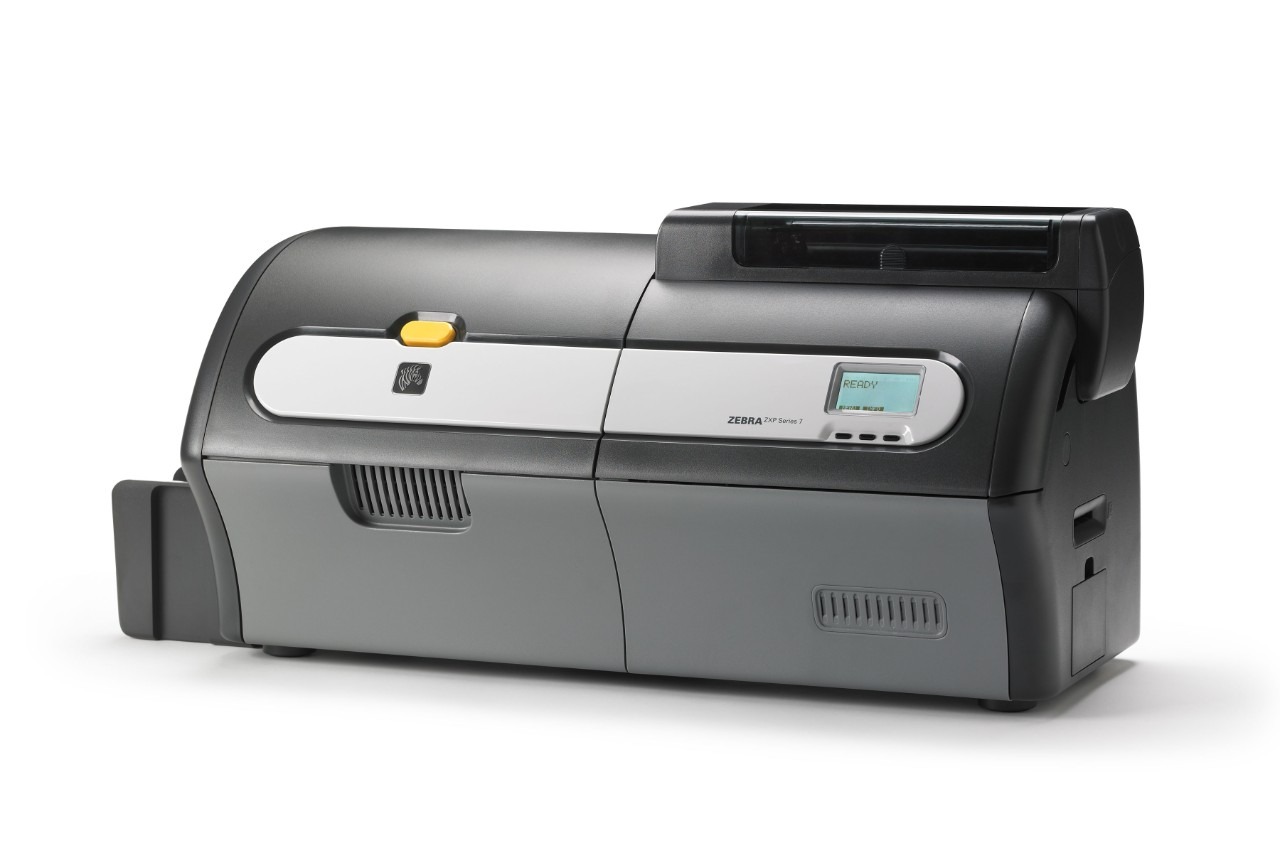

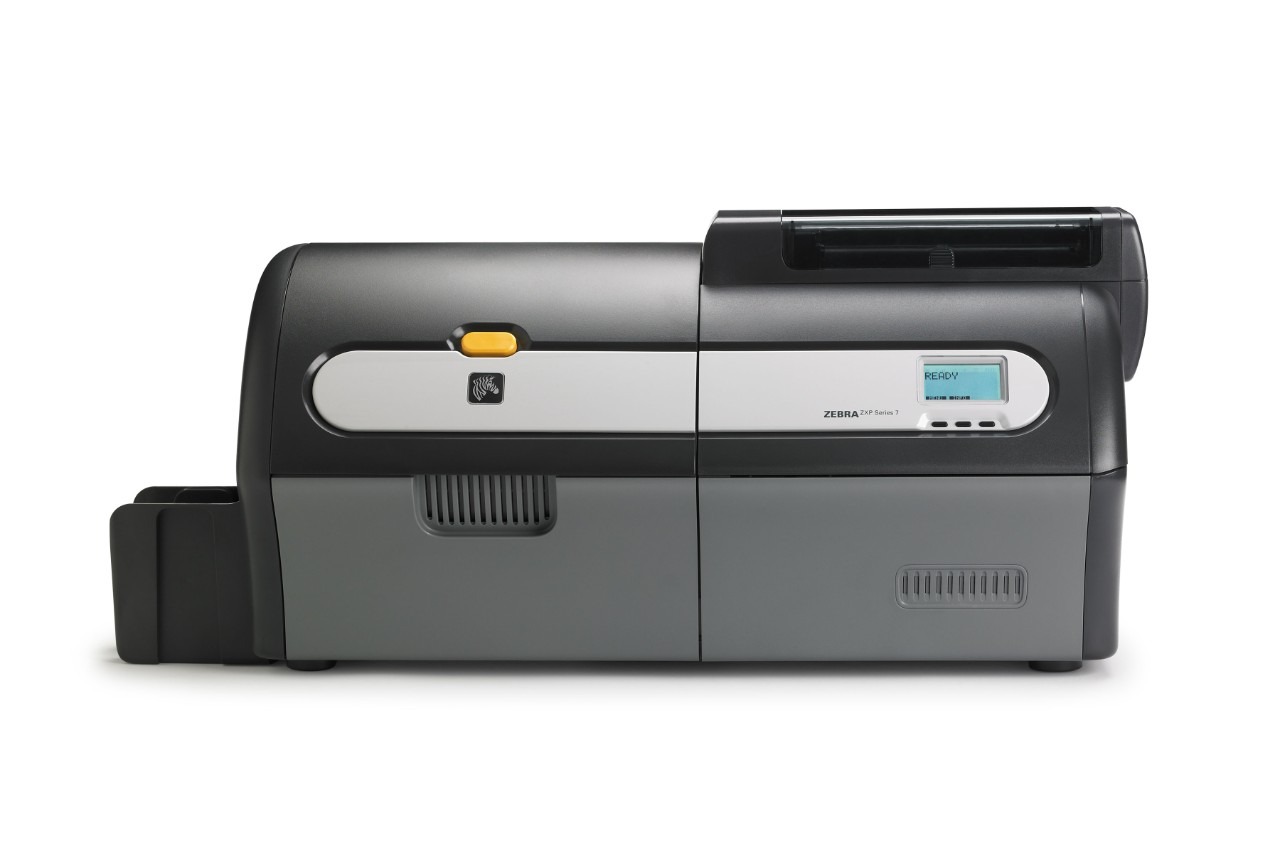

Zebra ZXP Series 7 Card Printer

In stock


Using the latest in Zebra card-printing technology, the ZXP Series 7 provides high-quality card printing. The ZXP Series 7 printer has an innovative design. It automatically adjusts to the thickness of the card, and ribbon loading is easy. With colour coded guides and a clear LCD control panel, it’s simple for anyone to use.

For partners and customers who would like to use a Zebra card printer with their smartcard encoding application, please contact your Account Manager or a Zebra approved smartcard ISV for integration support.

Additional information

Print Method

• Color dye sublimation or monochrome thermal-transfer printing
• Single- and dual-sided printing
• Near photographic print quality
• Edge-to-edge printing on standard CR-80 media
• Simultaneous printing, encoding, and laminating capability
• One-pass single- and dual-sided wasteless lamination
• 1375 cards / hour monochrome single-sided or 555 cards / hour dual sided printing
• 300 cards / hour full-color YMCKO single-sided printing
• 225 cards / hour full-color YMCKOK dual-sided printing
• 270 cards / hour full-color YMCKO single-sided printing with lamination

Standard Features

• 300 dpi/11.8 dots per mm print resolution
• USB 2.0 and Ethernet 10/100 connectivity
• Microsoft® Windows Certified drivers
• 15-card reject hopper (30 mil)
• ZXP Series 7 and Series 7 Pro: 250-card input capacity feeder (30 mil)
• ZXP Series 7: 100-card output hopper (30 mil)
• ZXP Series 7 Pro: 250 First-in, First-out mechanical output hopper
• Single-card feed capability
• ix Series intelligent media technology
• 21-character x 6-line LCD operator display with configurable soft keys
• Kensington® physical lock slot
• Two-year limited warranty on printer and printhead

Card Specifications

• Card thickness: 10 – 50 mil (0.25 – 1.27 mm)
• Card thickness for lamination: 30 mil (0.76 mm)
• Card size: CR-80, ISO 7810 format, Type ID-1
• Card material: PVC and composite, ABS cards, PET, PET-G, PET-F, PETix, and Teslin® composite
• Technology cards: contact and contactless smart cards
• Specialty cards: adhesive backed, signature panel, transparent cards with IR-blocker

Communication Interface

USB 2.0
USB supports plug-and-play printer identification
10/100 Ethernet
802.11b/g wireless option

Optional Features

• Single and dual-sided laminator
• Optional contact/contactless SmartCard encoding option module
• FIPS 201 compliant dual-sided laminator (only for North America)
• Lockable enclosures and card feeder
• Extended product warranty programs
• 802.11b/g wireless connectivity
• 1D barcode scanner
• Duo-Print upgrade kit

Encoding Options and Specifications

• Magnetic stripe encoder — AAMVA and ISO 7811 (new and pre-encoded, tracks 1, 2, and 3, high and low coercivity)
• ISO 7816 Smart Card Contact Station for third-party external contact encoders
• Combined MIFARE® ISO 14443 A and B (13.56MHz) contactless and ISO 7816 Contact Encoder with EMV level 1 certification, and PC/SC compliance
• EPCglobal® Gen 2 UHF RFID encoder
