Avery Dennison® Monarch® Tabletop Printer 2™

In stock

Built for Compact Efficiency

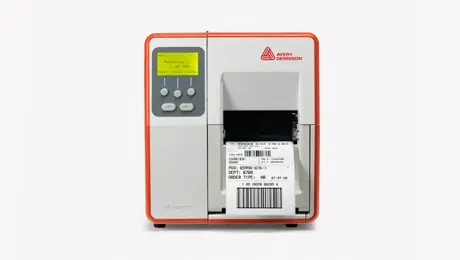

The Avery Dennison® Monarch® Tabletop Printer 2 (ADTP2™) is a high performance thermal printing and RFID encoding solution in a compact form factor.

Ideal for label and tag production in a retail instore application, exception label and tag production in a distribution center, or any printing application that requires high performance in a small space.

Additional information

Print Method

Thermal Transfer or Direct Thermal print method

Memory

SDRAM: 64 MB
Flash: 64 MB

Communication Interface

USB 2.0 Device Port: 1 port, B Receptacle.
USB 2.0 Host Port: 2 ports, A Receptacle.
RS-232C Serial Port: DB-9F, DTE pin out, 115.2K baud max
communications speed.
Wired Networking: 802.3u Ethernet, 10/100 Mbps, RJ-45 connector.
Wireless Networking: Optional, 802.11 a/b/g/n dual band (2.4 GHz
& 5 GHz), WPA2, 802.11i compliant.

Print Speed

2.5 ips (64 mm/sec) – default for serial bar codes with narrow
elements less than 3 dots.
4 ips (102 mm/sec) – 203 dpi serial bar codes with narrow elements of 3 dots or greater.
6.0 ips (152 mm/sec) – default for parallel bar codes , max for label
peel and liner takeup.
8.0 ips (203 mm/sec)

Print Resolution

203 dpi (8 dots / mm) or 300 dpi (12 dots / mm)

Maximum Print Width

4.0" x 16.0" (102 mm x 406 mm) with the 203 dpi printhead.
4.0" x 13.0" (102 mm x 330 mm) with the 300 dpi printhead.
Larger images (up to 16 feet) can be printed using continuous
supply and reallocating memory.

RFID

RFID ENCODER
Optional, EPCglobal UHF Class 1 Gen 2 / ISO 18000-63 (formerly
18000-6C). Supports worldwide UHF RFID frequency ranges.
RFID READER
Optional, Integrated post-encode-and-print reader module. Validates actual encoded data against requested data
