Description

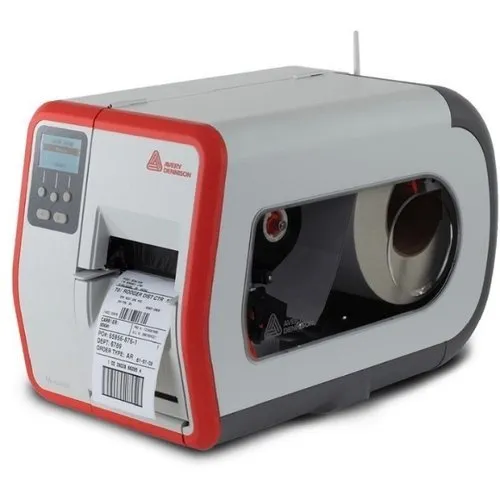

The Avery Dennison Monarch Tabletop Printer 1 (ADTP1) prints thermal direct and thermal transfer labels and tags for carton and pallet labels, retail compliance labels, item-level labels, hang tags, work-in-process and asset tracking.
With optional RFID it encodes UHF tags while printing, and an integrated verifier checks every tag, making it a strong choice for retailers and suppliers moving to item-level RFID.
Non-stop RFID print and encode
Avery Dennison’s patented non-stop print/encode technology is up to three times faster than traditional stop-to-encode printers. The optional integrated RFID EPC verifier validates encoded data against the requested data, so defective tags are caught before they ship.
Fewer bad barcodes and chargebacks
Barcode Assured dot-shifting autocorrect helps avoid unscannable barcodes, and an optional barcode verifier overstrikes bad labels. This helps suppliers meet retailer compliance requirements and avoid chargebacks.
Less downtime
The ADTP1 holds supply rolls up to 238 mm diameter (200 m standard, 300 m with EcoCapacity+ thin-liner labels), cutting roll changes by as much as half. A three-colour backlit display shows printer status at a glance, and internal liner take-up keeps the area tidy.
Key features
- Thermal direct and thermal transfer printing
- Print speeds up to 12 ips (203 dpi); 300 dpi option
- Optional non-stop UHF RFID encoding with integrated verifier
- Barcode Assured autocorrect and optional barcode verifier
- Large supply capacity: up to 300 m with EcoCapacity+
- USB, RS-232 and Ethernet; optional dual-band Wi-Fi
- ENERGY STAR certified models
Technical specifications
| Print method | Thermal direct or thermal transfer |
|---|---|
| Resolution | 203 dpi standard; 300 dpi optional |
| Print speed | 2.5-12 ips (10 and 12 ips with 203 dpi only) |
| Supply width / length | 19.1-108 mm wide; 8-445 mm long |
| Supply roll | Up to 238 mm OD on 76 or 102 mm core; 200 m standard, 300 m EcoCapacity+ |
| RFID | Optional EPC Class 1 Gen 2 / ISO 18000-63 encoder and verifier, worldwide UHF |
| Barcodes | 1D incl. UPC/EAN, GS1-128, Code 128, GS1 DataBar; 2D incl. QR, Data Matrix, PDF417, Aztec |
| Interfaces | USB 2.0 device and 2 x host, RS-232, 10/100 Ethernet; optional 802.11a/b/g/n Wi-Fi |
| Dimensions | 351 x 292 x 546 mm (H x W x D) |
| Weight | 16.4 kg |
| Power | 100-240 V AC, 50/60 Hz |
| Warranty | 1 year parts and labour; printhead 1 million inches or 6 months |
What’s in the box
ADTP1 printer with power cord. Labels, tags, ribbons and RFID inlays are ordered separately; we supply and configure the right media and RFID settings for your application.
Ideal for
Apparel and retail suppliers encoding RFID tags, distribution centres printing carton and pallet labels, retail compliance labelling, store back rooms and work-in-process tracking.
Why buy the Avery Dennison ADTP1 from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live. Protect your investment with our annual maintenance contract (AMC), or contact our team for a project quote and volume pricing.
