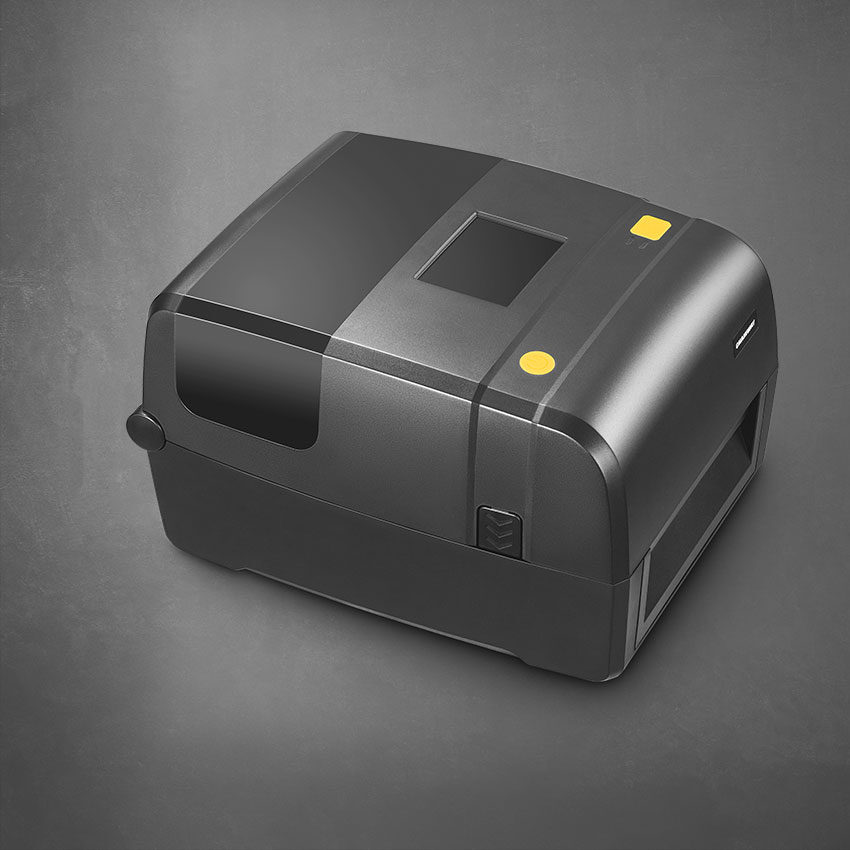

Chainway CP30 RFID Printer Best In Class
The Chainway CP30 is a versatile RFID printer designed to deliver exceptional performance. Both thermal transfer and direct thermal printing. Equipped with a 3.5-inch LCD touchscreen, it offers an intuitive user interface, facilitating seamless operation across various industries.
Key Features:
- High-Quality Printing: The CP30 supports resolutions of 203dpi and 300dpi, with maximum print speeds of 8 inches per second (203dpi) and 6 inches per second (300dpi), ensuring crisp and clear output for RFID tags, barcodes, invoices, and wristbands.
- Advanced RFID Encoding: Integrated with a UHF RFID module operating between 860-928MHz and compliant with EPC C1G2 (ISO18000-6C) standards, the CP30 ensures precise and efficient encoding, enhancing tracking and inventory management systems.
- User-Friendly Interface: The 3.5-inch TFT color touch panel LCD provides an intuitive interface, allowing users to navigate settings and functions effortlessly.
- Versatile Connectivity: Standard interfaces include USB, USB host, and Ethernet, with optional Wi-Fi and Bluetooth connectivity, ensuring seamless integration into various operational environments.
- Automatic Printhead Detection: The CP30 automatically identifies printhead resolutions, providing flexibility and convenience for diverse printing needs.
Technical Specifications:
- Printing Method: Thermal transfer / Direct thermal
- Resolution: 203dpi / 300dpi
- Max. Printing Width: 108mm (203dpi) / 106mm (300dpi)
- Max. Printing Length: 2,286mm (203dpi) / 1,524mm (300dpi)
- Media Types: Continuous paper, gap, black mark, punched hole labels
- Media Width: 1″ (25.4mm) – 4.65″ (118mm), including the liner
- Ribbon Types: Wax, Wax/Resin, Resin
- Ribbon Width: 1.18″ (30mm) – 4.33″ (110mm)
- Ribbon Length: 984′ (300m)
- Dimensions: 293mm (L) × 237mm (W) × 180mm (H)
- Weight: 2.9kg
The Chainway CP30 is engineered to meet the diverse printing requirements of industries. such as Industries are asset management, healthcare, warehousing, logistics, and anti-counterfeiting, providing reliable and efficient printing solutions.
