Description

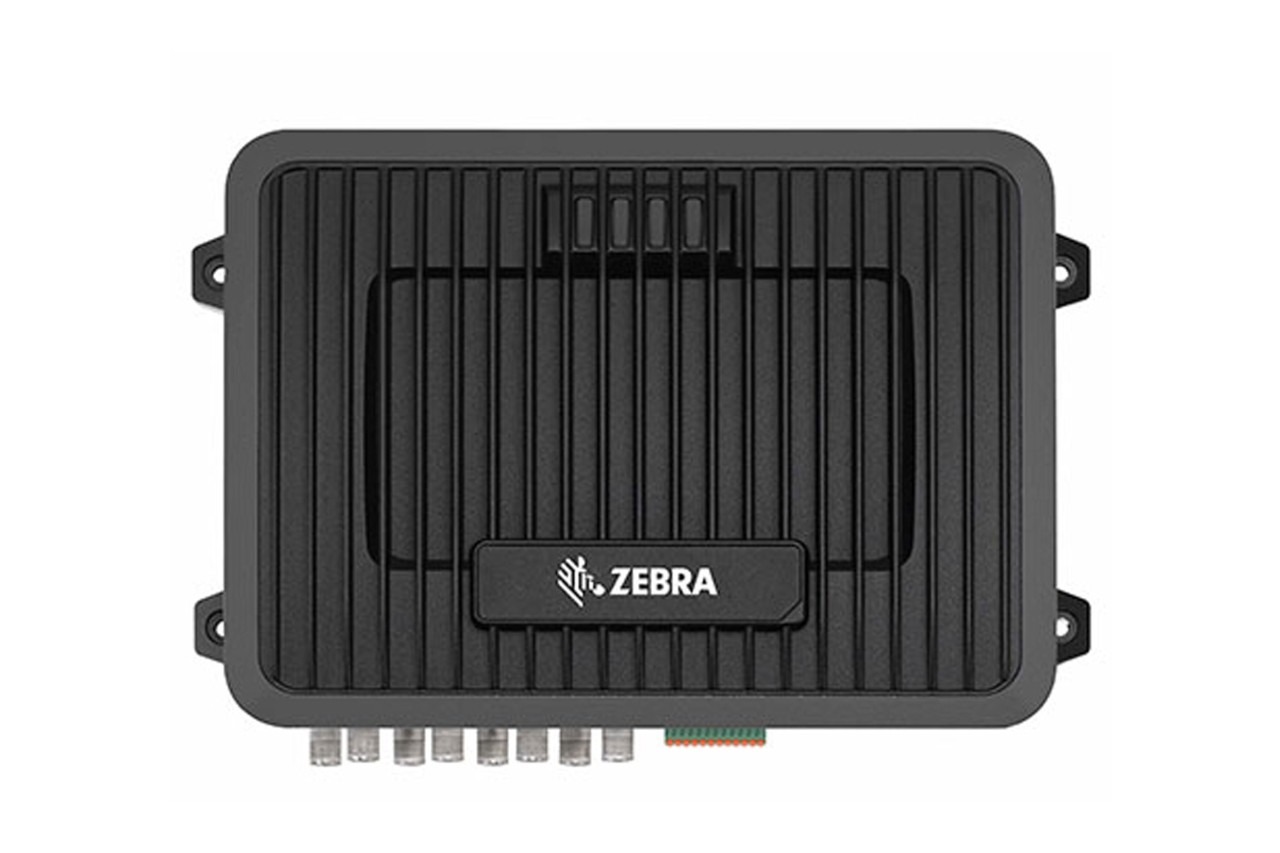

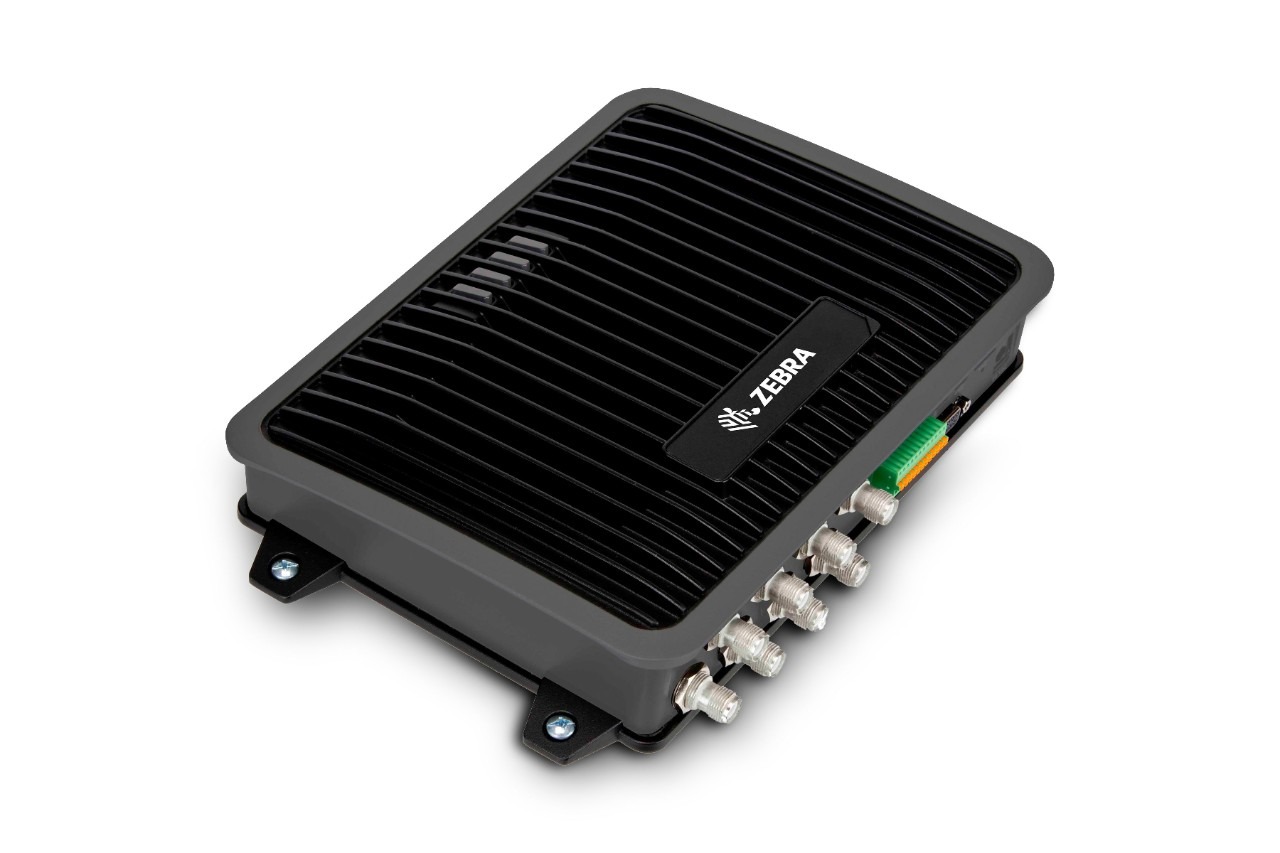

The Zebra FX9600 is designed for demanding fixed RFID points such as warehouse dock doors, conveyors, portals and manufacturing lines. Choose the FX9600-4 with four antenna ports or the FX9600-8 with eight ports to cover wider areas with a single reader.
Its industry-leading -86 dBm receive sensitivity and EPC Gen2 V2 support deliver accurate, reliable reads in dense tag populations and RF-noisy industrial environments.
Built for industrial environments
A die-cast aluminium housing sealed to IP53 protects the reader from dust and moisture, and it operates from -20 °C to 55 °C. Multicolour LEDs show power, activity, status and application state at a glance during installation and operation.
Flexible power and connectivity
Power the FX9600 with PoE, PoE+ or 24 V DC; PoE+ or 24 V delivers the full +33 dBm output. Ethernet, USB host and client, serial and four optically isolated GPIO inputs and outputs connect it to light stacks, sensors and PLCs.
Edge applications and remote management
The Linux platform runs embedded applications in C or Java, and host applications use .NET, C or Java SDKs. Firmware is upgraded remotely, and TLS 1.2 security and IPv6 support fit enterprise networks. It is a direct successor to the FX9500.
Key features
- 4-port (FX9600-4) or 8-port (FX9600-8) models
- -86 dBm receive sensitivity, up to +33 dBm output
- IP53 die-cast aluminium housing, -20 °C to 55 °C
- PoE, PoE+ or 24 V DC power
- Ethernet, USB, serial and 4 in / 4 out isolated GPIO
- Linux platform for embedded C and Java applications
- EPC Gen2 V2 (ISO 18000-63) support
Technical specifications
| Antenna ports | FX9600-4: 4; FX9600-8: 8 (monostatic, reverse-polarity TNC) |
|---|---|
| Air protocol | ISO 18000-63 (EPC Class 1 Gen 2 V2) |
| Frequency | Global reader: 865-868 MHz and 902-928 MHz |
| Receive sensitivity | -86 dBm (monostatic) |
| Transmit power | 0 to +33 dBm (PoE+ or 24 V); 0 to +31.5 dBm (PoE) |
| Connectivity | 10/100 Ethernet, USB host and client, serial (DB9) |
| GPIO | 4 inputs, 4 outputs, optically isolated |
| Power | PoE (802.3af), PoE+ (802.3at), +24 V DC |
| Processor / OS | TI AM3505 600 MHz; 512 MB flash, 256 MB DRAM; Linux |
| Dimensions / weight | 27.3 x 18.4 x 5.0 cm; approx. 2.13 kg |
| Sealing / temperature | IP53; -20 °C to 55 °C |
| Warranty | 1 year from shipment |
What’s in the box
FX9600 reader. Antennas, RF cables, mounting and a PoE+ switch or 24 V supply are specified for each site; we design and install the complete read point.
Ideal for
Warehouse dock doors and portals, conveyors and sortation, manufacturing work-in-progress, retail distribution centres, asset gates and RFID tunnels.
Why buy the Zebra FX9600 from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live. Protect your investment with our Zebra AMC and repair service, or contact our team for a project quote and volume pricing.
