Description

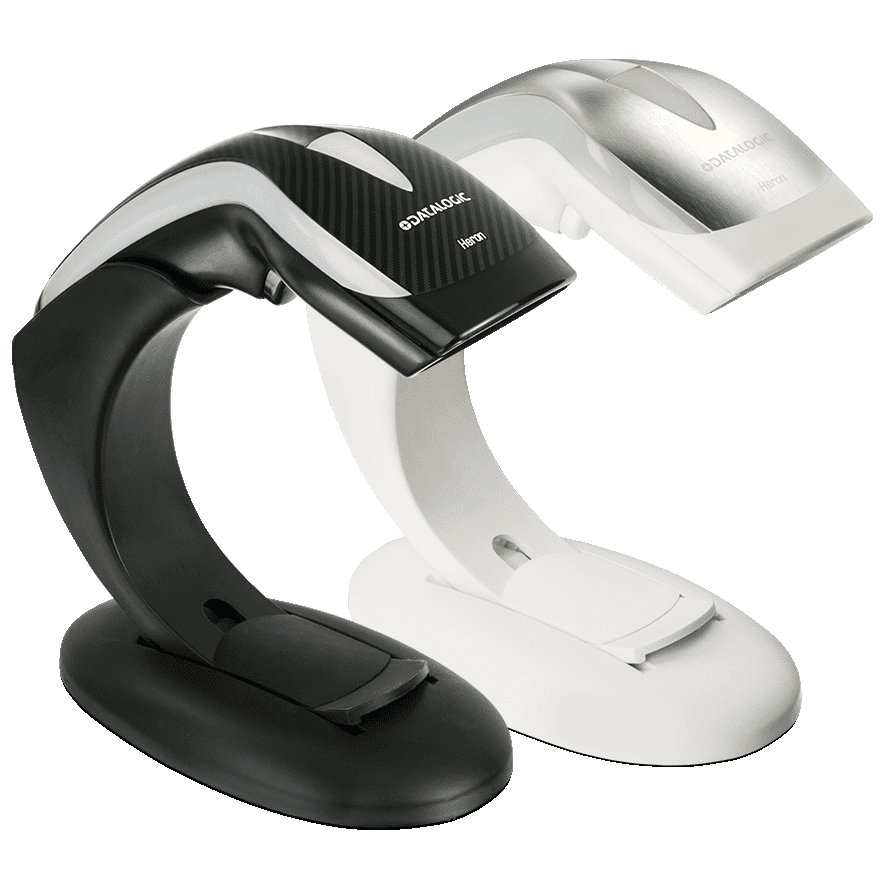

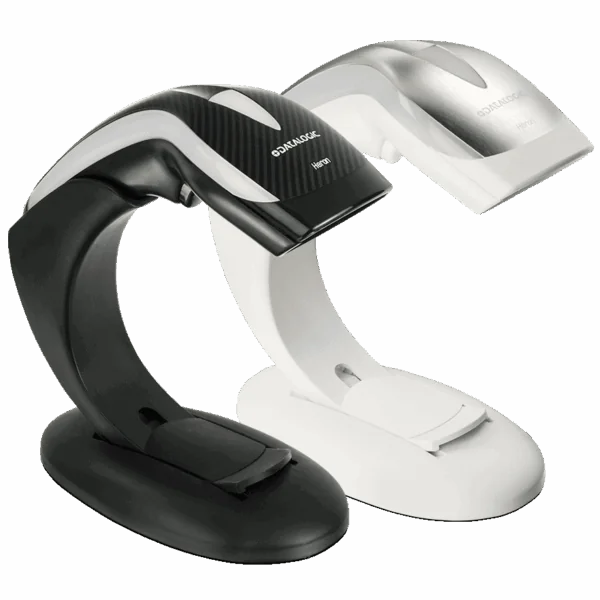

The Datalogic Heron HD3430 brings dependable 2D area-imaging to the point of sale in a design customers notice. Its curved enclosure comes in a black carbon-fibre look or a white silver finish, and retailers can personalise the top cover with a company logo and custom beep and light feedback to match their brand.
Behind the styling is a 752 × 480 imager that reads linear, stacked, 2D and postal codes, including mobile coupons, loyalty QR codes and GS1 DataBar, quickly and from almost any angle.
Accurate aiming in busy environments
White illumination keeps the light comfortable for staff and shoppers, while a highly visible 4-dot aimer with a centre cross defines the reading zone, so cashiers can pick one barcode out of several on a crowded label or catalogue page.
Hands-free or handheld
The HD3430-BKK1B kit includes a stand, so the Heron can work as a presentation scanner for quick countertop scanning and be lifted off for bulky items. Datalogic’s Green Spot projects a green dot onto the code to confirm each good read, backed by LEDs and a speaker.
More than a barcode reader
The imager can capture signatures, IDs or whole documents and save them as BMP, JPEG or greyscale TIFF files, which is useful for returns, prescriptions and customer records.
Key features
- 752 × 480 2D area imager for 1D, 2D, stacked and postal codes
- Reads printed labels and codes on phone screens
- White illumination with 4-dot centre-cross aimer
- Datalogic Green Spot good-read feedback
- USB, RS-232 and keyboard wedge interfaces in one scanner
- Image capture to BMP, JPEG or TIFF
- Customisable cover colour, logo and feedback
- 1.5 m drop resistance
Technical specifications
| Part number | HD3430-BKK1B (black, USB kit with stand) |
|---|---|
| Imager | 2D area imager, 752 × 480 pixels |
| Aimer / illumination | 4-dot centre-cross, 650 nm · white LED illumination |
| Motion tolerance | 25 IPS |
| 1D symbologies | All standard 1D codes including GS1 DataBar linear |
| 2D / stacked codes | Aztec, Data Matrix, MaxiCode, QR, Micro QR, Han Xin, PDF417, MicroPDF417, GS1 composites |
| Postal codes | Planet, Postnet, RM4SCC and other national postal codes |
| Interfaces | USB, RS-232, keyboard wedge |
| Read feedback | Green Spot, top and side LEDs, polyphonic speaker |
| Image capture | BMP, JPEG, greyscale TIFF |
| Dimensions / weight | 152 × 153 × 68 mm · approx. 150 g |
| Durability | IP40 · 1.5 m drop to concrete |
What’s in the box
Heron HD3430 scanner, USB cable and stand (HD3430-BKK1B kit).
Ideal for
Retail and fashion checkouts, pharmacies, hospitality and front desks, libraries, ticketing, loyalty and mobile coupon redemption.
Why buy the Heron HD3430 from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live, including POS keyboard-wedge and serial set-up. Protect your investment with our Datalogic AMC and repair service, or contact our team for a project quote and volume pricing.
