Description

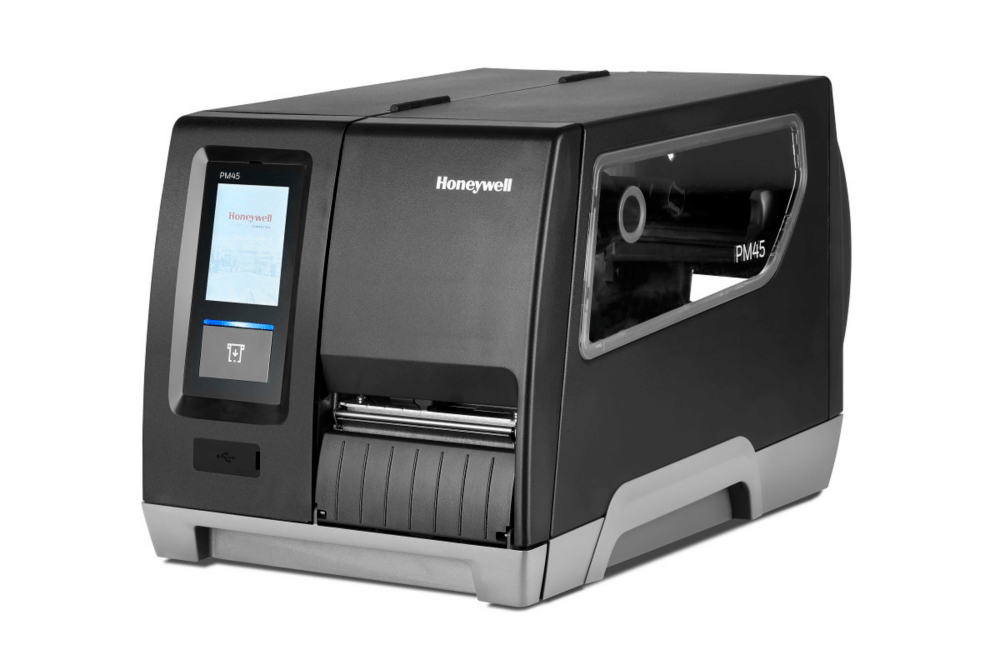

The Honeywell PM45 is a mid-to-high-volume industrial printer built for track-and-trace labelling. It handles shipping, pallet, product and compliance labels around the clock, with an all-metal chassis and mechanism that stands up to dusty warehouses and busy production floors.
The model offered here, PM45A10000000200, is the full-touch-display, thermal-transfer, 203 dpi version with USB and Ethernet and a standard tear bar. 300, 406 and 600 dpi and RFID variants are also available.
Fast and precise printing
Print speeds from 2 to 14 ips and ±0.5 mm registration keep barcodes, text and graphics crisp, even on small labels for electronics and medical devices. Direct thermal and thermal transfer printing with ink-in and ink-out ribbons up to 450 m long reduces media changes.
Drop-in replacement for mixed fleets
Firmware supports ZSim2 (ZPL-II), DPL, IPL, Direct Protocol, Fingerprint, XML for SAP AII and Oracle WMS, and C# Smart Printing, so the PM45 can replace Zebra, Datamax or Intermec printers without rewriting label formats. Smart Parse helps adapt legacy label data quickly.
Connected and easy to maintain
Ethernet, USB, RS-232, Bluetooth 5.0 and optional Wi-Fi connect the printer to any site network, with optional parallel, industrial and applicator interfaces. Operational Intelligence monitors printers remotely, and tool-free printhead and platen roller replacement minimises downtime.
Key features
- 4-inch print width, up to 14 ips (350 mm/s)
- ±0.5 mm print registration
- Direct thermal and thermal transfer printing
- 203 dpi (300, 406 and 600 dpi models available)
- ZPL-II, DPL, IPL, DP, FP and XML command languages
- Ethernet, USB, RS-232 and Bluetooth 5.0
- Full-colour touch display
- All-metal mechanism, tool-free printhead change
Technical specifications
| Part number | PM45A10000000200 (full touch, thermal transfer, 203 dpi, Ethernet, tear bar) |
|---|---|
| Print method | Direct thermal and thermal transfer |
| Resolution | 203 dpi on this model (300 / 406 / 600 dpi available) |
| Print speed / width | 50–350 mm/s (2–14 ips) · 4 inch |
| Registration | ±0.5 mm |
| Command languages | ZSim2 (ZPL-II), DPL, IPL, Direct Protocol, Fingerprint, PDF, XML for SAP AII / Oracle WMS, C# Smart Printing |
| Interfaces | Ethernet 10/100, USB 2.0 host ×2, RS-232, Bluetooth 5.0; options: Wi-Fi, parallel, industrial, applicator, RFID |
| Memory | 256 MB RAM, 512 MB flash, USB memory support |
| Media | Labels, linered, tags, RFID; max roll diameter 213 mm |
| Ribbon | Ink-in or ink-out, 1-inch core, up to 450 m |
| Dimensions / weight | 483 × 295 × 284 mm · 13.2 kg |
| Power / environment | 100–240 V AC, 50–60 Hz · operating 5°C to 40°C, 20–85% RH |
| Warranty | 1 year factory warranty |
What’s in the box
PM45 printer with power cord and quick-start documentation. Labels, ribbons and interface cables are sold separately.
Ideal for
Manufacturing work-in-progress and finished-goods labels, food and beverage and pharmaceutical track-and-trace, warehouse and distribution shipping labels, and GS1 pallet and carton labelling.
Why buy the PM45 from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live, including label design, ERP/WMS print integration and printer fleet migration. Protect your investment with our Honeywell AMC and repair service, or contact our team for a project quote and volume pricing.
