Description

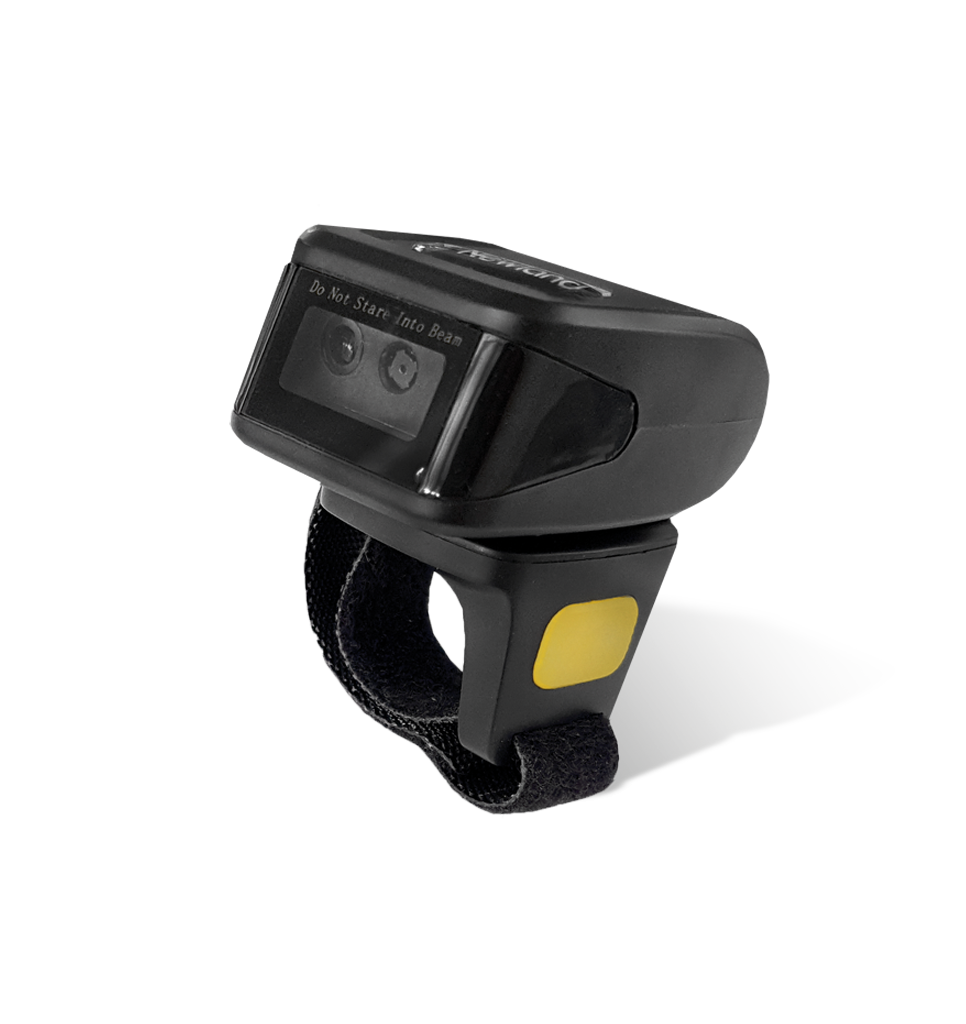

The Newland BS10R Sepia II is a lightweight wearable ring scanner for picking, packing and stock work. It rotates 360° to fit comfortably on the left or right hand, and the trigger is placed for easy one-handed use while carrying boxes.
A buzzer, LED and vibration confirm every scan, so operators can keep working without looking at a screen.
Easy wireless connection
One button press pairs the BS10R over Bluetooth 4.1 with tablets, smartphones, PCs and Newland devices running Windows, Android or iOS. It works in HID keyboard and SPP modes and gives freedom of movement up to 30 m from the host.
Scan now, upload later
16 MB of memory holds up to 50,000 barcodes when there is no live connection, ready to transfer to your system later. This suits stock counts and receiving in areas without coverage.
Full-shift battery, tough build
The battery lasts more than 8 hours of intensive scanning and up to 30 days in standby, and recharges in under 2 hours. The BS10R survives 1.5 m drops to concrete.
Key features
- 32 g ring scanner, 360° rotation for left or right hand
- 1D and 2D barcode scanning with red LED aimer
- Bluetooth 4.1, HID and SPP, up to 30 m range
- Works with Windows, Android and iOS
- 16 MB memory for up to 50,000 offline scans
- 8+ hours per charge, 30 days standby
- 1.5 m drop rating
Technical specifications
| Image sensor | 640 x 480 CMOS, 60 fps; white LED illumination; red LED aimer |
|---|---|
| Depth of field | Code 39 (5 mil): 40-150 mm; QR (15 mil): 30-170 mm |
| Symbologies | All major 1D incl. Code 128, EAN/UPC, GS1 DataBar; 2D incl. PDF417, Data Matrix, QR |
| Wireless | Bluetooth 4.1 (HID keyboard and SPP), up to 30 m |
| Memory | 16 MB, up to 50,000 barcodes |
| Battery | 380 mAh Li-ion; 8+ hours use; under 2 hours charge |
| Notifications | LED, buzzer, vibration |
| Interface | USB (charging and data) |
| Weight | 32 g |
| Drop | 1.5 m |
| Operating temperature | 0 °C to 40 °C |
| Warranty | 2 years |
What’s in the box
BS10R Sepia II ring scanner with USB charging cable. A 5 V power adapter can be supplied for wall charging.
Ideal for
Warehouse picking and packing, parcel sorting, goods receiving, retail stock counts and replenishment, and light manufacturing where operators need both hands free.
