Description

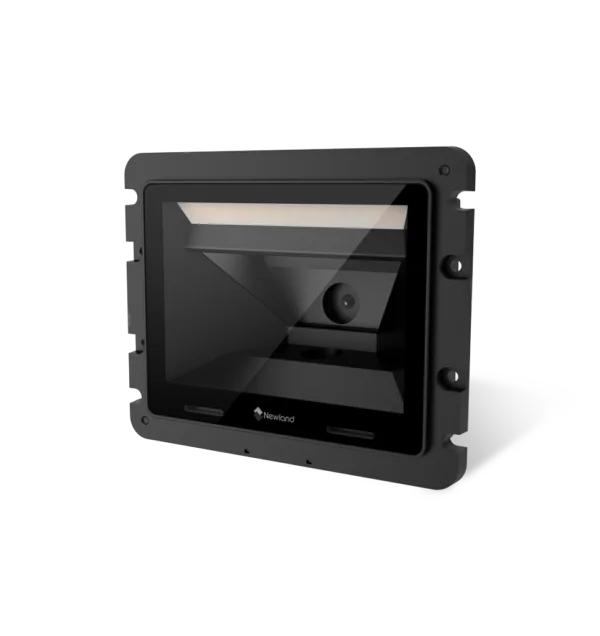

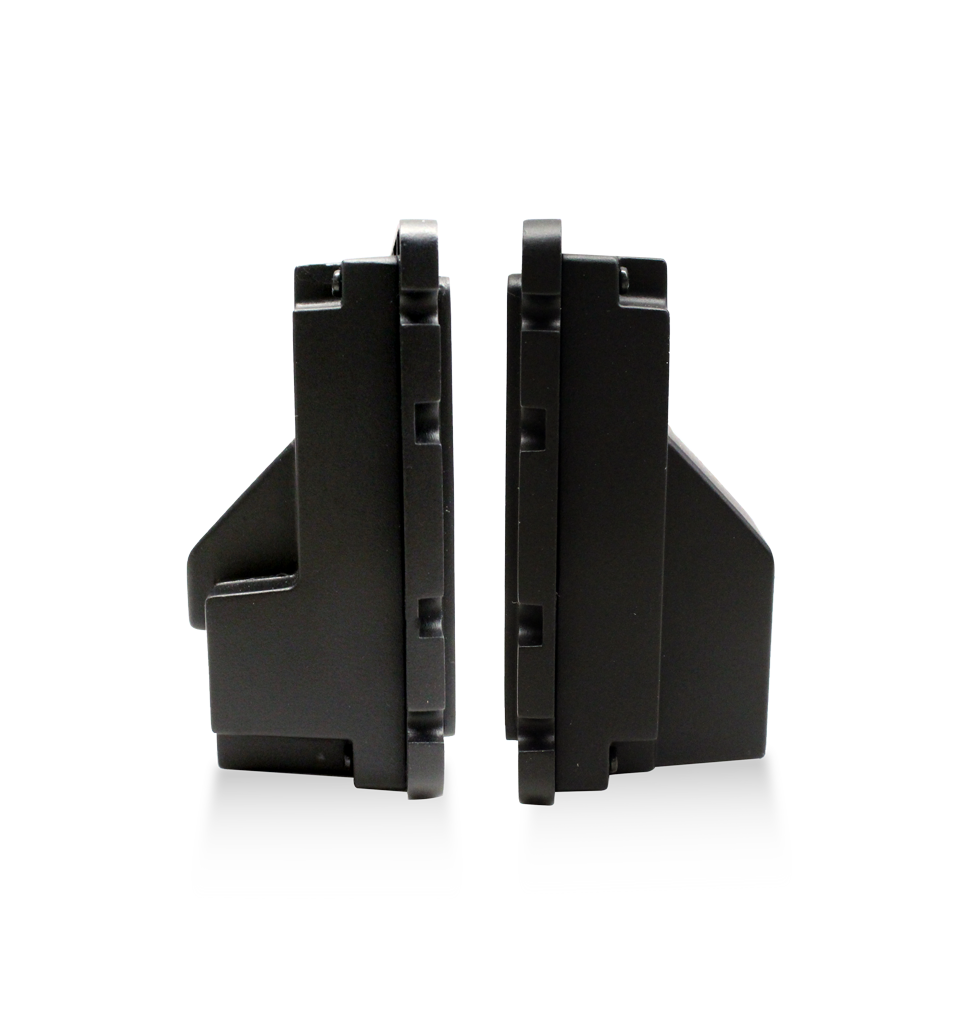

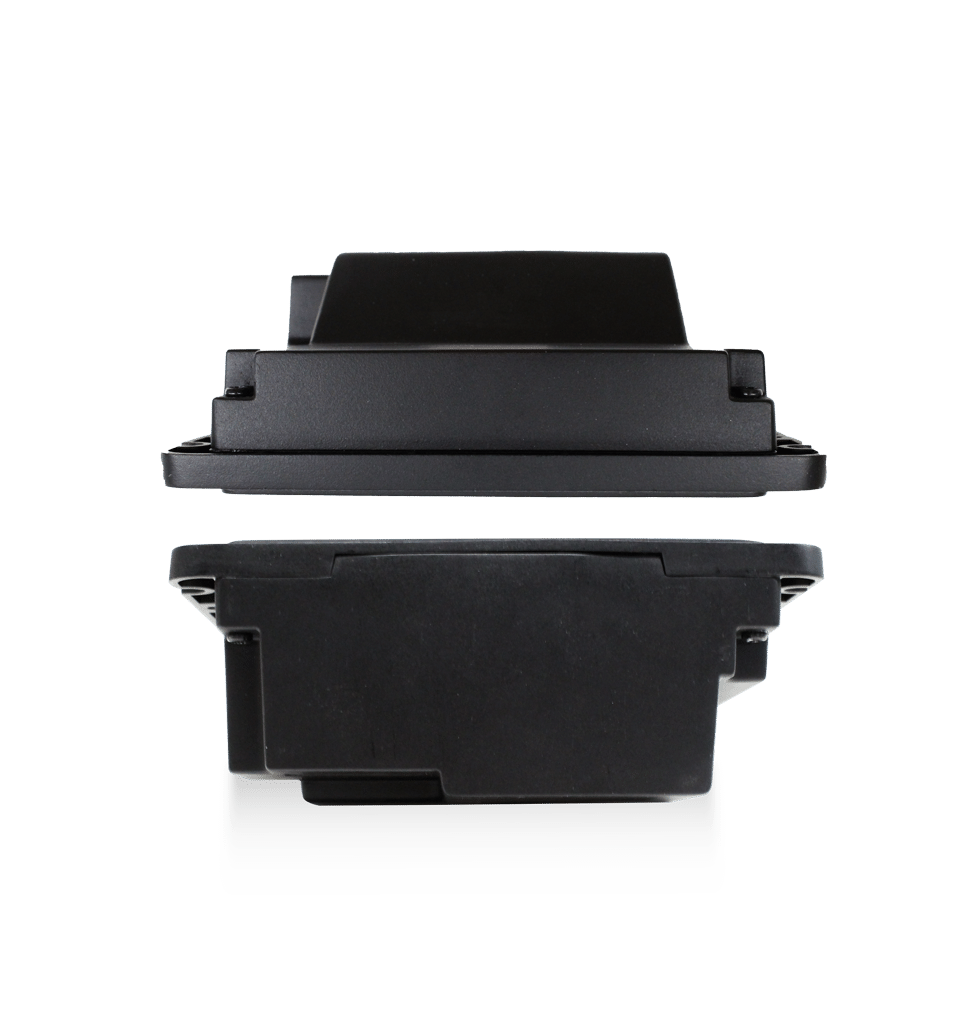

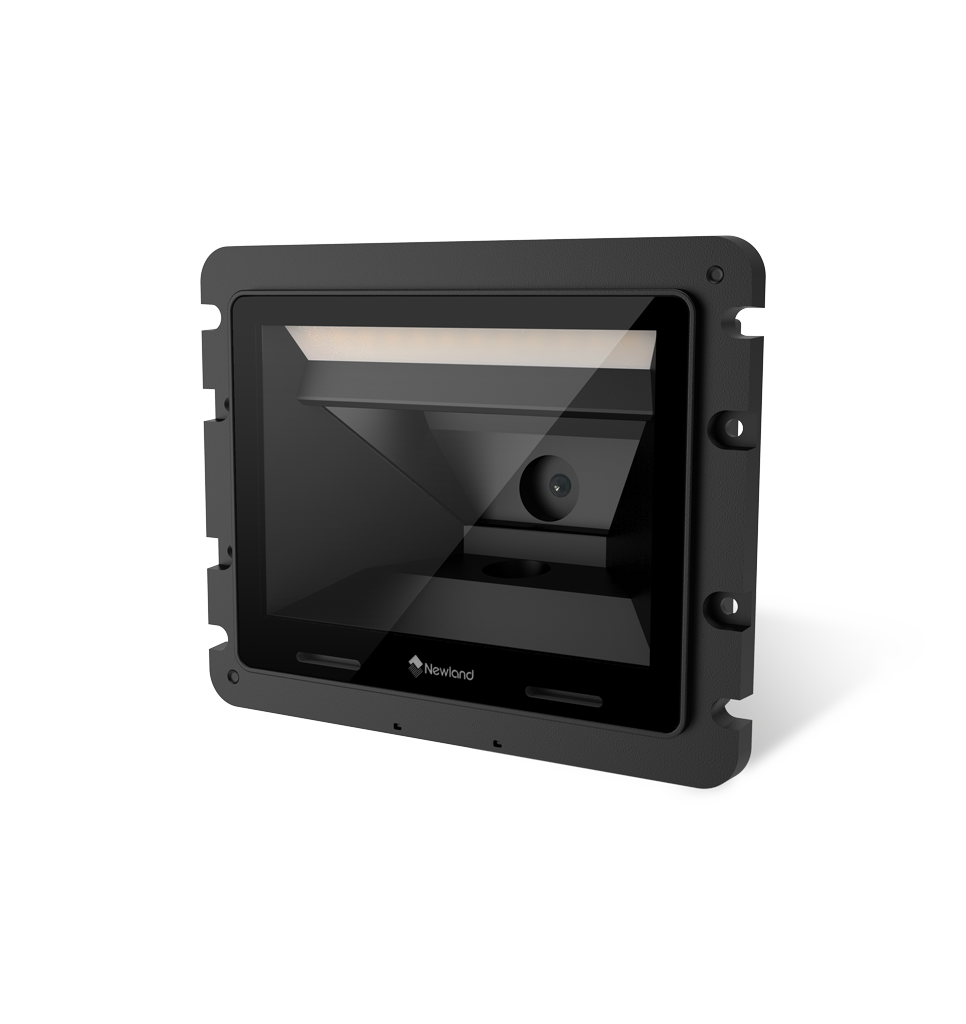

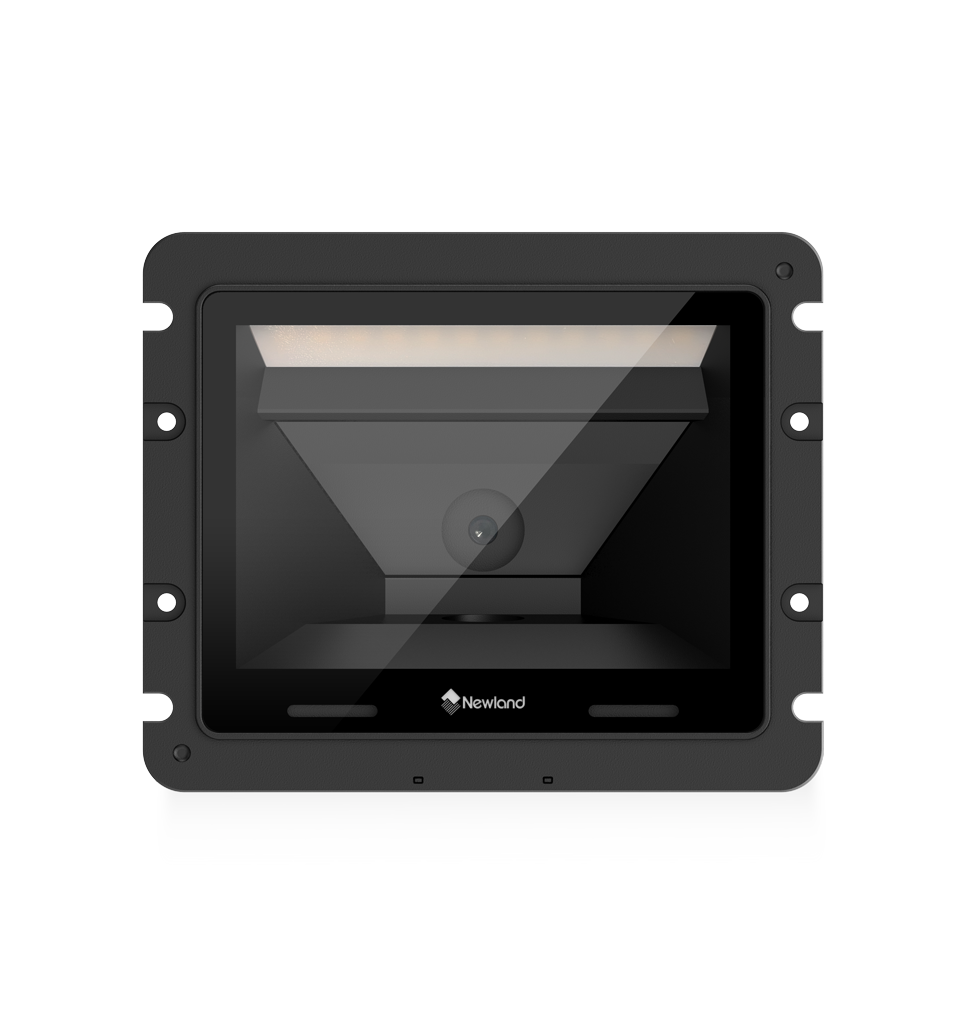

The Newland FM60 Cubera AI is a fixed-mount scanner designed to be built into other equipment: self-checkout and ordering kiosks, ticket validators, parcel lockers, vending machines and counter-top POS systems. Its compact 114 × 46 × 94 mm housing and 145 g weight make it easy for system integrators to fit, and its medium-sized scan window reads codes held close to the device or presented at an angle.
Inside, a multi-core processing platform runs Newland’s UIMG decoding together with AI-powered barcode detection, which uses computer vision to locate and read codes quickly, even when the customer is not holding them perfectly.
AI decoding for real-world codes
The FM60 reads damaged, distorted and low-contrast 1D and 2D barcodes, codes printed on curved or reflective packaging, and QR codes on phone screens for tickets, coupons and payments. A 1280 × 800 CMOS sensor with a wide 65.6° × 44.6° field of view and motion tolerance above 2 m/s keeps queues moving at unattended kiosks.
OCR for ID and document capture
Built-in OCR extracts text from IDs and official documents, useful for hotel and airport self check-in, age verification and visitor registration without adding a separate document reader.
Clear status and easy integration
Six status indicators show decoding, configuration, communication and fault states at a glance, so staff can quickly see whether a scan succeeded. The scanner accepts 5–12 VDC, connects over USB or RS-232, supports Advanced Scripting for data formatting and is configured with Newland EasySet. It is GS1 ready and covered by a 5-year standard warranty.
Key features
- AI-powered barcode detection with Newland UIMG decoding
- 1280 × 800 CMOS imager with white LED illumination
- OCR for IDs and official documents
- Medium scan window for kiosk and POS integration
- Motion tolerance above 2 m/s
- USB and RS-232 interfaces, 5–12 VDC input
- Six status indicators, Advanced Scripting and EasySet
- IP52, 5-year standard warranty
Technical specifications
| Part number | NLS-FM6080V2-U12 (1.2 m USB cable) |
|---|---|
| Image sensor | 1280 × 800 CMOS, white LED illumination (5000K) |
| 1D symbologies | Code 128, EAN-8/13, UPC-A/E, ITF-14, Code 39, Code 93, Codabar, GS1-128, GS1 DataBar, GS1 Composite, ISBT 128 and more |
| 2D symbologies | PDF417, Micro PDF417, QR, Micro QR, Data Matrix, Aztec, MaxiCode, Grid Matrix, Code One, DotCode |
| Depth of field | EAN-13 13 mil: 0–180 mm · QR 15 mil: 0–130 mm |
| Field of view | 65.6° horizontal × 44.6° vertical |
| Resolution / print contrast | ≥4 mil (1D) · 25% minimum |
| Motion tolerance | >2 m/s |
| Interfaces | USB, RS-232 |
| Power | 5–12 VDC ±5% · 195.8 mA typical at 5 V |
| Dimensions / weight | 114 × 46 × 94 mm · 145 g |
| Environment | IP52 · -20°C to 50°C operating |
| Warranty | 5 years standard |
What’s in the box
FM60 Cubera AI scanner with 1.20 m USB cable (NLS-FM6080V2-U12). A power supply, RS-232 Dupont cable and multiplug adapter are available as optional accessories.
Ideal for
Self-checkout and self-ordering kiosks, ticketing and access gates, parcel lockers, vending machines, hotel and airport self check-in, and counter-top POS systems.
Why buy the FM60 Cubera AI from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live, including kiosk integration and EasySet configuration. Protect your investment with our Newland AMC and repair service, or contact our team for a project quote and volume pricing.
