Description

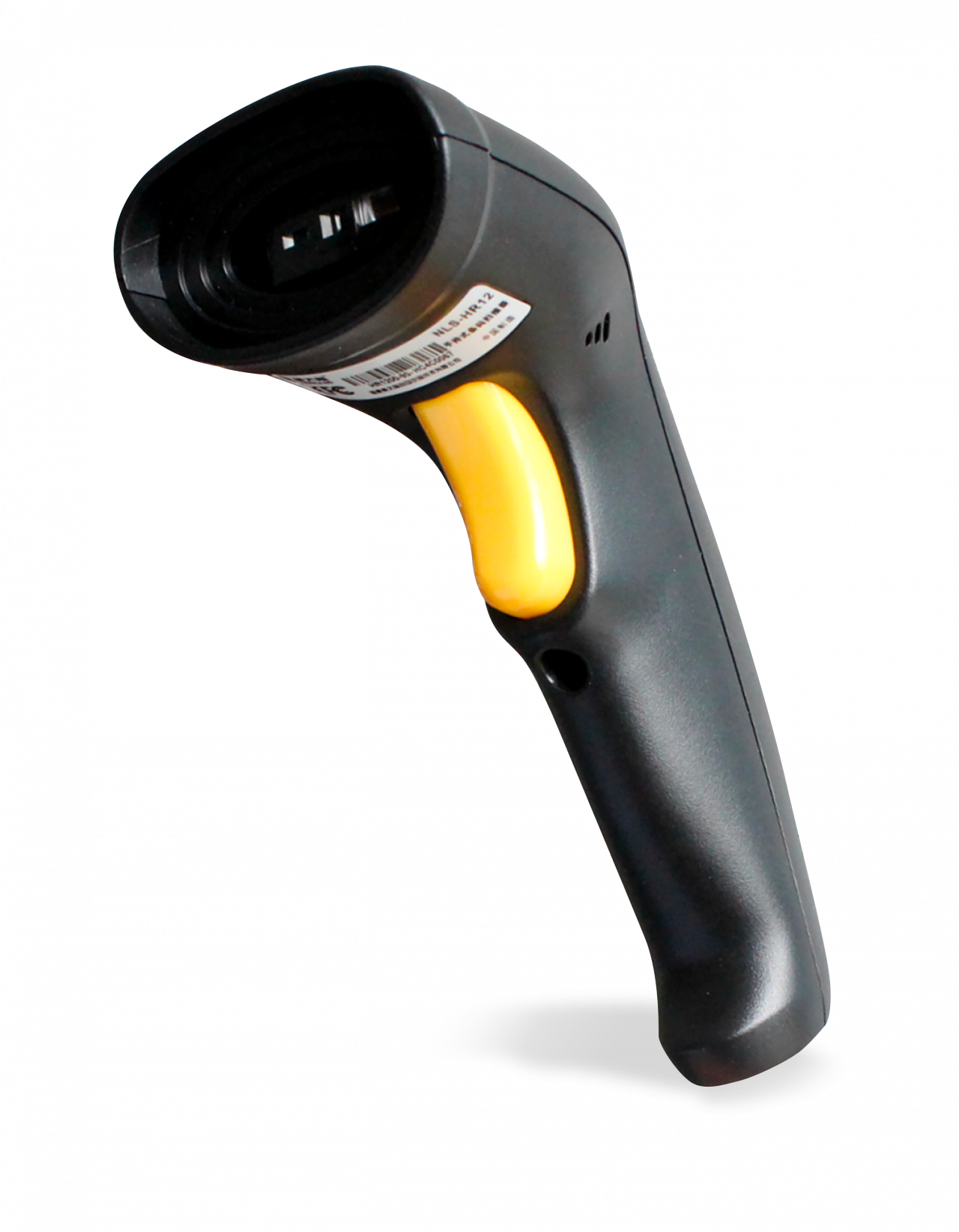

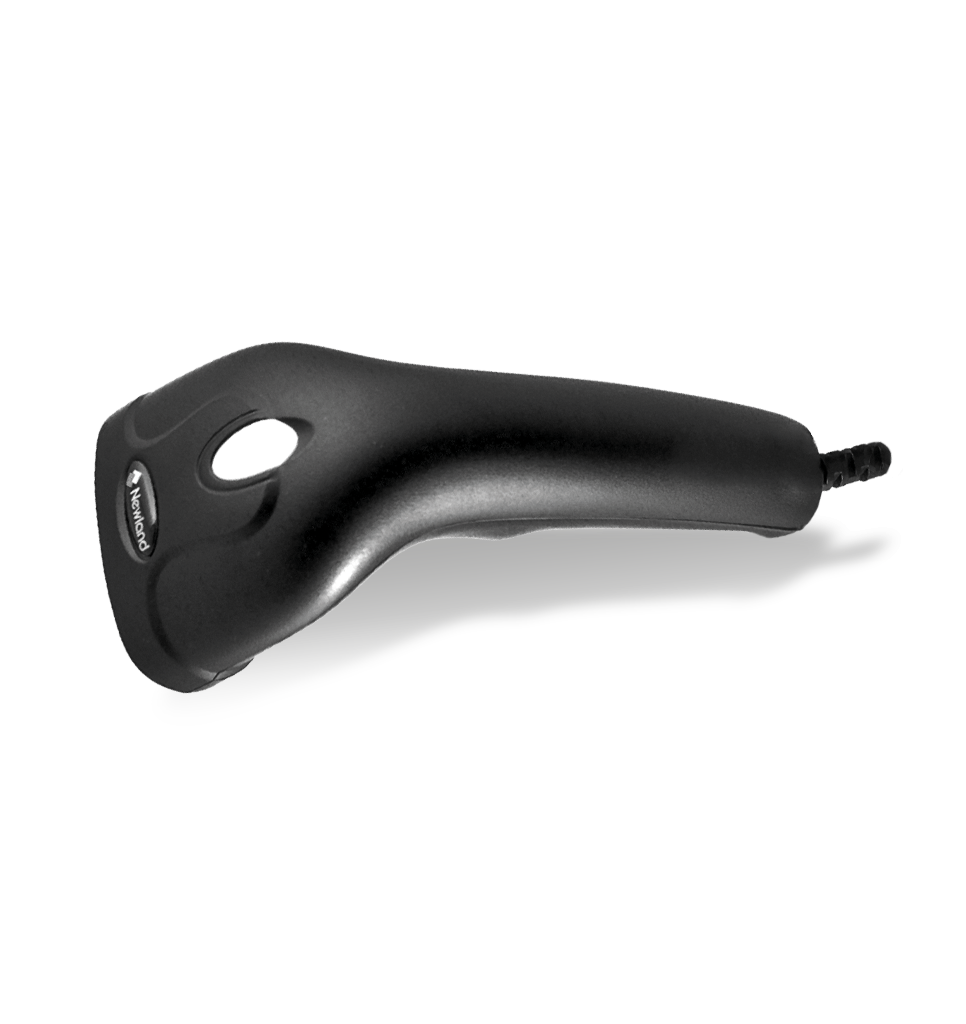

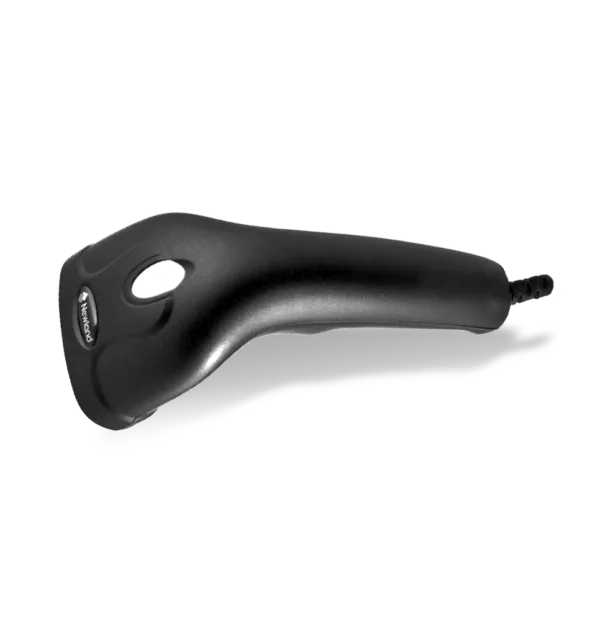

The Newland HR12 Anchoa is an entry-level handheld scanner for businesses that need reliable linear barcode reading without paying for 2D features they will never use. Plug it into a USB port and it works as a keyboard, sending each scanned code straight into your POS, spreadsheet, accounting or inventory software.
Newland builds the Anchoa around its own 1D decoding chip and a 1500-pixel CCD sensor, giving fast, accurate reads on product labels, shelf tags and printed documents.
Quick reads near and far
The HR12 scans at 300 times per second with a 40° field of view. Standard 13 mil EAN-13 codes can be read from 50 mm up to 655 mm away, so staff can scan items in a basket or on a lower shelf without bending, while fine 5 mil Code 39 labels read from 55 mm to 165 mm.
Small, light and solid-state
At 163 × 68.4 × 58.5 mm and 130 g including the cable, the Anchoa sits comfortably in the hand. With no moving parts it holds up well to daily use at the counter, and it is rated to work from -20°C to 60°C with IP41 protection.
Low power, low running cost
The scanner draws only about 55 mA when operating and 21 mA on standby, which keeps it friendly to laptops, tablets and USB hubs and reduces energy use across multi-till sites. Trigger, sense and continuous modes cover both handheld and hands-free scanning.
Key features
- 1500-pixel CCD sensor with Newland 1D decoding chip
- 300 scans per second
- Reads up to 655 mm on 13 mil EAN-13
- Plug-and-play USB keyboard connection
- Trigger, sense and continuous scan modes
- Very low 55 mA operating current
- Compact 130 g design, IP41
- 5-year standard warranty
Technical specifications
| Part number | NLS-HR1250-70 (2 m USB cable) |
|---|---|
| Image sensor | 1500-pixel CCD |
| Illumination | Red LED, 610–640 nm |
| Symbologies | EAN-13/8, UPC-A/E, ISBN, ISSN, Code 128, Code 93, Code 39, Code 11, Codabar, ITF-14, ITF-6, Interleaved/Industrial/Standard/Matrix 2 of 5, GS1 DataBar, MSI-Plessey, Plessey |
| Scan rate | 300 scans per second |
| Depth of field | EAN-13 13 mil: 50–655 mm · Code 39 5 mil: 55–165 mm |
| Field of view / scan angles | 40° horizontal · pitch ±60°, skew ±60°, roll 30° |
| Minimum print contrast | 30% |
| Interface | USB |
| Power | 5 VDC · 55 ±5 mA operating, 21 mA standby |
| Dimensions / weight | 163 × 68.4 × 58.5 mm · 130 g with cable |
| Environment | IP41 · -20°C to 60°C operating · ±10 kV air ESD |
| Warranty | 5 years standard |
What’s in the box
HR12 Anchoa scanner with 2 m USB cable (NLS-HR1250-70).
Ideal for
Small retail shops and retail chains, cafés and quick-service counters, offices and document tracking, stock counts, courier and express delivery desks, healthcare and food traceability.
Why buy the HR12 Anchoa from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live, including set-up with your POS or inventory software. Protect your investment with our Newland AMC and repair service, or contact our team for a project quote and volume pricing.
