Description

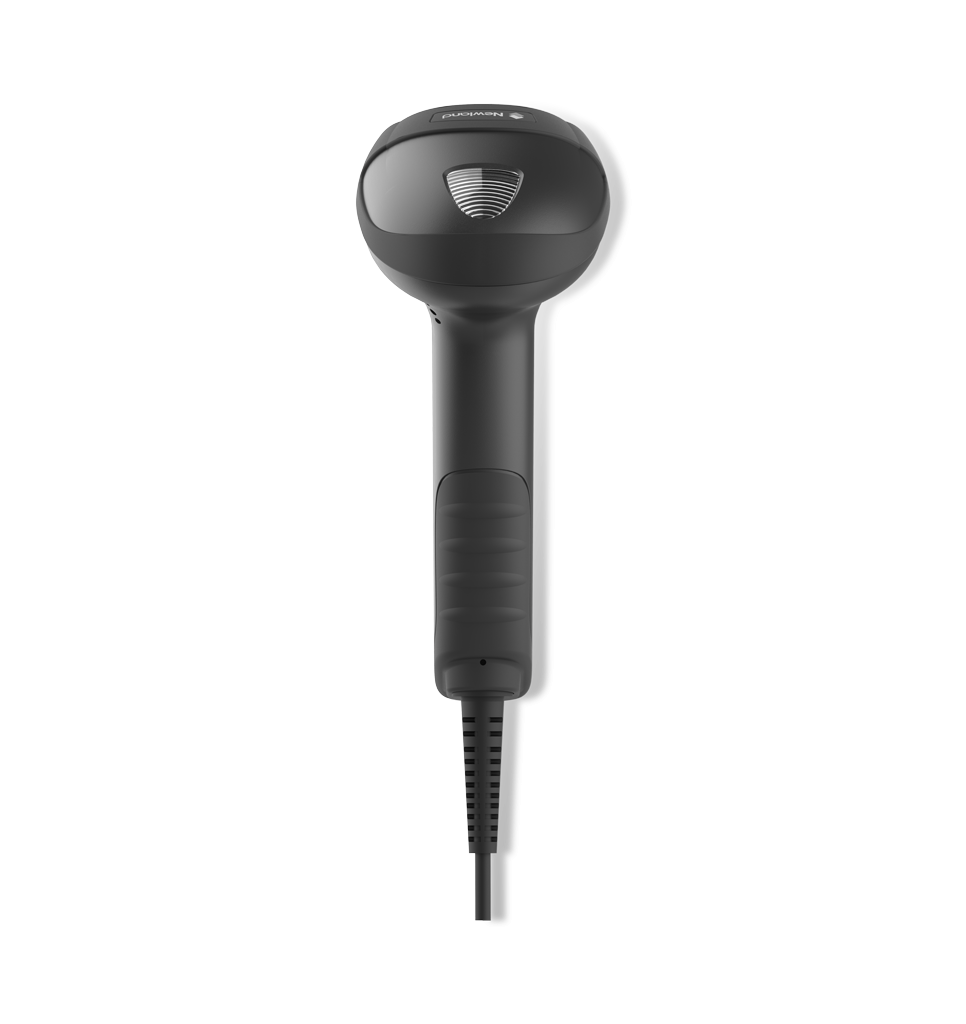

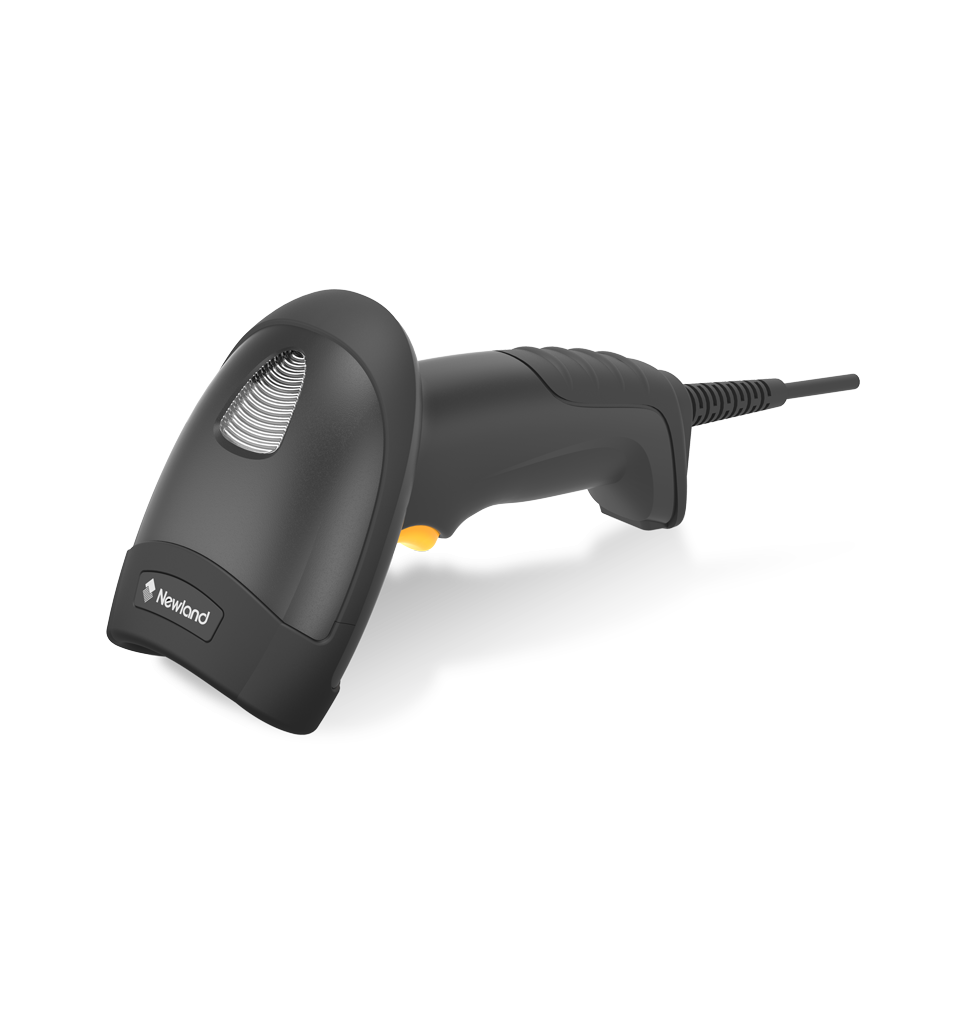

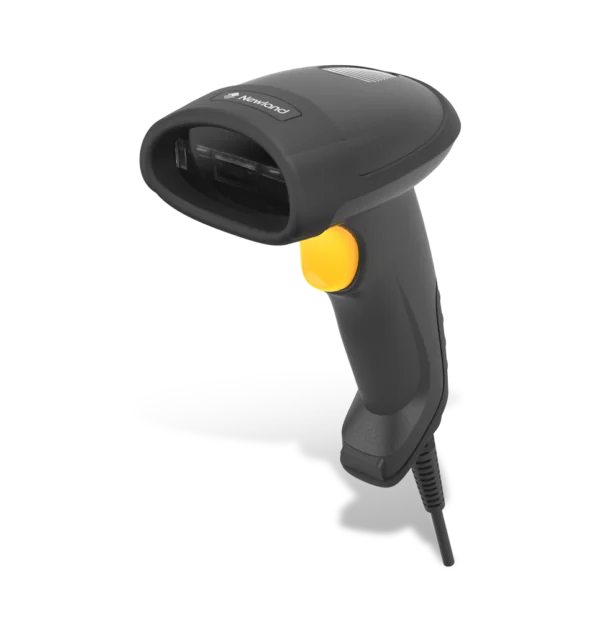

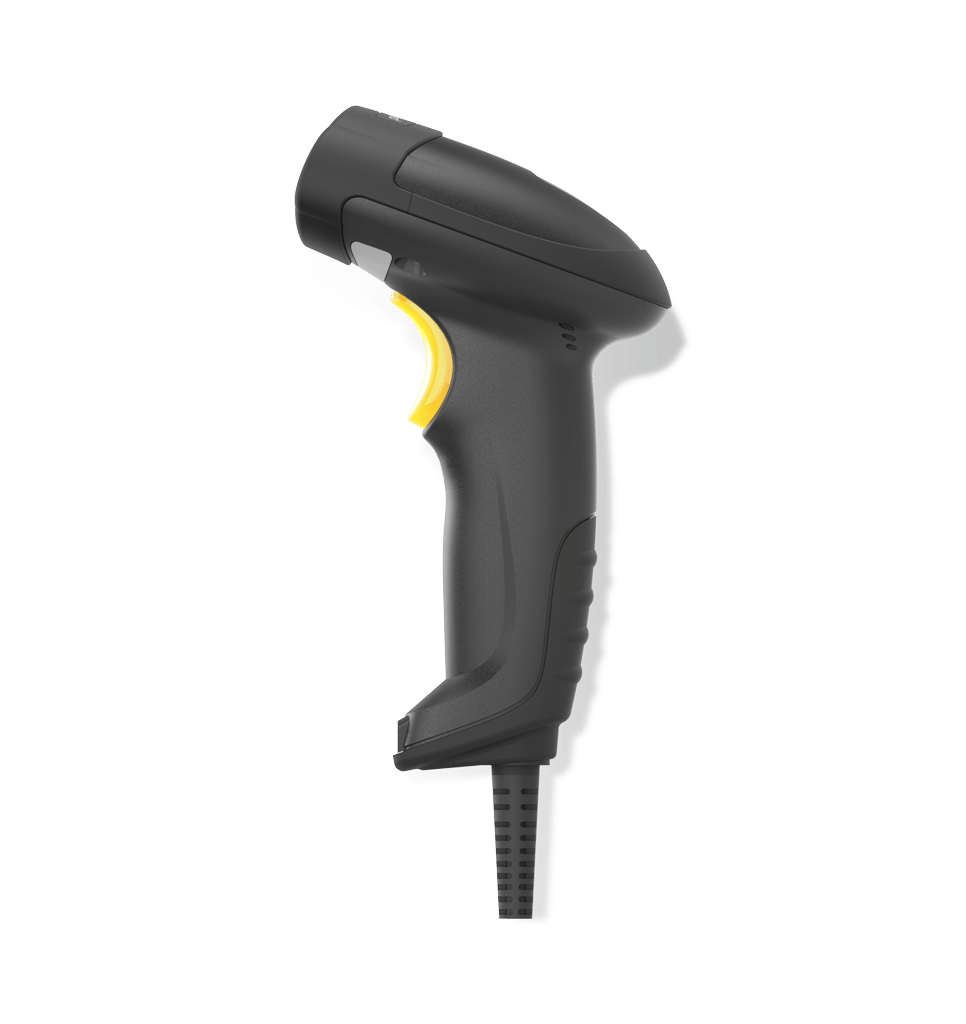

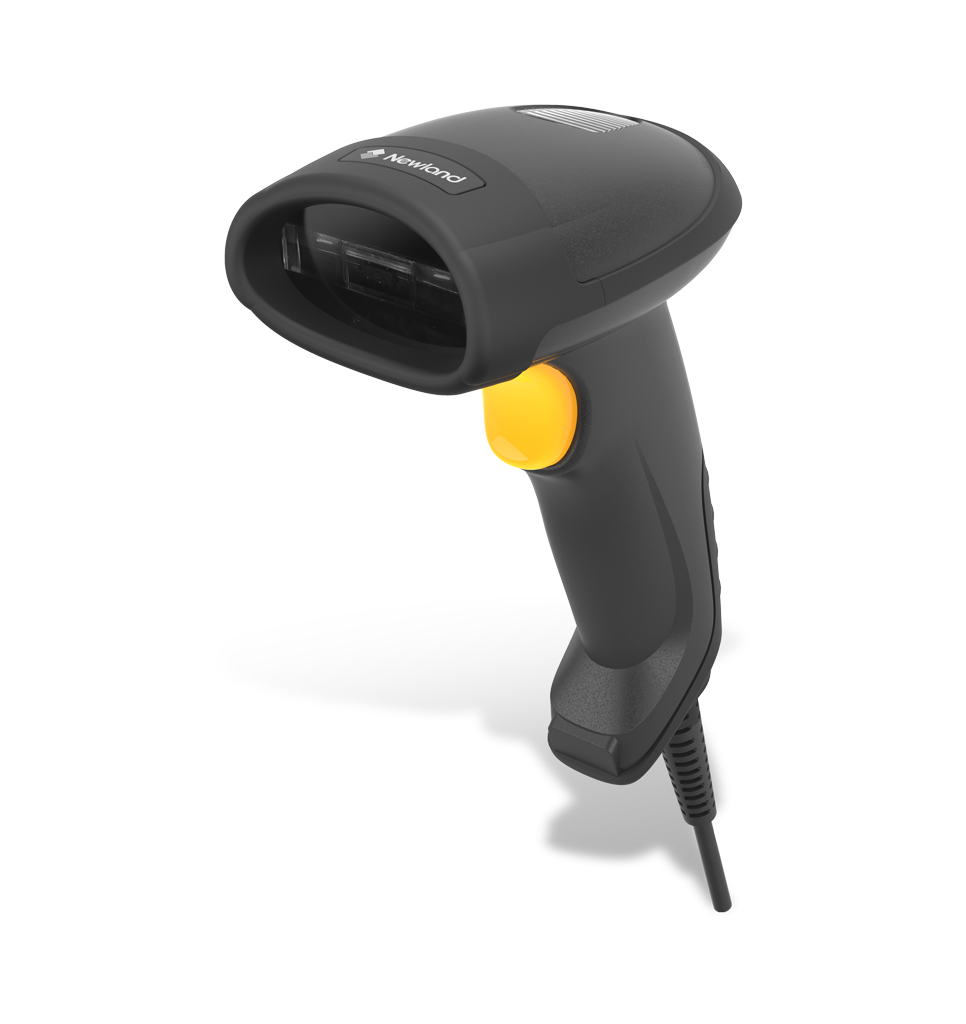

The Newland HR15 Wahoo Corded is a practical 1D handheld scanner for businesses that mainly scan linear barcodes such as EAN, UPC, Code 128 and GS1 DataBar, but still want a device that can take knocks. It is the corded member of the HR15 Wahoo series and ships with a coiled cable that keeps the counter tidy and gives the operator room to reach items in a trolley or on a pallet.
Unlike many entry-level linear scanners, the HR15 can also decode PDF417 and MicroPDF417 stacked codes, which often appear on shipping labels, IDs and some healthcare packaging.
Fast CCD scanning with a generous reading range
A 2500-pixel CCD image sensor with red LED illumination scans at 300 times per second across a 42° field of view, reading codes from about 3 cm to more than 46 cm away. Wide skew and pitch tolerance mean staff do not need to line the scanner up perfectly, and seven scan modes, from trigger to continuous and sense mode, let you adapt it to handheld or hands-free use.
Built for busy shop floors and stock rooms
The HR15 is sealed to IP54 against dust and splashing water and survives repeated 1.5 m drops, so it copes with the warehouse, the delivery bay and the checkout alike. At 152 g with an ergonomic grip, it stays comfortable through scan-intensive shifts.
Simple connection to POS and PC systems
Choose the USB kit for plug-and-play keyboard input or the RS-232 kit for older POS terminals and scales. Optional accessories include a foldable smart stand for presentation scanning and a wall-mount clip, and the scanner is covered by a 5-year standard warranty.
Key features
- 2500-pixel CCD sensor, 300 scans per second
- Reads all major 1D codes plus PDF417 and MicroPDF417
- Depth of field from 31.5 mm to 465.6 mm
- Wide tolerance: skew ±75°, pitch ±55°
- USB and RS-232 interfaces
- IP54 sealing and 1.5 m drop resistance
- Lightweight 152 g ergonomic design with coiled cable
- 5-year standard warranty
Technical specifications
| Part number | NLS-HR1550-35 (3.5 m coiled USB cable) |
|---|---|
| Image sensor | 2500-pixel CCD |
| Illumination | Red LED, 620 nm |
| Symbologies | Code 128, EAN-13/8, UPC-A/E, Code 39, Code 93, Codabar, Interleaved 2 of 5, ISBN, GS1-128, GS1 DataBar, PDF417, MicroPDF417 |
| Scan rate | 300 scans per second |
| Depth of field / field of view | 31.5–465.6 mm · 42° horizontal |
| Scan angles | Pitch ±55°, skew ±75°, roll 30° |
| Minimum print contrast | 25% |
| Interfaces | USB, RS-232 |
| Dimensions / weight | 113.5 × 73.3 × 159 mm · 152 g |
| Durability | IP54 · 1.5 m drop · ±15 kV air ESD |
| Operating temperature | -20°C to 50°C |
| Warranty | 5 years standard |
What’s in the box
HR15 Wahoo scanner with 3.5 m coiled USB cable (NLS-HR1550-35). Other kits: NLS-HR1550-35F adds the foldable smart stand, NLS-HR1550-37 comes with a 2 m RS-232 cable, and NLS-HR1550-38 adds a multiplug adapter.
Ideal for
Supermarkets and convenience stores, shopping mall retailers, warehouse receiving and dispatch, logistics counters, libraries and back-office inventory work.
Why buy the HR15 Wahoo from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live, including POS keyboard-wedge and RS-232 configuration. Protect your investment with our Newland AMC and repair service, or contact our team for a project quote and volume pricing.
