Description

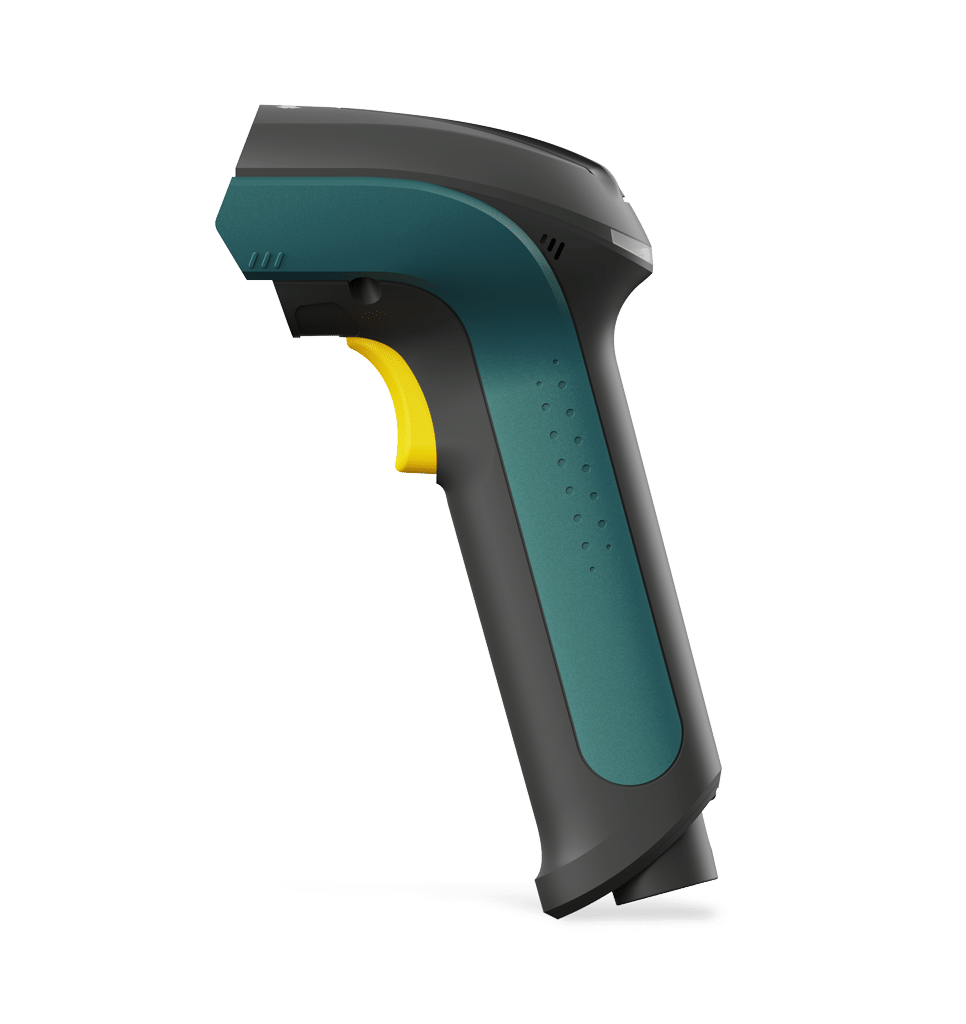

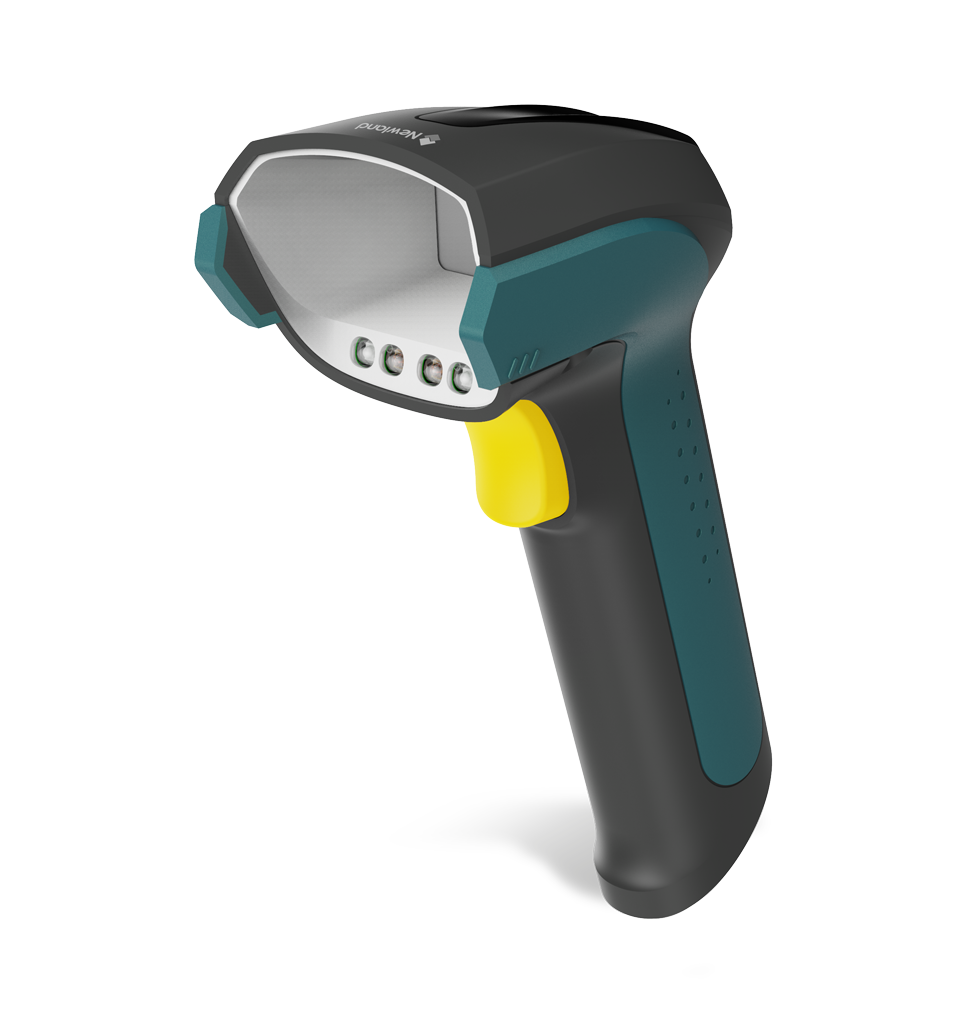

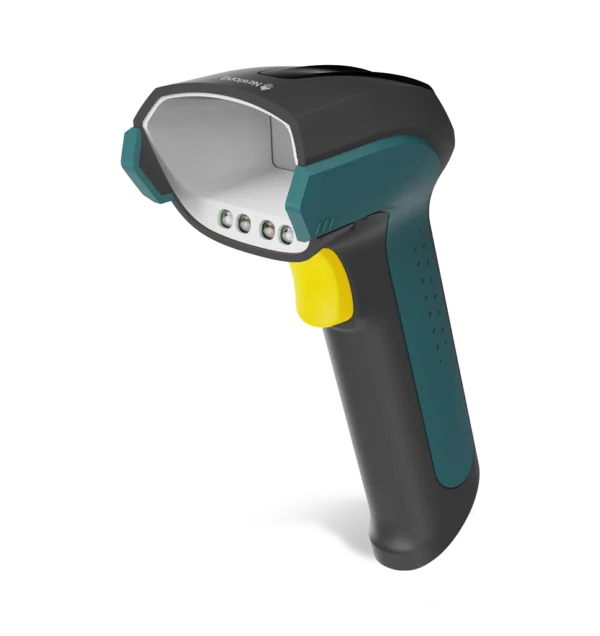

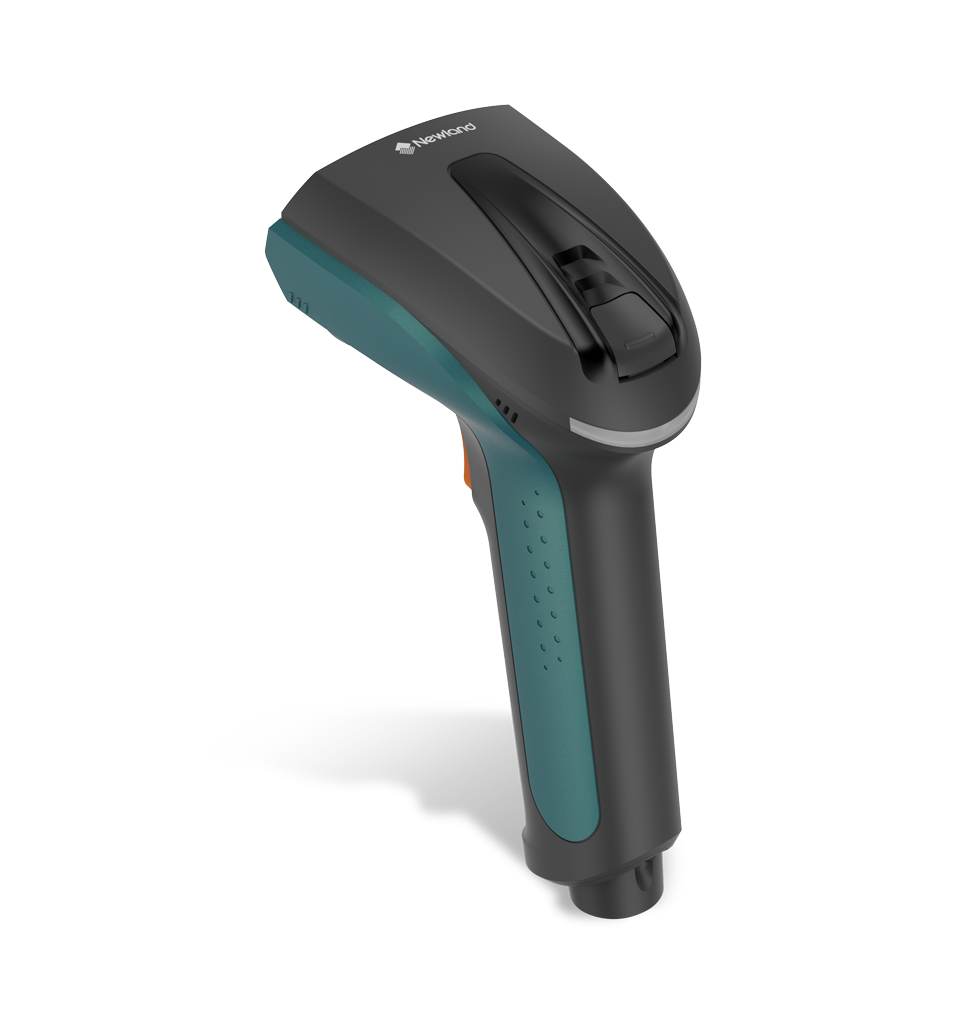

The Newland NVH220 Lophius AI Bluetooth (NLS-NVH220B-V2-XD) is an industrial handheld scanner for production lines, workshops and warehouses where codes are not always printed on clean labels. It decodes Direct Part Marking (DPM) codes that are laser-etched or dot-peened onto metal, plastic and rubber parts, as well as standard 1D and 2D labels.
Its upgraded dual-core platform decodes faster while using less power, and its AI detection uses computer vision to locate codes in difficult images and learn the best settings for each surface.
Lighting for every surface
Direct red and blue LEDs and a diffuse white light cover shiny, curved, textured and low-contrast surfaces. A single auto-learning button on top of the scanner tests the light source and brightness on a new part and keeps the setting that decodes best, so operators do not need to scan configuration sheets.
Made for the factory floor
The housing is sealed to IP64 against dust and water spray and survives repeated 1.8 m drops. Bluetooth 5.0 connects over up to 150 m line of sight with low latency, so one dock can cover a large production cell. The 2,900 mAh battery delivers more than 17 hours or up to 60,000 scans per charge and recharges in about 3 hours.
Direct links to PLCs and MES

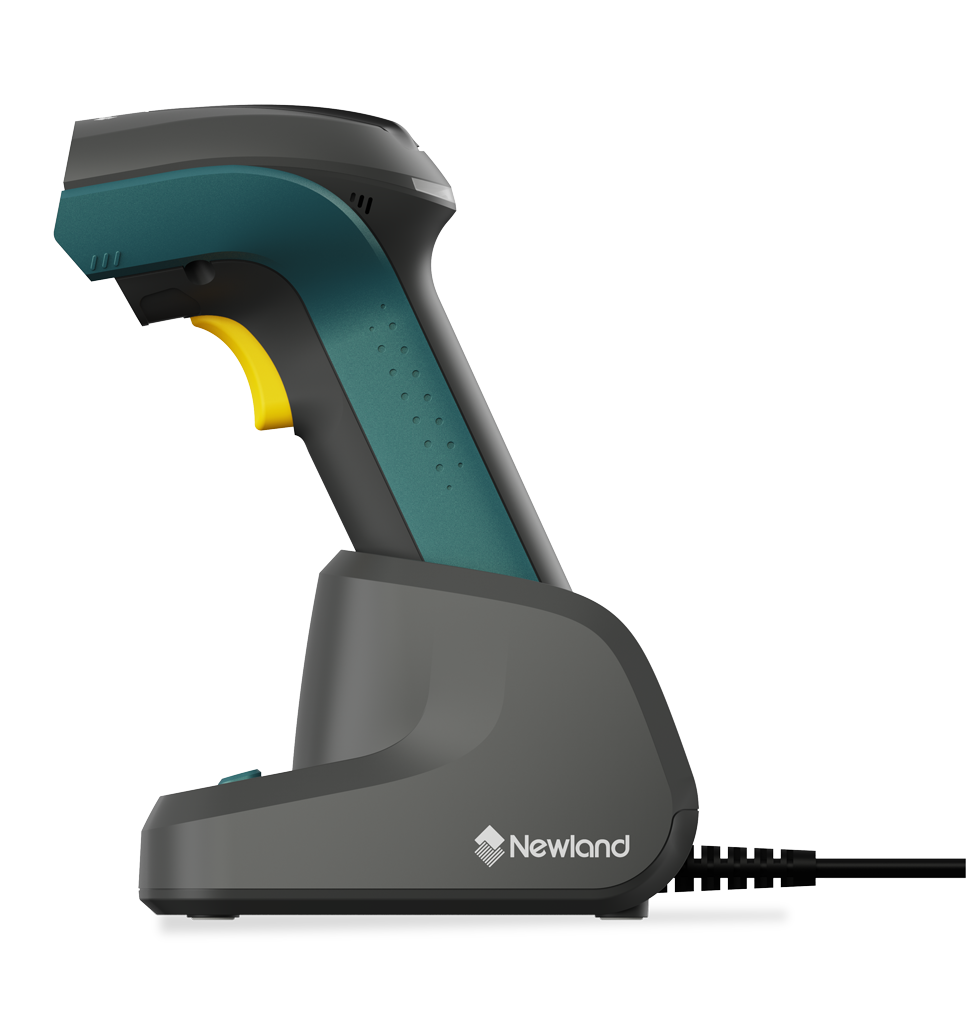

Through its docking station the NVH220 connects over RS-232, Ethernet TCP/IP, Modbus TCP, Profinet or MELSEC/SLMP, which lets it send data straight to PLCs and manufacturing execution systems without middleware. EasySet and Advanced Scripting handle data formatting.
Key features
- AI-powered barcode detection with auto-learning lighting
- Reads DPM codes from laser marking and dot peening
- 1280 × 800 CMOS imager with cross laser aimer
- Red and blue direct LEDs plus white diffuse illumination
- Bluetooth 5.0 with up to 150 m range
- 2,900 mAh battery, up to 60,000 scans per charge
- RS-232, Ethernet, Modbus TCP, Profinet and MELSEC/SLMP
- IP64 sealing, 1.8 m drops, 3-year warranty
Technical specifications
| Part number | NLS-NVH220B-V2-XD |
|---|---|
| Image sensor | 1280 × 800 CMOS, cross laser aimer (650 nm) |
| Illumination | Direct red and blue LEDs; diffuse white LED |
| Symbologies | Common 1D codes; QR, Micro QR, PDF417, Data Matrix, Aztec; DPM; OCR optional |
| Resolution | ≥1.25 mil (1D), ≥2.82 mil (2D); 15% minimum print contrast |
| Depth of field | EAN-13 13 mil: 15–220 mm · QR 20 mil: 0–225 mm |
| Wireless | Bluetooth 5.0, up to 150 m line of sight |
| Interfaces | RS-232, Ethernet TCP/IP, Modbus TCP, Profinet, MELSEC/SLMP |
| Battery | 2,900 mAh, ≥17 hours continuous use, about 3 hours charge |
| Dimensions and weight | 68 × 86 × 180 mm · 218 g with battery |
| Ruggedness | IP64 (IP42 with cradle) · 1.8 m drops |
| Operating temperature | -20 °C to +50 °C |
| Warranty | 3 years standard, extendable by 2 years |
What’s in the box
NVH220 Lophius AI Bluetooth scanner, docking station, USB cable and 5 V power supply.
Ideal for
Automotive and electronics manufacturing, parts traceability, MRO and tool rooms, warehousing and distribution, transport and logistics, and field service.
Why buy the NVH220 Lophius AI from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live, including PLC and MES integration. Protect your investment with our Newland AMC and repair service, or contact our team for a project quote and volume pricing.
