Description

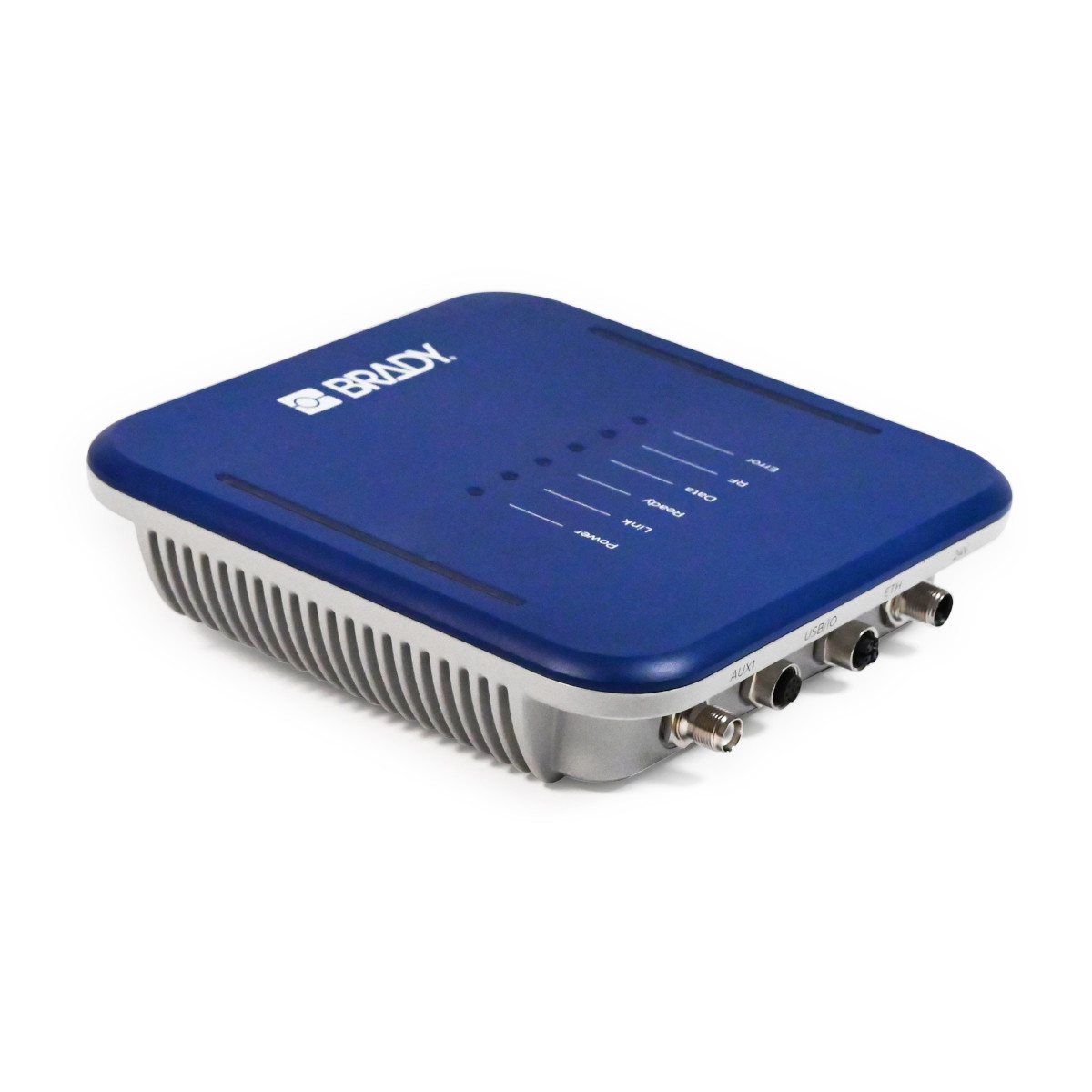

The Brady IRX200 brings RFID straight onto the production line. It is a sealed, all-in-one UHF RFID reader with an integrated high-gain antenna, an on-board edge computer and native industrial protocols, so work-in-progress, totes, pallets and tools are identified automatically and the data flows directly to your PLC, MES or ERP.
Developed with Nordic ID technology and running Brady’s Nordic ID IoT platform on Linux, this EU version (B-IRX200-EU) operates in the ETSI band used in the UAE and GCC.
Native OT and IT integration
The IRX200 is a PROFINET IO device (conformance class B, 1 ms cycle time) and an OPC UA Auto-ID server. Automation engineers can add it to a Siemens or other PROFINET network like any field device, while IT systems subscribe to the same tag data over Ethernet.
Edge computing on board
A dual-core A53 processor runs reader applications for filtering, logic and decisions, while quad-core R5F co-processors handle real-time functions. With 2 GB RAM and 8 GB flash, the reader can act on reads locally instead of sending raw data to a server.
Rugged and simple to install

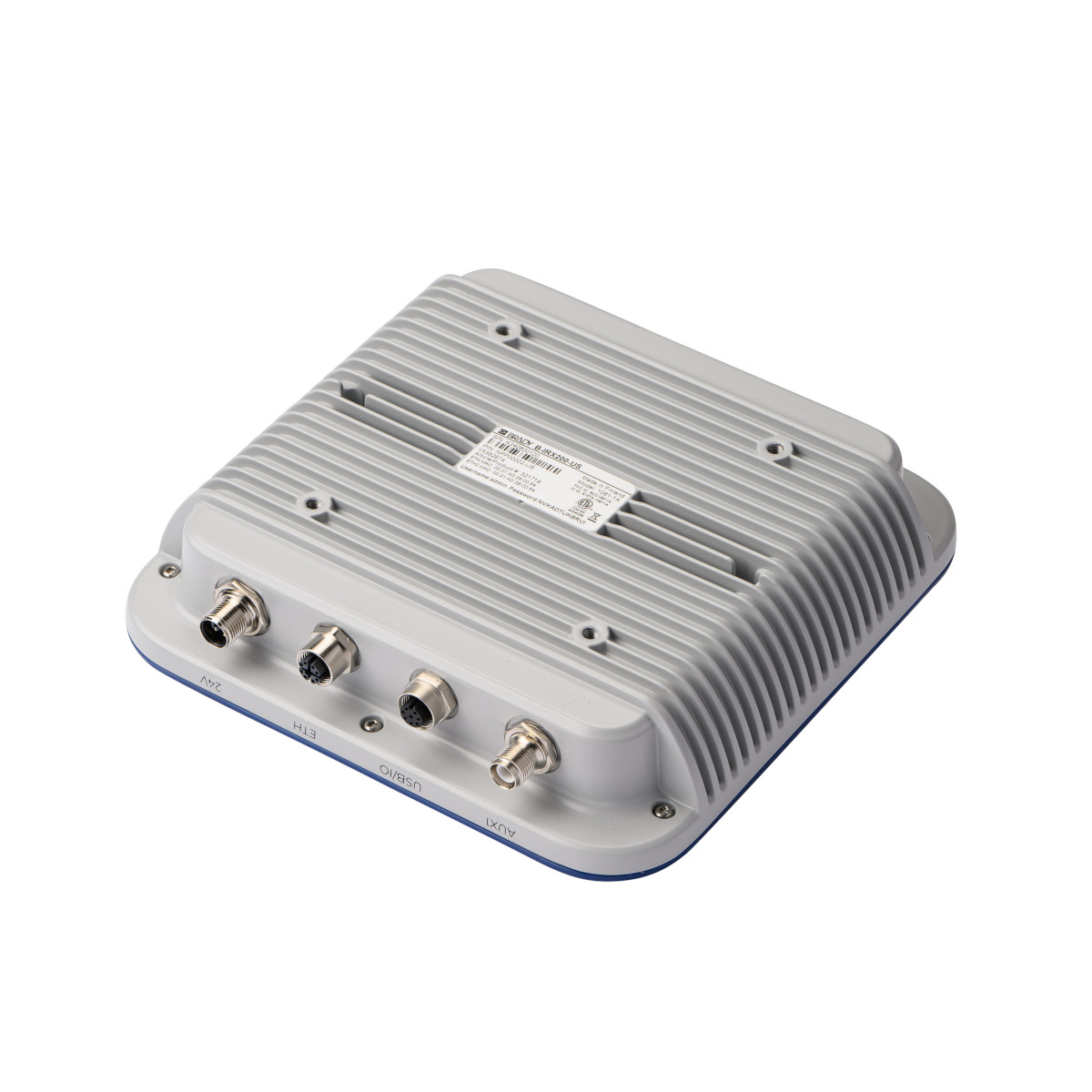

The IP67 housing is shock- and vibration-tested (EN 60068-2-27 and 2-6) for conveyors, AGV stations and dock doors. The integrated circularly polarised antenna removes external cabling, and an RP-TNC port adds a second antenna when needed. It mounts with four screws or a VESA 100 bracket.
Key features
- All-in-one reader with integrated +7.5 dBic antenna
- Up to 1,000 tags per second, -87 dBm sensitivity
- PROFINET IO (CC-B, 1 ms) and OPC UA Auto-ID server
- Edge computer: dual-core A53 plus quad-core R5F co-CPUs
- IP67, shock and vibration tested
- Extra RP-TNC port for one external antenna

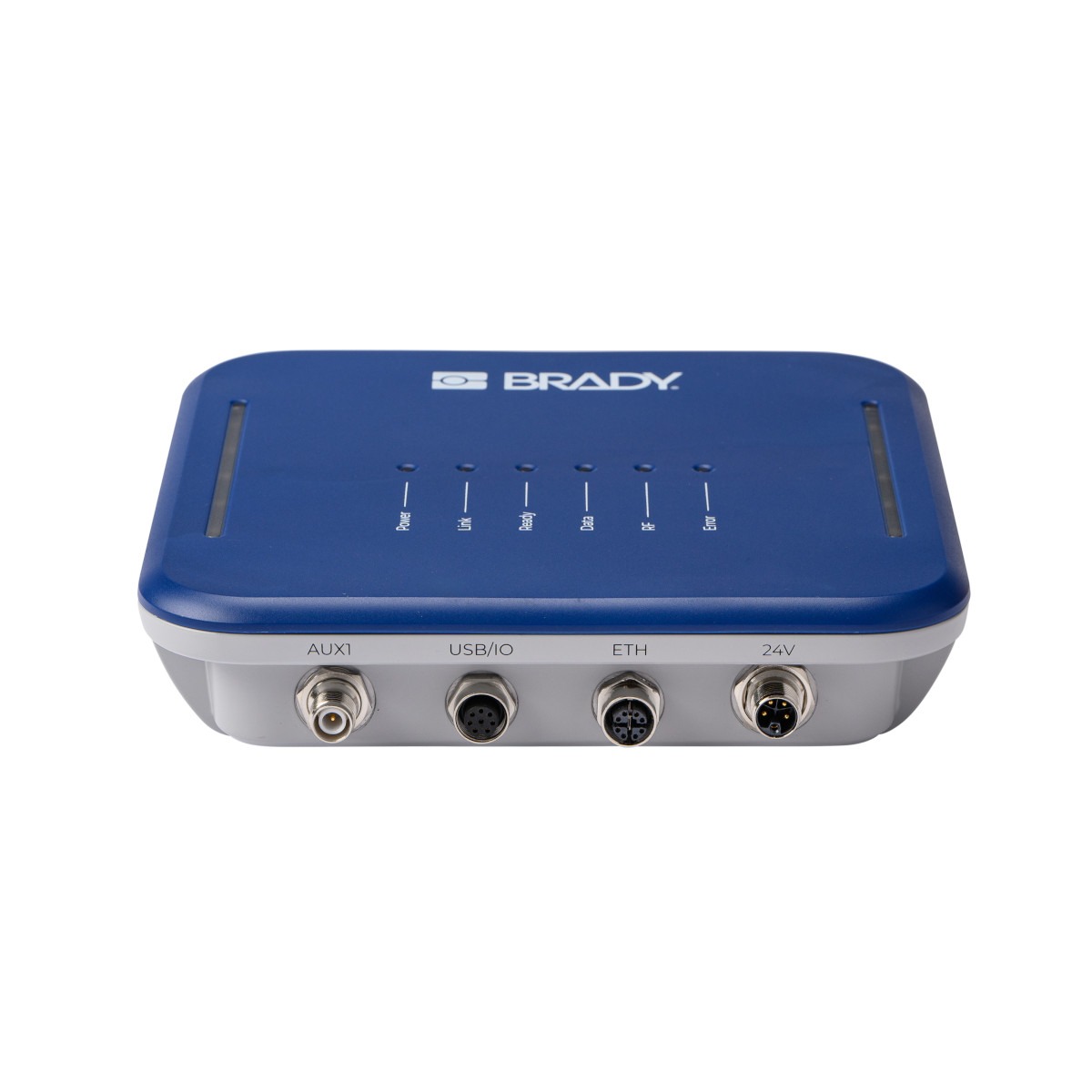

- 24 VDC M12 power, Ethernet, USB and I/O
- Compatible with the Impinj Gen2X toolbox
Technical specifications
| Part number | B-IRX200-EU (article 321713) |
|---|---|
| RFID standard | EPC Gen2v2 / ISO 18000-63 (RAIN) |
| RF power | Max 2 W ERP (33 dBm) / 3.3 W EIRP |
| Receive sensitivity | -87 dBm |
| Read rate | Up to 1,000 tags per second |
| Antenna | Integrated, circularly polarised, max +7.5 dBic; 1 × RP-TNC external port (30 dBm) |
| Processor and memory | Dual-core A53 + quad-core R5F co-CPUs; 2 GB RAM, 8 GB flash |
| Industrial protocols | PROFINET IO device CC-B (1 ms cycle), OPC UA Auto-ID server |
| Interfaces | Ethernet, USB, I/O |
| Power | 24 VDC, 1.25 A via M12-L; max 12 W transmitting, 4 W idle |
| Environment | IP67, -20 °C to 55 °C, EN 60068-2-27 / 2-6 |
| Size and weight | 200 × 200 × 48 mm, 1.1 kg |
What’s in the box
Brady IRX200 RFID reader with safety and regulations card. Power supply, M12 cables and mounting bracket are sold separately.
Ideal for
Production and work-in-progress tracking, conveyor and sortation lines, returnable totes and pallets, AGV and docking stations, tool and fixture identification, and Industry 4.0 projects that need RFID data inside the PLC.
Why buy the Brady IRX200 from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live, including PLC, MES and OPC UA integration. Protect your investment with our annual maintenance contract (AMC), or contact our team for a project quote and volume pricing.
