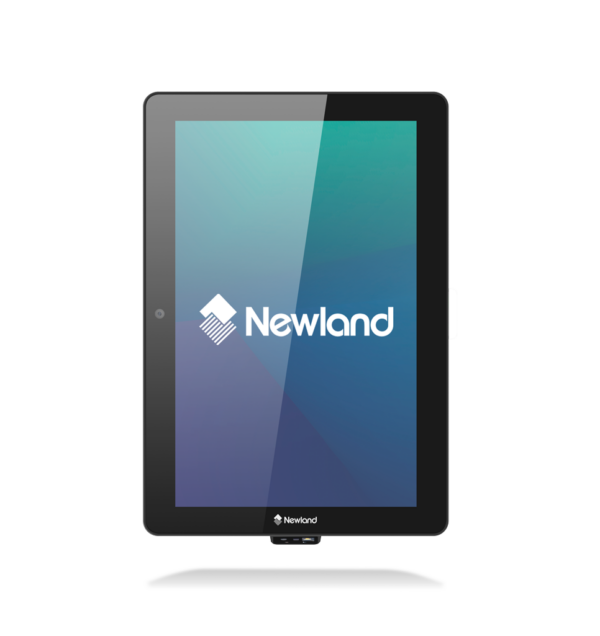

Overview – NQuire 1000 Manta III
The Newland NQuire 1000 Manta III is a versatile interactive micro-kiosk built to meet the needs of retail, hospitality, logistics, and access control environments. With its 10.1-inch capacitive touchscreen, fast scanning engine, and rich connectivity options, it offers a perfect balance between performance, flexibility, and compact design.
Key Features & Specifications
Display & Design
-
10.1-inch capacitive multi-touch display with 1280 × 800 resolution.
-
Supports both landscape and portrait orientation.
-
VESA-75 mounting for wall, counter, or stand installations.
-
Slim profile and modern look suitable for customer-facing applications.
Processor & Operating System
-
Operating System: Android 13 (GMS certified).
-
Processor: 2.0 GHz octa-core, 64-bit CPU for smooth multitasking.
-
Memory: 4 GB RAM with 64 GB flash storage.
-
Storage expansion supported via Micro-SD card.
Scanning & Imaging
-
High-performance megapixel CMOS 2D imager supporting all common 1D and 2D barcode symbologies.
-
Laser aimer for accurate and fast targeting.
-
Optimized for scanning both printed and digital barcodes on mobile screens.
-
Integrated 8 MP front-facing camera for imaging and verification.
Connectivity
-
Dual-band WiFi and Bluetooth 5.2.
-
Ethernet (RJ-45) with optional Power over Ethernet (PoE).
-
Optional 4G LTE and GPS module for remote or mobile deployments.
-
USB-C and USB-A ports for accessories.
-
Micro-SD slot for additional storage.
-
Optional NFC and MSR (magnetic stripe reader) modules for payments or ID verification.
Power & Durability
-
Standard power supply: 12V / 3A.
-
Slim and compact design, easy to integrate into existing infrastructure.
-
Operating temperature range: -10 °C to 50 °C.
-
Storage temperature range: -20 °C to 60 °C.
Device Management
-
Compatible with Ndevor, Newland’s Mobile Device Management platform.
-
Enables centralized control, remote updates, monitoring, and app distribution across multiple kiosks.
-
Ideal for large-scale rollouts in retail or multi-site businesses.
Warranty
-
Supplied with a 2-year warranty as standard, with options for extended coverage depending on the market.
Benefits & Use-Cases
-
Retail & Supermarkets: Price checking, loyalty program enrollment, and product information lookup.
-
Hospitality & Events: Self-check-in, ticket validation, and guest management.
-
Warehousing & Logistics: Quick scanning for stock checks and inventory tracking.
-
Access Control & Membership Services: Verification of tickets, passes, or ID cards with optional NFC or MSR modules.
-
Digital Signage & Promotions: Display advertisements, promotional videos, or customer instructions on the 10-inch screen.
Advantages
-
Modern Android platform ensures compatibility with the latest apps and security updates.
-
Compact size makes it suitable for environments where space is limited.
-
Wide range of connectivity options ensures reliability in any setup.
-
Expandable modules like NFC and MSR increase functionality without needing new hardware.
-
Centralized device management reduces IT workload and simplifies maintenance.
