Description

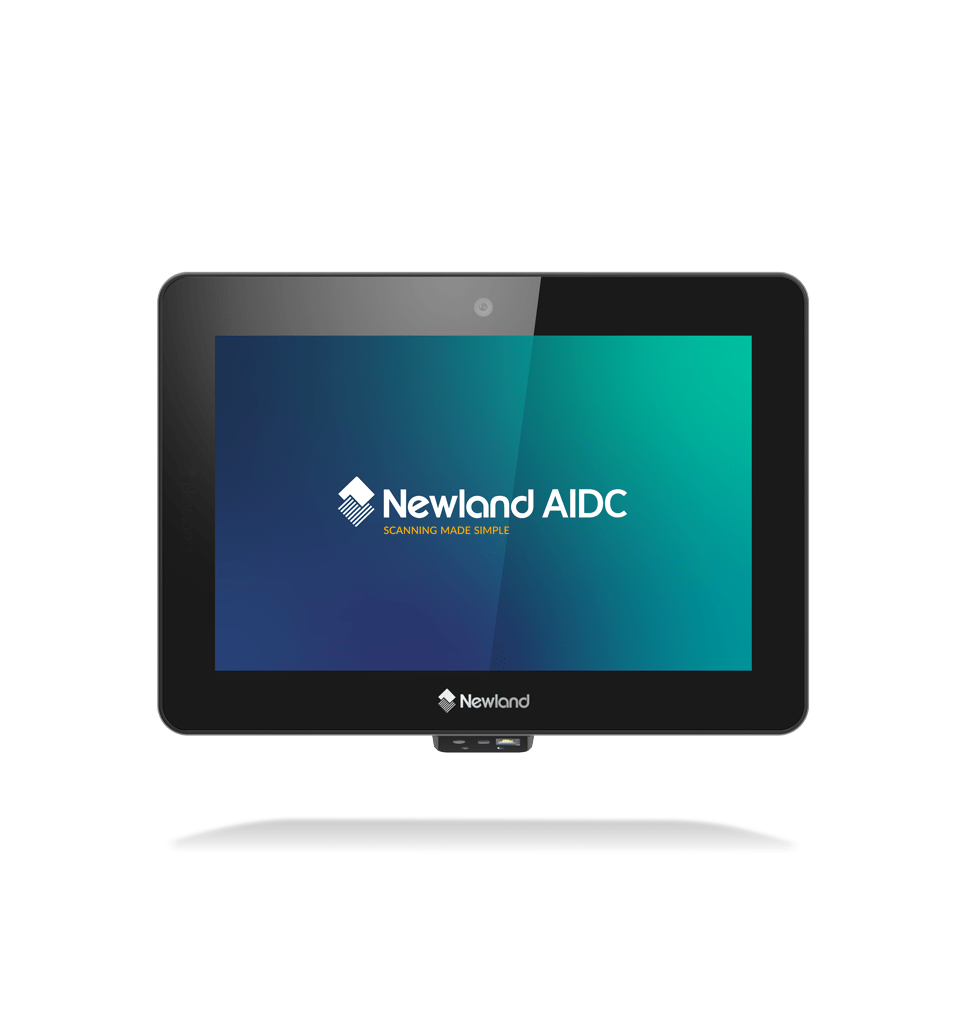

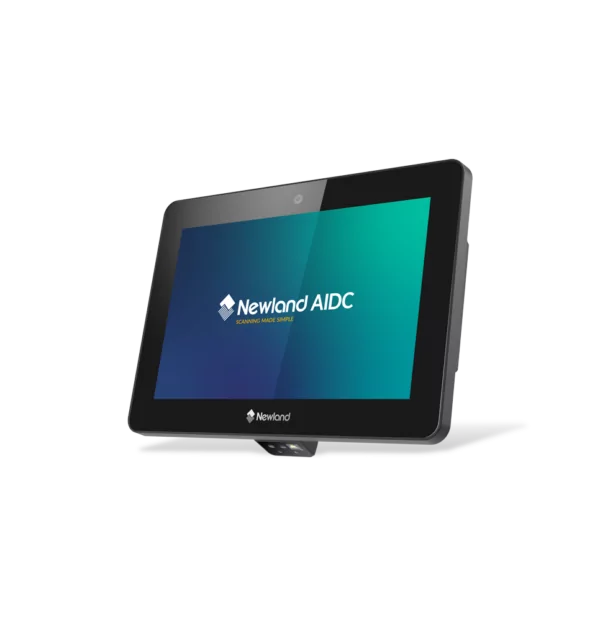

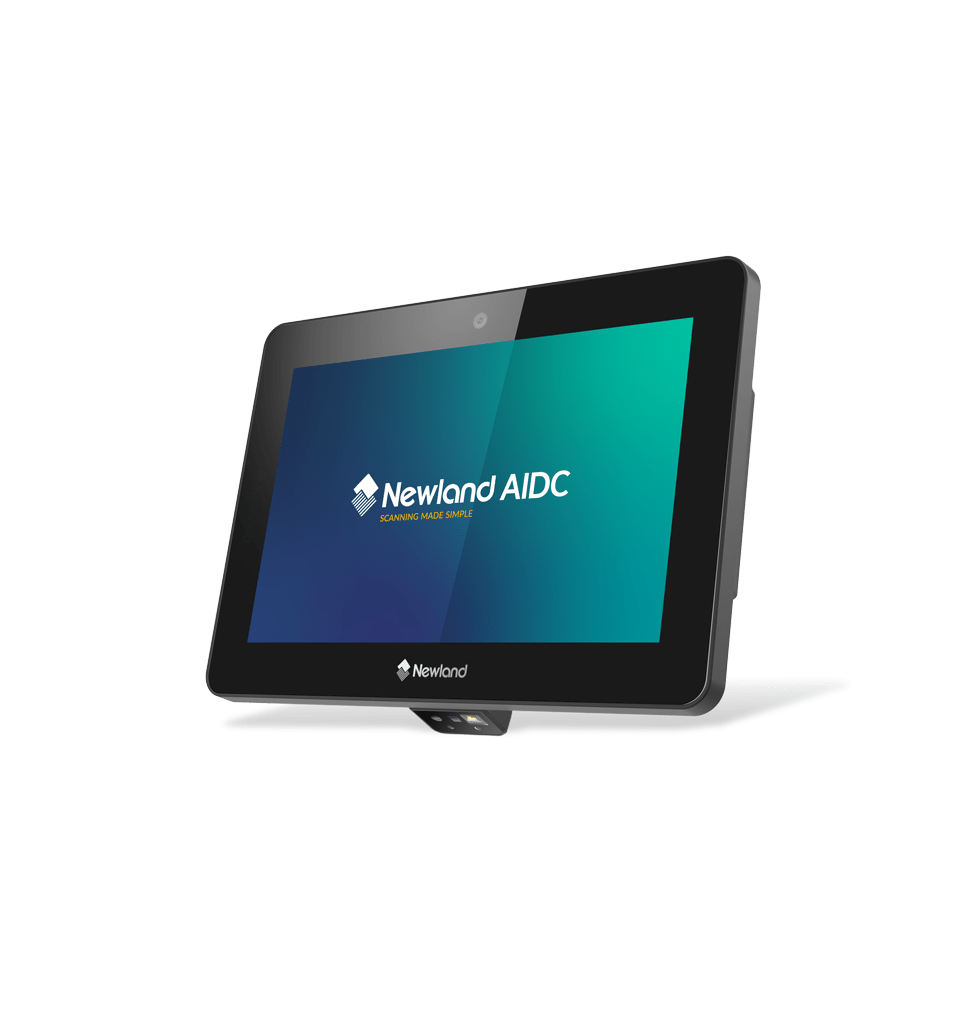

Enabling self-service is easy with the NQuire 750 Stingray II. Its 7" touchscreen (1280×800, 360 nits) is large enough for comfortable interaction — menus, forms, product catalogs — while staying compact enough for counters, tables, and shelf-edge installations. A 2.0 GHz octa-core processor and Android 13 with GMS keep the interface responsive under continuous public use.
Megapixel scanning reads 1D and 2D barcodes — including Code 39, EAN-13, QR, PDF417, and DataMatrix — at working distances from as close as 55mm up to 610mm depending on symbology and code density, which covers everything from a small QR code held close to the screen to a shelf label read from arm’s length.
Orientation and mounting flexibility
Flexible VESA75 mounting supports both landscape and portrait orientation from the same chassis, so the same hardware can serve as a table-top ordering terminal in one deployment and a wall-mounted price-checker in another. Connectivity covers WiFi, Bluetooth, 4G, Ethernet with PoE, and GPS, and optional NFC and MSR modules extend it for payment tap-and-go and loyalty card use cases. The included Ndevor MDM software makes managing a fleet of these units across multiple store locations straightforward from a single console.
Key features
- 7" capacitive touchscreen, 1280×800 resolution, 360 nits brightness
- Android 13 with GMS, 2.0 GHz octa-core 64-bit processor, 4GB RAM, 64GB Flash storage
- Megapixel 1D & 2D barcode scanning (Code 39, EAN-13, QR, PDF417, DataMatrix)
- 8MP front camera
- WiFi 802.11 a/b/g/n/ac (dual-band 2.4/5GHz), Bluetooth 5.2, 4G LTE across multiple frequency bands, Ethernet with PoE (IEEE 802.3af/at), GPS
- USB-C, USB-A, Ethernet, GPIO, microSD, and dual SIM/TF interfaces
- Landscape/portrait VESA75 mounting
- Optional NFC and MSR reader modules
- IP54 front rating; operating range -10°C to 50°C; ESD protection to ±12kV air / ±6kV direct discharge
- Free Ndevor MDM software included
Where it fits

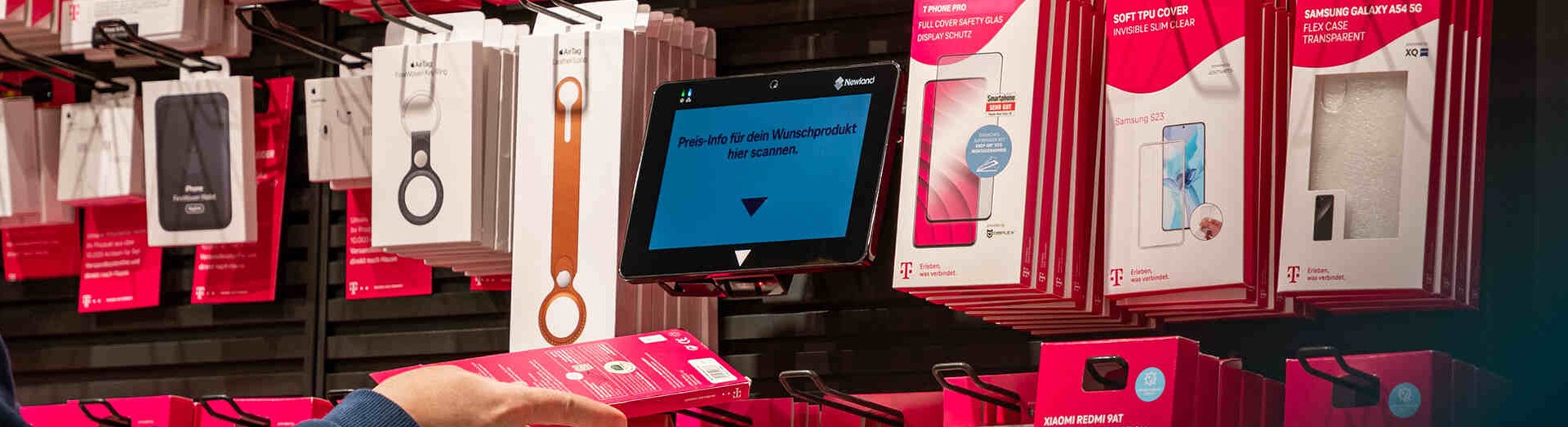

Retail self-checkout and shelf labeling, table-top ordering systems in food and beverage outlets, healthcare check-in, and hospitality self-service are the core use cases. It sits between the smaller NQuire 500 Skate II and the larger NQuire 1000 Manta III in your Micro Kiosks range, giving customers a mid-size option for applications that need a bigger screen than the 500 but not the footprint of the 1000.
Included and optional accessories
A wall mount bracket (VESA75) and multiplug adapter are included. A desktop stand (STD1200), NFC reader module (NLS-NQNFC-01), MSR reader module (NLS-NQMSR-01), NQuire IO Kit (NLS-NQIOKIT-01), and power supply (ADP0043) are available as optional add-ons.
Part numbers: NLS-NQUIRE700-W4-SP (portrait orientation), NLS-NQUIRE700-W4-SL (landscape orientation)
Warranty: 2 years standard, with 1- and 3-year extensions and 3–5 year service contracts available.
