Description

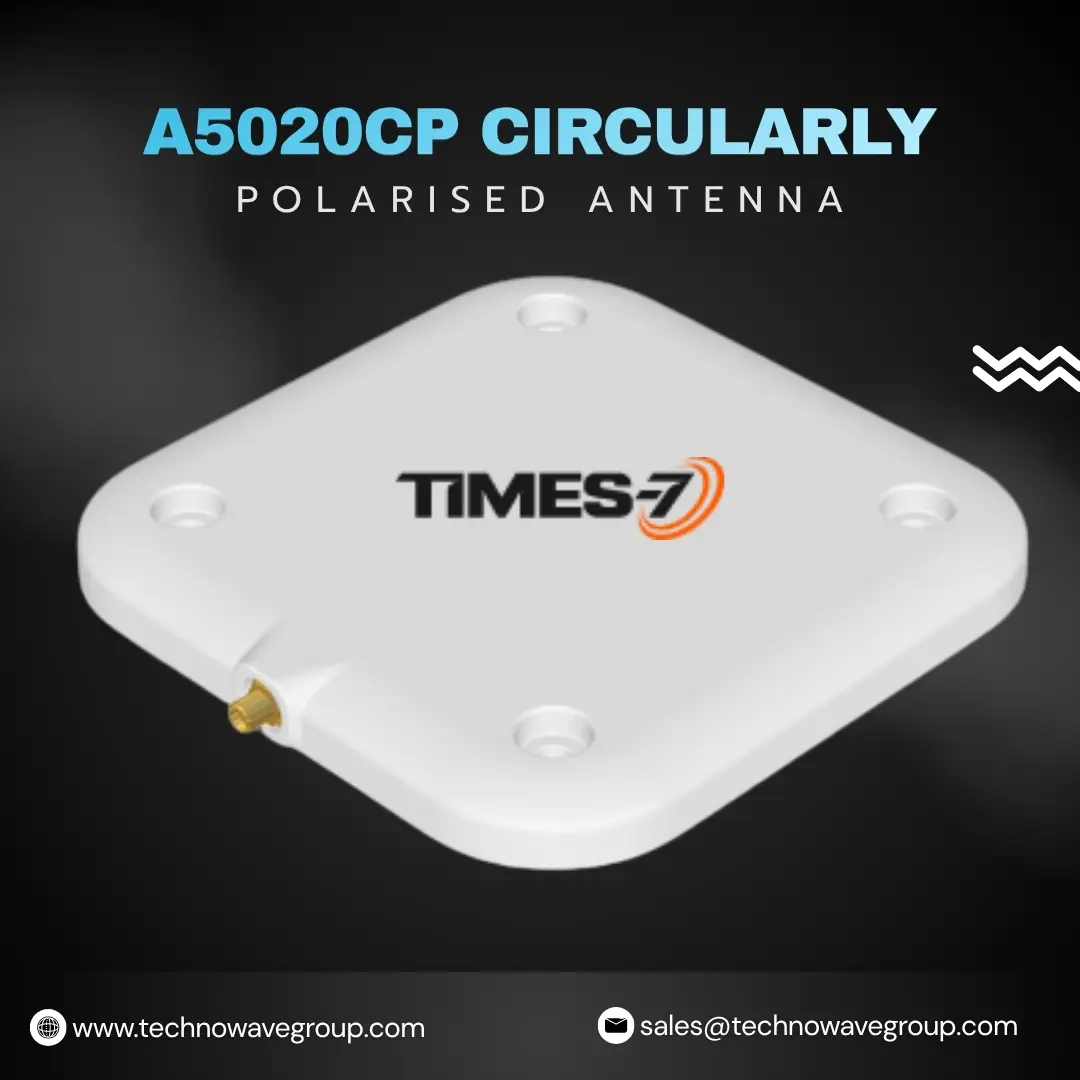

Times-7 A5020CP Circularly Polarised RAIN RFID Antenna
The Times-7 A5020CP is a compact, general-purpose circularly polarised RAIN RFID antenna engineered for reliable RFID tag detection across a wide range of commercial and industrial applications.
Its combination of circular polarisation, a symmetrical radiation pattern and a broad 105° beamwidth helps provide consistent coverage while simplifying RFID read-zone configuration. The antenna is particularly useful in applications where tagged items may approach the reader from different directions or where tag orientation cannot be controlled.
Broad and Consistent RFID Read Coverage
The A5020CP provides a 5 dBiC gain and a symmetrical 105° beamwidth in both planes. This wide radiation pattern helps create an even read area around the antenna, making it suitable for general inventory, asset and item-level tracking applications.
The antenna offers a typical read range of approximately four metres, although the actual performance of an RFID system will depend on the reader, RFID tag, transmitted power, mounting position and surrounding environment.
Circular Polarisation for Variable Tag Orientation
Circular polarisation allows the A5020CP to communicate with RFID tags positioned at different angles. This is valuable in environments where products, cartons, assets or returnable items may not remain consistently aligned with the antenna.
It can help improve tag-detection reliability in portals, conveyor systems, shelving, cabinets, packing areas and other operational environments involving variable item movement.
Compact and Space-Efficient Design
Measuring approximately 150.7 × 149.4 × 14.5 mm, the A5020CP delivers effective far-field RFID performance within a small enclosure.
Its compact footprint and slim 14.5 mm profile make it suitable for installations where larger RFID antennas may be difficult to accommodate, including cabinets, kiosks, workstations, smart shelves and compact RFID portals.
IP68-Rated Indoor and Outdoor Protection
The A5020CP features an IP68 environmental rating, providing strong protection against dust and water ingress. Its corrosion-resistant housing is designed for permanent outdoor installations as well as demanding indoor environments.
This makes the antenna suitable for warehouses, loading areas, industrial facilities, logistics environments, manufacturing sites, healthcare facilities and controlled operational spaces.
Flexible Flush and VESA Mounting
Integrated mounting holes support flush installation and VESA-compatible mounting with 100 × 100 mm hole spacing. These mounting options allow the antenna to be installed on walls, frames, cabinets, portals, equipment and dedicated antenna brackets.
An optional connector-protection backplate can also be added where the SMA connector and antenna cable may be exposed to moving machinery, accidental impacts or demanding operating conditions.
Key Features
- Compact circularly polarised RAIN RFID antenna
- 5 dBiC antenna gain
- Symmetrical 105° beamwidth in both planes
- Approximately four-metre typical read range
- IP68-rated environmental protection
- Corrosion-resistant outdoor-ready enclosure
- Slim 14.5 mm antenna profile
- FCC and ETSI frequency variants
- SMA antenna connector
- Flush and VESA-compatible mounting
- Optional connector-protection backplate
- Suitable for indoor and outdoor deployments
Common Applications
The Times-7 A5020CP can be integrated into RFID solutions for:
- Inventory control and stock management
- Asset and equipment tracking
- RFID portals and access points
- Dock-door and logistics monitoring
- Delivery and distribution portals
- Conveyor and packing-station tracking
- Retail stock visibility
- Smart shelving and cabinets
- Document and file tracking
- Healthcare asset tracking
- Medication and vaccine tracking
- Surgical instrument tracking
- Tool and work-in-progress tracking
- Returnable transport-item tracking
- Baggage-handling systems
- Vehicle access applications
- Under-counter item tracking
- Point-of-sale RFID systems
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | Times-7 A5020CP |
| Antenna Category | Far-field RAIN RFID antenna |
| Polarisation | Circularly polarised |
| Gain | 5 dBiC |
| Beamwidth | 105° in both planes, symmetrical |
| Typical Read Range | Approximately 4 metres |
| ETSI Frequency | 865–868 MHz |
| FCC Frequency | 902–928 MHz |
| Dimensions | 150.7 × 149.4 × 14.5 mm |
| Environmental Rating | IP68 |
| Connector Type | SMA |
| VESA Mounting Pattern | 100 × 100 mm |
| Installation Environment | Indoor and outdoor |
Versatile Antenna for General RFID Deployments
The A5020CP is a practical antenna for projects requiring broad RFID coverage, compact dimensions and strong environmental protection. Its uniform beam pattern supports straightforward read-point configuration, while its mounting flexibility allows it to be incorporated into both new RFID infrastructure and existing operational environments.
Contact Technowave to discuss the appropriate Times-7 antenna, fixed RFID reader, RFID tags, mounting accessories and software configuration for your application.
