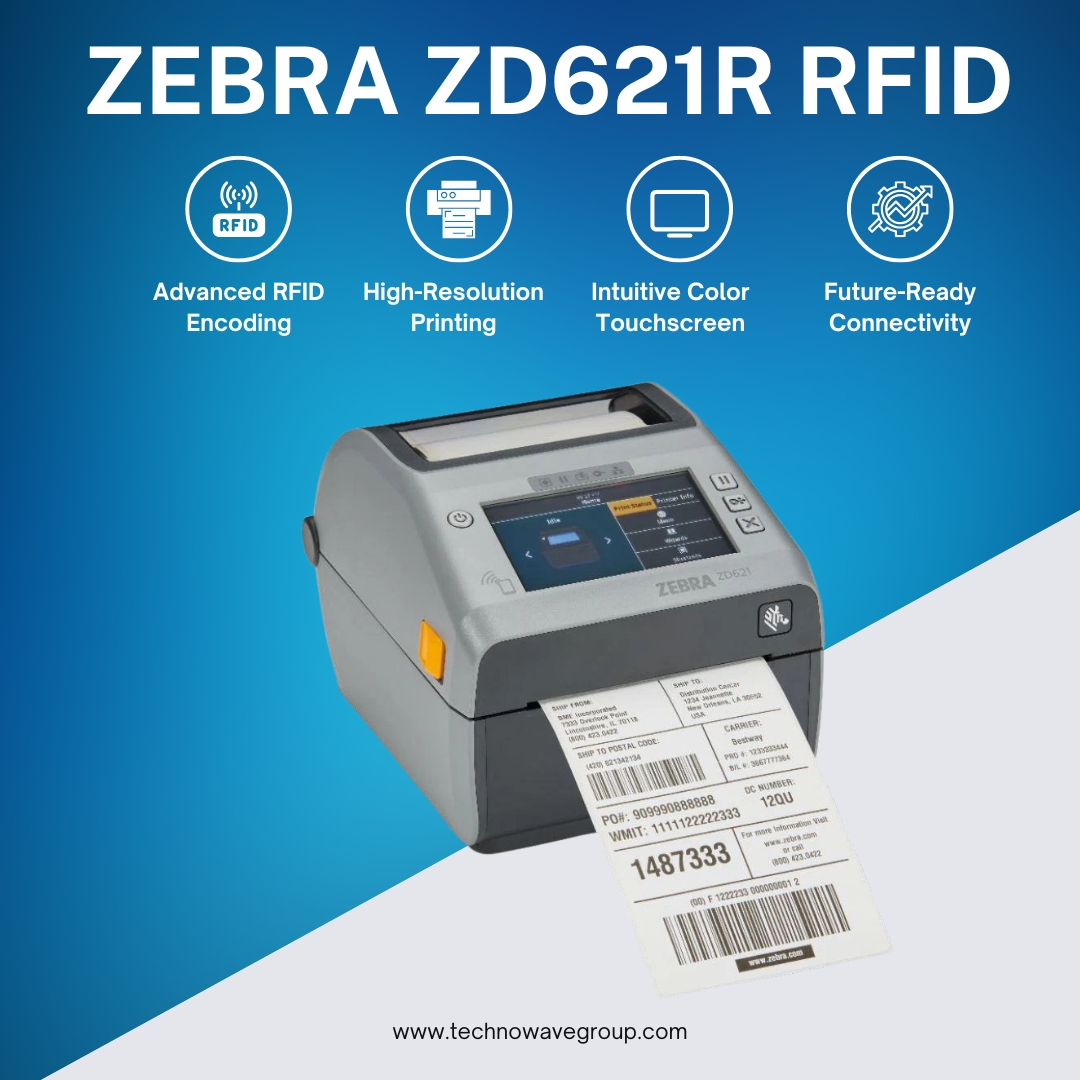

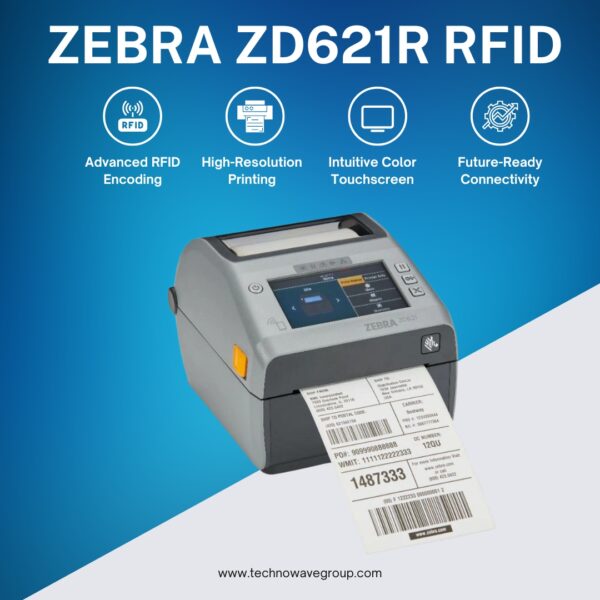

Zebra ZD621R RFID Thermal Transfer Desktop Printer

Overview – Zebra ZD621R RFID

The Zebra ZD621R RFID is a premium thermal transfer desktop printer that combines next-generation RFID capabilities, powerful performance, and unmatched security for long-term, mission-critical use.
Designed for businesses that demand outstanding print quality, flexible applications, and future-ready technology, the ZD621R sets the benchmark for RFID desktop printing.

Engineered with Zebra’s exclusive Print DNA software suite, the ZD621R simplifies setup, operation, management, and maintenance—giving you confidence and control over your printing infrastructure.
Whether you need portability, field-upgradable options, or enhanced security, the ZD621R is built to power through your toughest printing requirements, day after day.

Benefits :

• Simple to Use: Intuitive color LCD touchscreen, user-friendly media guides, and OpenACCESS™ design for fast ribbon and media loading.
• Flexible for More Use Cases: Supports both thermal transfer and RFID encoding models for broader applications.
• Smart Management: Zebra’s Print DNA suite enables secure, remote setup, monitoring, and troubleshooting.
• Future-Ready Design: Field-installable connectivity, cutters, and peeler options allow you to scale as your business evolves.
• Reliable Performance: Dual-wall frame construction, ENERGY STAR® certification, and rugged build ensure years of dependable operation.

Features

• Print Methods: Thermal Transfer (standard)
• Programming Languages: ZPL & EPL
• User Interface: 4.3″ full-color LCD touchscreen with 5 status icons and 3 physical buttons
• Connectivity Options: USB 2.0, USB Host, Serial, Ethernet (10/100); optional 802.11ac Wi-Fi & Bluetooth
• Additional Functions: Real-Time Clock (RTC), Media dancer for consistent print quality, ENERGY STAR® certified
• Durability: Dual-wall frame construction with Zebra’s proven reliability

Ordering Options

Available models include multiple resolutions (203 dpi and 300 dpi), with or without RFID, and options such as cutters and peelers.

• ZD6A142-301FR1EZ – 203 dpi, USB, Ethernet, Serial, BTLE5, RFID-UHF, Color LCD
• ZD6A143-301FR1EZ – 300 dpi, USB, Ethernet, Serial, BTLE5, RFID-UHF, Color LCD
• ZD6A142-321LR1EZ – 203 dpi, with cutter, 802.11ac Wi-Fi, RFID-UHF
• ZD6A143-321LR1EZ – 300 dpi, with cutter, 802.11ac Wi-Fi, RFID-UHF

Other SKUs available for peelers, connectivity variations, and regional cords.

What’s Included in the Box?

• Zebra ZD621R printer
• 300 m ribbon core adapters (for non-Zebra ribbons) – 2 pcs
• AC power supply & power cord(s)
• USB cable
• Quick Start Guide
• Regulatory Guide

Technical Specifications

• Print Resolution: Standard 203 dpi (8 dots/mm); optional 300 dpi (12 dots/mm)
• Maximum Print Width: 4.09 in. (104 mm)
• Maximum Print Speed: Up to 8 in./sec (203 dpi); 6 in./sec (300 dpi)
• RFID Support: EPC Gen2 v2 / ISO 18000-63 protocols, adaptive encoding for excellent media flexibility
• Frequency Range: 860–960 MHz
• Memory: 128 MB SDRAM, 256 MB Flash (with user-available storage)
• Dimensions (W × H × D): 7.6 in × 7.5 in × 10.0 in (193 mm × 191 mm × 254 mm)
• Weight: 2.5 kg (5.5 lbs)
• Operating Temperature: 4.4°C to 41°C (40°F to 105°F)

FAQs

Q1: What RFID protocols does the ZD621R support?
A1: EPC Gen2 v2 and ISO 18000-6C.

Q2: What is the frequency range?
A2: 860 to 960 MHz (global UHF range).

Q3: What connectivity options are available?
A3: Standard – USB 2.0, USB Host, Serial, Ethernet. Optional – Wi-Fi (802.11ac) and Bluetooth.

Q4: What is the maximum print resolution?
A4: Standard 203 dpi, with an optional 300 dpi upgrade.

Q5: What is the maximum print width?
A5: Up to 4.09 inches (104 mm).

Q6: Is it energy efficient?
A6: Yes, the ZD621R is ENERGY STAR® certified for low power consumption.

Why Buy from Technowave Group?

• Genuine Zebra products with full warranty
• Expert consultation for RFID and printing solutions
• Local technical support and after-sales service
• Flexible implementation tailored to your business needs

Get the best price available for Zebra ZD621R — click Get Quote to request a customized offer today.
