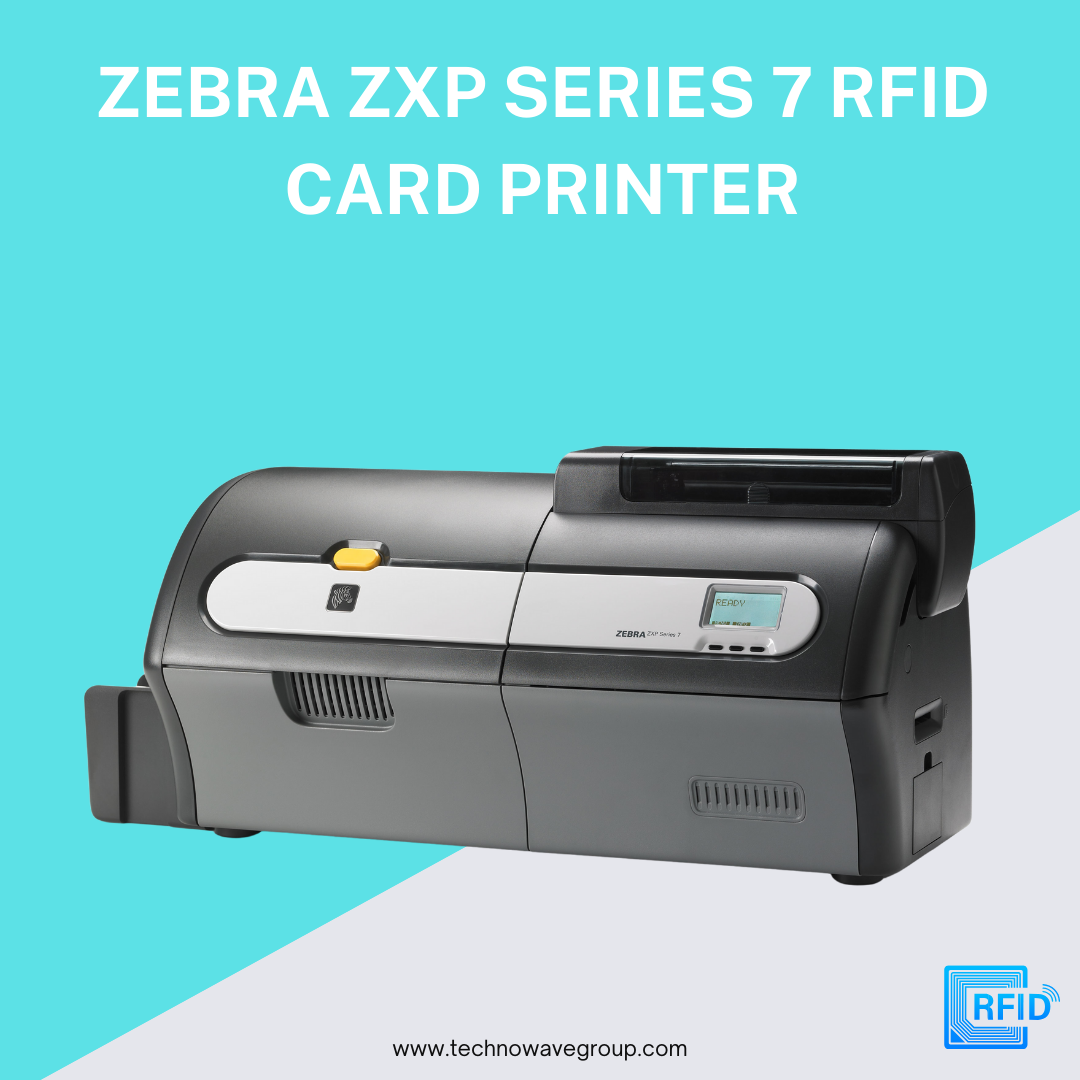

Zebra ZXP Series 7 RFID Card Printer – Smart-Card & Lamination

Overview – Zebra ZXP Series 7 RFID Card Printer

Built for demanding badge programs and long duty cycles, the Zebra ZXP Series 7 RFID Card Printer combines high throughput with consistent print quality and easy operation. Large input/output hoppers, color-coded media paths, and toolless ribbon loading keep operators productive. Zebra’s ix Series ribbons and True Secure laminates help lower the cost per card while extending card life. With flexible encoders (magstripe, contact smart card, contactless/HF, and select UHF options) and optional lamination, the ZXP Series 7 scales from everyday staff IDs to high-security credentials.

Who It’s For

• Corporate and government ID centers

• Universities and schools

• Hospitals and labs

• Membership, loyalty, and gift card programs

• Event and visitor management bureaus

• Service bureaus and print shops running large batches

Key Benefits (What buyers care about)

• Fast production: Engineered for rapid card issuance in batch or on-demand workflows.

• Secure & durable cards: Optional single/dual lamination improves abrasion, UV, and tamper resistance.

• RFID & smart-card ready: Choose magstripe, contact, and contactless encoders; select models support UHF (RAIN/EPC Gen2).

• Low operator effort: Auto card-thickness adjustment, intuitive LCD, and high-capacity hoppers minimize interruptions.

• Enterprise connectivity: USB and Ethernet standard; Wi-Fi available on certain configurations.

• Lower total cost: High-yield ix Series ribbons and wasteless lamination reduce consumable waste and downtime.

Technical Highlights (at-a-glance)

• Print technology / quality: Dye-sublimation color and monochrome thermal transfer; 300 dpi

• Approximate throughput: Up to ~300 full-color single-sided cards/hour; up to ~1,300+ monochrome single-sided cards/hour

• Hoppers: Large input and output with separate reject tray for error handling

• Card types: CR-80/ID-1; supports PVC and common composites (check your use case for media compatibility)

• Card thickness: Typical 30 mil; accepts thin or thick cards within supported range

• Encoding options: ISO magstripe; contact (ISO 7816); contactless/HF (e.g., MIFARE/DESFire); select UHF configurations

• Lamination: Optional single- or dual-sided; wasteless design to reduce cost

• Interfaces: USB 2.0, 10/100 Ethernet; optional 802.11 b/g Wi-Fi

• Supplies: Zebra True Colours ix Series ribbons; Zebra True Secure laminates

• Management: Status LCD, driver toolsets, remote management utilities

• Warranty: Standard Zebra warranty (region and SKU dependent)

Typical Applications & Use Cases

• Photo ID badges with access control

• Contactless campus IDs with cashless payment

• Staff badges that withstand frequent cleaning

• Membership and loyalty cards with anti-counterfeit features

• Event passes with fast on-site encoding and printing

What to Decide Before You Buy (Checklist)

1. Print sides: Single-sided or dual-sided?

2. Lamination: None, single-sided, or dual-sided lamination based on durability/security needs.

3. Encoding: Magstripe only, HF contact/contactless (e.g., MIFARE/DESFire), or UHF (RAIN). Specify exactly which technology your cards require.

4. Connectivity: USB/Ethernet standard; add Wi-Fi if you need cable-free deployment.

5. Card volumes: Estimate monthly volume and peak bursts to select ribbon/laminate yields and maintenance cadence.

6. Card media: PVC vs. composite cards, thickness, and any specialty materials (e.g., PET-G) needed for your environment.

7. Software & integration: Confirm your issuance software and access-control system compatibility.

8. Security controls: Physical locks, card capture/reject policies, and laminate types for your threat model.

Supplies & Accessories (Planning Guide)

• Ribbons: Full-color YMCKO, YMCKOK (for dual-sided), monochrome options for high-volume text or barcode cards.

• Laminates/Overlays: Clear or holographic; choose based on durability and anti-counterfeit needs.

• Cleaning kits: Scheduled cleaning extends printhead life and preserves print quality.

• Card stock: PVC or composite for higher durability; pre-encoded or blank depending on workflow.

• Encoders: Order the printer with the exact encoder set required; some options are field-upgradable on specific SKUs.

Frequently Asked Questions

Q1. Does it support RFID/contactless cards?
Yes. Contactless/HF and contact smart-card encoders are available. Some configurations also support UHF (RAIN/EPC Gen2). Confirm the exact encoder at purchase.

Q2. Can I add Wi-Fi or UHF later?
Many configurations allow certified technicians to add certain options later. Check the specific model’s upgrade path before ordering.

Q3. Is lamination required?
Not required, but recommended for high-use or high-security cards. Lamination extends card life and deters tampering.

Q4. What print speed can I expect?
Throughput depends on card design, ribbon type, print mode (single/dual-sided), and lamination. The ZXP Series 7 is engineered for high-volume environments and fast batch output.

Q5. What card materials should I use?
Standard PVC works for most programs; composite cards are better for high-temperature environments or heavy use, especially if lamination is applied.

Q6. What software works with it?
It integrates with common card issuance and access-control workflows. Confirm driver and software compatibility with your IT environment before deployment.
