Description
The Chainway Ant-RC05 is a small, general-purpose UHF RFID antenna for fixed readers such as the Chainway URA4 and UR4. Right-hand circular polarisation reads tags in any orientation, and its 5 dBi gain gives a compact, controlled read zone.

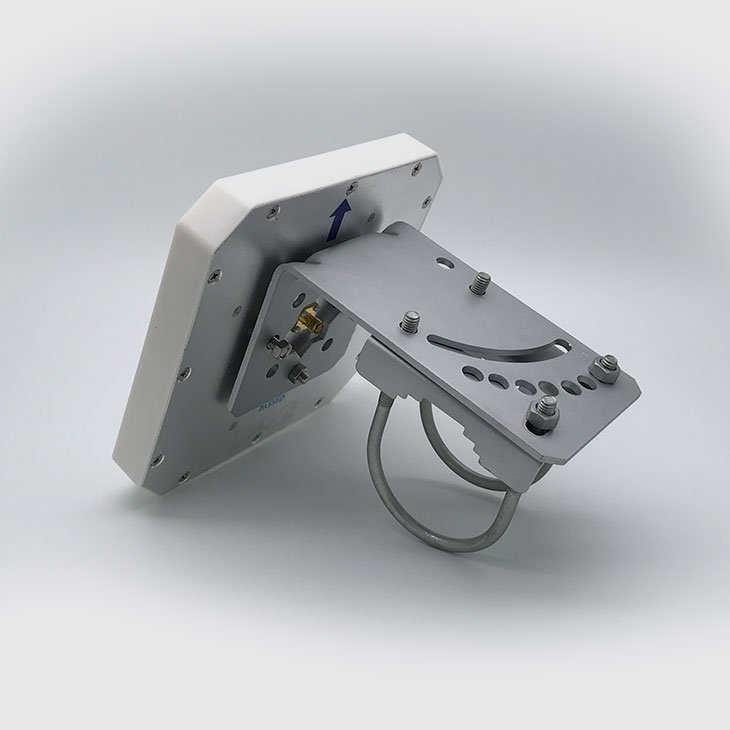

At 145 x 145 x 20 mm it fits where larger panels will not, and the supplied bracket mounts it on a wall or a pole.
Controlled, short-range coverage
A 3 dB beamwidth of 80° horizontal and 70° vertical and a front-to-back ratio of 17 dB or more create a wide but well-defined read zone, ideal for counters, cabinets, shelves and single doorways.
Rugged for any location

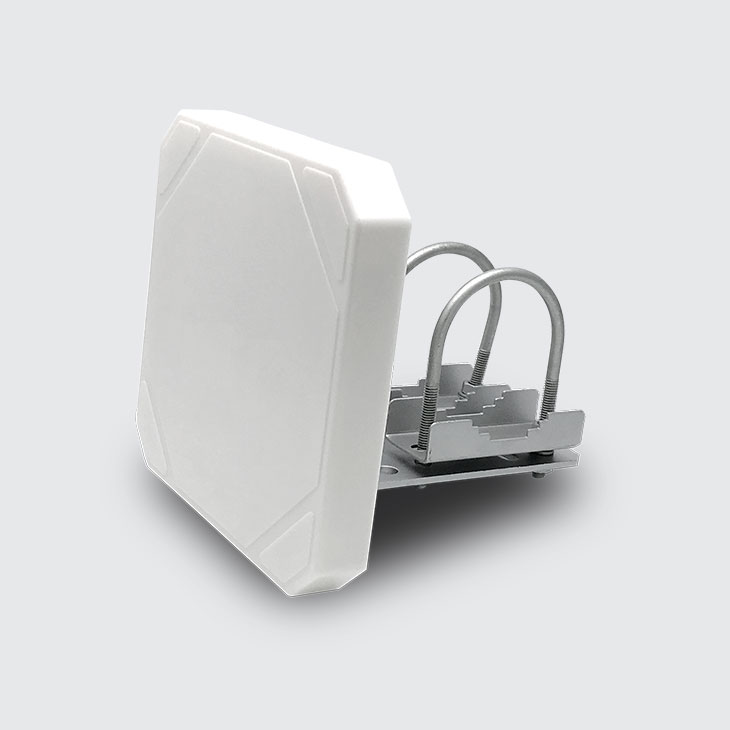

The white ABS radome is sealed to IP67 and the antenna operates from -40 °C to 60 °C, so it can be used indoors or outdoors. The bracket fits poles of 30-50 mm and is rated for wind speeds up to 60 m/s.
Works with global UHF readers

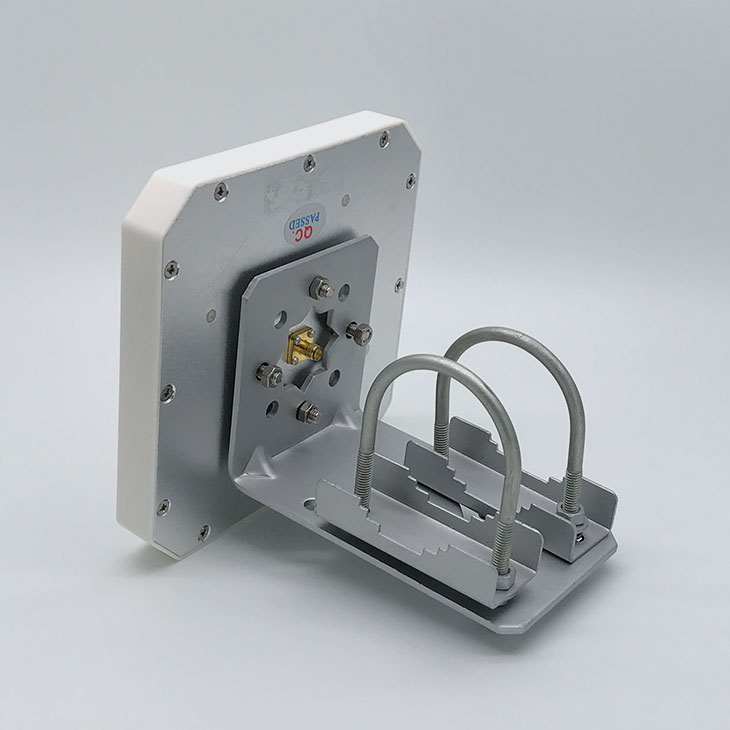

The Ant-RC05 covers both 865-868 MHz and 902-928 MHz bands, with VSWR of 1.3 or less, 50 Ω impedance, an SMA female connector and up to 20 W input power.
Key features
- 5 dBi gain, right-hand circular polarisation
- 80° x 70° beamwidth, front-to-back ratio of 17 dB or more
- 865-868 MHz and 902-928 MHz
- IP67 ABS radome, -40 °C to 60 °C
- Compact 145 x 145 x 20 mm
- Wall or pole mounting bracket included
Technical specifications
| Frequency | 865-868 MHz, 902-928 MHz |
|---|---|
| Gain | 5 dBi |
| Polarisation | Right-hand circular (RHCP) |
| 3 dB beamwidth | 80° horizontal, 70° vertical |
| Front-to-back ratio | 17 dB or more |
| VSWR / impedance | 1.3 or less; 50 Ω |
| Max input power | 20 W |
| Connector | SMA female |
| Dimensions / weight | 145 x 145 x 20 mm; 0.73 kg with bracket |
| Sealing / temperature | IP67; -40 °C to 60 °C |
| Mounting | Pole (30-50 mm) or wall; rated wind velocity 60 m/s |
What’s in the box
Ant-RC05 antenna with mounting bracket. RF cables are ordered to the length your installation needs.
Ideal for
Retail counters and exits, smart shelves and cabinets, single doorways and access control, warehousing and logistics read points, and outdoor utility installations.
Why buy the Chainway Ant-RC05 from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live. Protect your investment with our annual maintenance contract (AMC), or contact our team for a project quote and volume pricing.
