Description

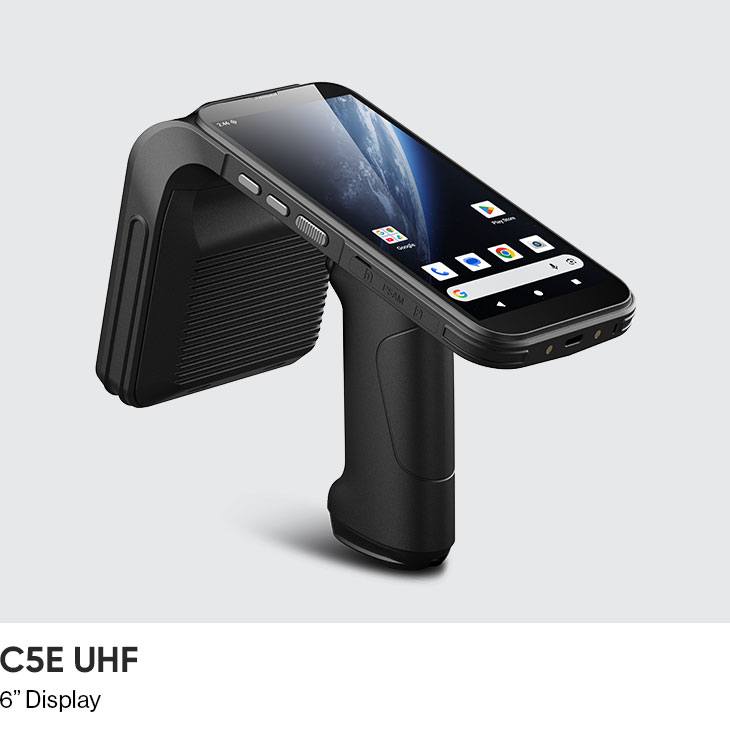

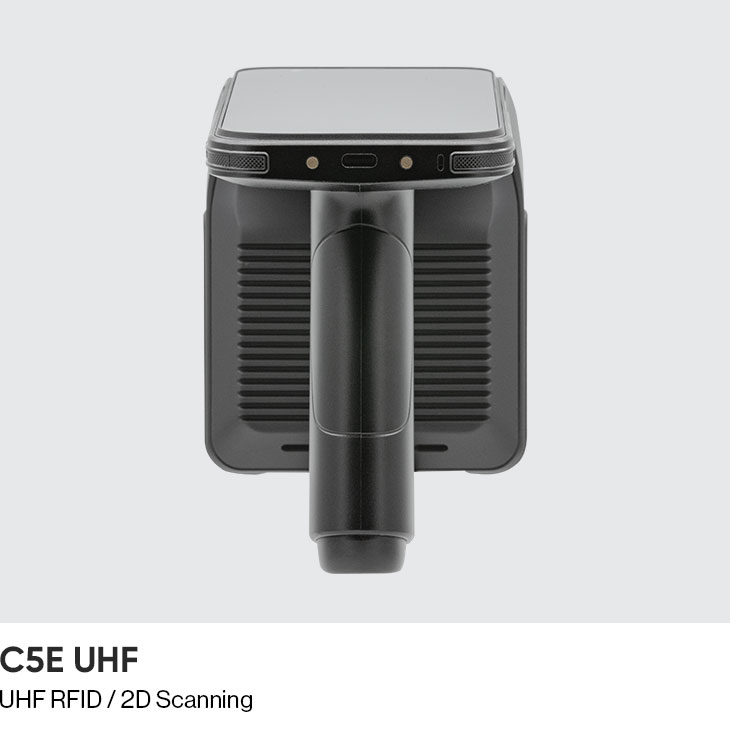

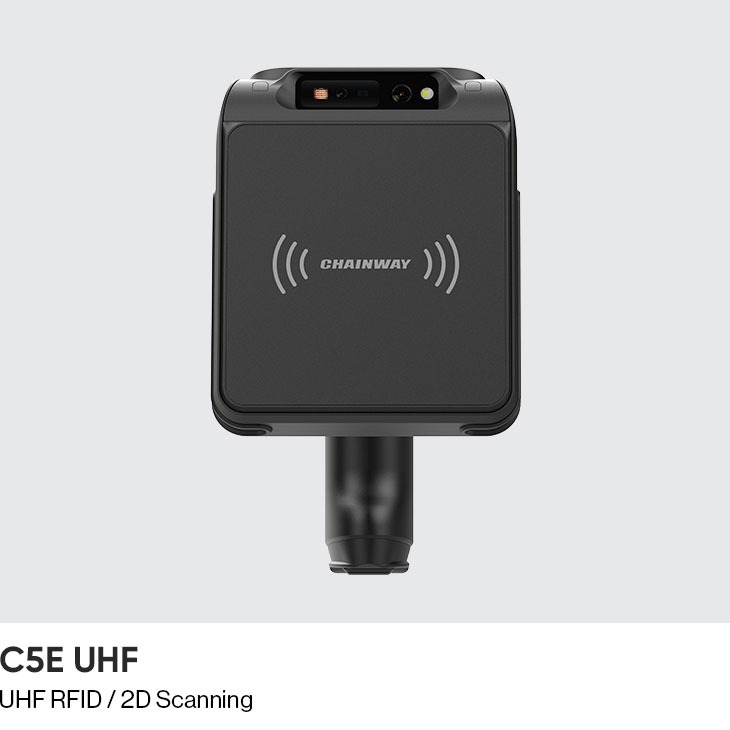

The Chainway C5E is the upgraded successor to Chainway’s popular C5 UHF RFID reader. It combines an integrated pistol-grip UHF RFID design with a modern Android 16 platform, a Qualcomm octa-core processor and up to 8 GB RAM + 256 GB storage, so RFID inventory, barcode and NFC apps run fast and stay supported for years.
Built around an Impinj E Family reader IC with Gen2X support, the C5E delivers long read range and high read rates for full-store stock counts, warehouse cycle counts, asset audits and returnable-container tracking.
Fast, long-range RFID
Read up to 1,300 tags per second with a read range of more than 30 m in open space. Output power is adjustable from +5 to +30 dBm, so you can count a whole stockroom or narrow the field to a single shelf. Sensor-fusion item finding guides staff directly to a specific tagged item.
All-day power
The 7,000 mAh removable pistol battery supports Quick Charge 3.0 and hot-swapping, so a battery change never interrupts a stock count. A 6-inch HD display (FHD+ optional) with Gorilla Glass works with gloves and wet hands.
Rugged and versatile
IP65 sealing, 1.5 m drops to MIL-STD-810H and 1,000 tumbles protect the C5E in busy stores and warehouses. Barcode scanning, NFC, PSAM, Wi-Fi, 4G and GPS make it a complete data-capture terminal, not just an RFID reader.
Key features
- Integrated UHF RFID with Impinj E Family IC and Gen2X
- Up to 1,300 tags/s and read range of 30+ m
- Android 16, Qualcomm octa-core 2.0 GHz, 4 GB/64 GB (up to 8 GB/256 GB)
- 6″ 720 × 1440 display (optional FHD+), Gorilla Glass
- 7,000 mAh hot-swappable battery with QC 3.0
- Precise RFID item finding with sensor fusion
- Barcode scanning, NFC, PSAM, Wi-Fi, 4G LTE, Bluetooth 5.1, GPS
- IP65, 1.5 m drop (MIL-STD-810H), 1,000 × 0.5 m tumbles
Technical specifications
| RFID engine | Impinj E-Series based UHF module, Gen2X supported |
|---|---|
| Frequency | 865–868 MHz / 920–925 MHz / 902–928 MHz (configured per region) |
| Protocol | EPC global Class 1 Gen 2 / ISO 18000-6C |
| Output power | 1 W (30 dBm, +5 to +30 dBm adjustable); 2 W optional for some regions |
| Read performance | Up to 1,300 tags/s; read range 30+ m (open space, tag dependent) |
| Operating system / CPU | Android 16 · octa-core 2.0 GHz |
| Memory | 4 GB + 64 GB UFS; optional up to 8 GB + 256 GB; microSD up to 256 GB |
| Display | 6″ 720 × 1440 (optional 1080 × 2160 FHD+), Gorilla Glass |
| Battery | 7,000 mAh removable pistol battery, QC 3.0, hot-swap |
| Connectivity | Wi-Fi 802.11 a/b/g/n/ac, 4G LTE, Bluetooth 5.1, GPS/BeiDou/GLONASS/Galileo, NFC |
| Camera | 13 MP autofocus rear with flash |
| Dimensions / weight | 178.8 × 96.5 × 128.4 mm · 626 g with battery |
| Ruggedness / temperature | IP65 · 1.5 m drop (MIL-STD-810H) · -20°C to +50°C |
What’s in the box
C5E UHF RFID handheld reader with battery. Charging cradle and adapters depend on the configuration.
Ideal for
Retail RFID stock counts and replenishment, warehouse cycle counting, fixed asset audits, laundry and linen tracking, and manufacturing work-in-progress.
Why buy the C5E from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live, including RFID tag selection and integration with your inventory system. Protect your investment with our annual maintenance contract (AMC), or contact our team for a project quote and volume pricing.
