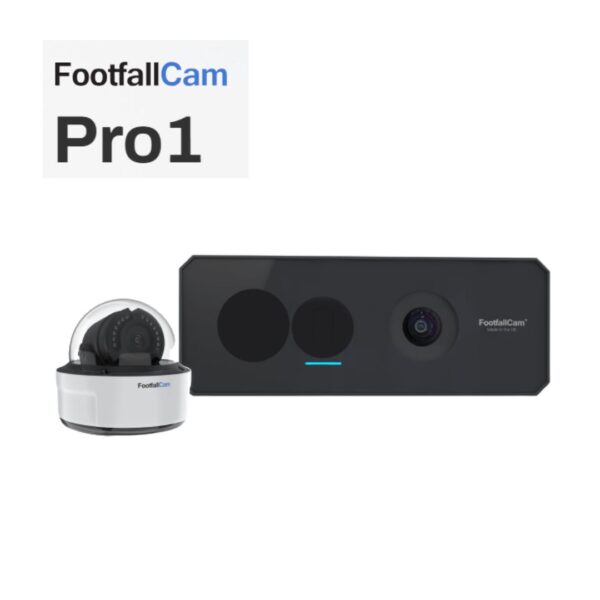

FootfallCam Pro1 AI Vision People Counter with Fisheye Lens, IP64 Casing and PoE (FC-F3DP15)

The FootfallCam Pro1 is an AI-assisted vision people counter for 2.1 m to 6.0 m ceilings, with a 5MP fisheye camera, IP64 aluminium casing and PoE power. FootfallCam quotes up to 99.5% accuracy. It excludes staff automatically, without registration, and sends its data through a Pro2 or Centroid.

WhatsApp for price
  • Authorised brands
  • Installation & training
  • AMC & repair support
  • Delivery across the GCC

Description

The FootfallCam Pro1 is an AI-assisted vision people counter. Its datasheet lists up to 99.5% accuracy, bi-directional counting, real-time occupancy counting, counting with video proof and a 25-year MTBF.

It uses one 5MP camera with a 1/2.8 inch IMX335 CMOS sensor behind a fisheye lens, and FootfallCam VeyonTrack tracking technology. One lens suits ceiling heights from 2.1 m to 6.0 m.

Staff exclusion and night counting

Automated staff counting uses AI re-identification and needs no pre-registration, accessories or unique uniforms. Low-light and night-mode counting works with external infrared light, and the device works down to 0.05 lux.

Build and power

The aluminium oxide alloy casing with a 1 mm tempered glass lens cover is IP64 rated and splash proof, and the datasheet lists comprehensive lightning protection. It weighs 0.4 kg, measures 154 x 55 x 40 mm and runs on IEEE 802.3at PoE at 6 W over Cat5e/Cat6.

Data and deployment

The datasheet lists data upload to the server and data backup as handled via a Pro2 or Centroid, so plan one of those devices in your deployment. Interfaces include HTTPS, RTSP, TCP/IP and others, and the software can be upgraded manually or automatically.

Key features

  • AI vision counting with up to 99.5% datasheet accuracy
  • 5MP fisheye camera, 1/2.8 inch IMX335 sensor
  • Automatic staff exclusion without registration
  • Mounting height 2.1 m to 6.0 m
  • IP64 aluminium casing with lightning protection
  • 6 W PoE (IEEE 802.3at), Cat5e/Cat6
  • Night mode with external infrared light
  • 25-year MTBF and 1-year warranty

Technical specifications

Product code FC-F3DP15
Dimensions 154 (W) x 55 (D) x 40 (H) mm
Weight 0.4 kg (packed 0.86 kg)
Camera 1 x 5MP, 160°, 1/2.8″ IMX335 CMOS sensor
Frame rate / light 25 fps; minimum 0.05 lux
Mounting height 2.1 m to 6.0 m; maximum tilt 16°
IP rating IP64
Tracking FFC VeyonTrack
Power PoE IEEE 802.3at, 48-56 VDC, 6 W, Cat5e/Cat6 RJ45
Operating environment 10°C to 45°C, humidity 10% to 90%
Ethernet / interface 10/100 Mb Ethernet; HTTPS, SSL, TCP/IP, UDP, RTSP and others
Data upload / backup Via Pro2 / Centroid
Warranty / origin 1 year; made in the UK

What’s in the box

FootfallCam’s datasheet does not list the kit contents. Mounting accessories and cabling depend on your site, so confirm the exact kit with our team before you order.

Ideal for

Retail stores, malls and public venues that need low-cost entrance counting with staff exclusion alongside a Pro2 or Centroid.

Why buy the Pro1 from Technowave

Technowave has supplied Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We can help you plan Pro1 counters together with the Pro2 or Centroid they depend on. Tell us your entrances, ceiling heights and reporting needs, and our team will help you plan coverage and choose the right counters. Contact our team for a quote.
