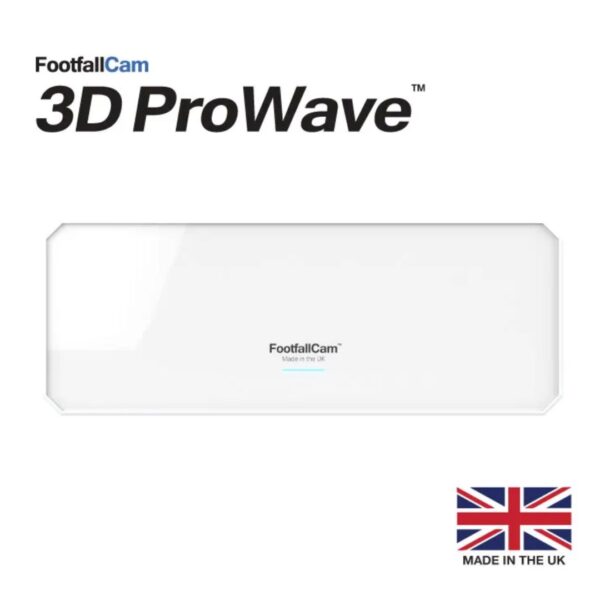

FootfallCam 3D ProWave mmWave Radar People Counter with Anonymous Counting and Heatmaps

The FootfallCam ProWave is a high-resolution millimetre-wave radar people counter that counts anonymously, with no video captured. FootfallCam lists up to 99.5% accuracy, a 120° mmWave field, 2.5 m to 4.0 m mounting and 6 W PoE power. It suits offices, retail and public spaces where privacy matters.

WhatsApp for price
  • Authorised brands
  • Installation & training
  • AMC & repair support
  • Delivery across the GCC

Description

The FootfallCam ProWave is a people counter built on high-resolution mmWave radar sensing with Extended Kalman Filter tracking. Its datasheet quotes up to 99.5% accuracy and a 25-year MTBF.

Because it senses with radar instead of video, it counts anonymously at the source. FootfallCam states that full privacy protection is provided, and the built-in sensor keeps accuracy up in low light, even in complete darkness.

Counting and analysis

ProWave counts the people inside its coverage zone to measure space use and occupancy time, and heatmap analysis highlights hotspots and congested areas. FootfallCam suggests using this to raise utilisation and tune cleaning frequency in facilities.

Coverage and installation

A 120° mmWave field reduces the number of devices needed. The ideal mounting height is 2.5 m to 4.0 m. The compact unit is 154 x 59 x 40 mm, has an aluminium oxide alloy casing with a 1 mm acrylic cover, and runs on IEEE 802.3at PoE at 6 W over Cat5e/Cat6.

Data

The device stores hourly data for 300 days and raw data for 7 days, and uploads to the server every hour at an average of 200 kilobytes per hour. Reports export as csv, xml or txt.

Key features

  • High-resolution mmWave radar sensing
  • Anonymous counting with no video captured
  • Up to 99.5% accuracy in the datasheet
  • 120° coverage, 2.5 m to 4.0 m mounting height
  • Works in low light and darkness
  • Occupancy counting and heatmap analysis
  • 6 W PoE (IEEE 802.3at), Cat5e/Cat6
  • 1-year manufacturer warranty

Technical specifications

Product code FC-F3DP07
Dimensions 154 (W) x 59 (D) x 40 (H) mm
Weight 0.4 kg (packed 0.85 kg)
Sensing High-resolution mmWave radar, Extended Kalman Filter tracking
Coverage 120° mmWave
Mounting height 2.5 m to 4.0 m
Storage Built-in 16 MB
Power PoE IEEE 802.3at, 48-56 VDC, 6 W, Cat5e/Cat6
Operating environment 10°C to 45°C, humidity 10% to 90%
Storage environment -40°C to 70°C, humidity 10% to 95%
Ethernet / interface 10/100 Mb Ethernet; HTTP, HTTPS
Data transfer Hourly upload; average 200 KB/hour
Warranty / origin 1 year; made in the UK

What’s in the box

FootfallCam’s datasheet does not list the kit contents. Mounting accessories and cabling depend on your site, so confirm the exact kit with our team before you order.

Ideal for

Offices, retail stores, supermarkets and public spaces that want accurate occupancy and footfall data without capturing video.
