Description

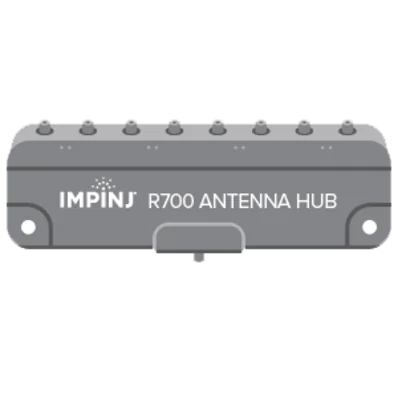

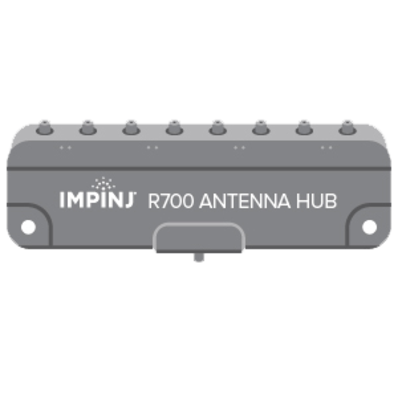

The Impinj R700 Antenna Hub expands what a single Impinj R700 series reader can cover. Each reader antenna port can drive one hub with eight antenna outputs, so a 4-port R700 can control up to 32 antennas. That makes RFID smart shelves, cabinets, tool tracking, fitting rooms and multi-zone stockrooms far more affordable than installing a reader for every few antennas.
Installation is simple and tidy: one cable from the reader carries power, RF control and the RF signal to the hub, so there are no separate power supplies or control cables to run.
Scale read zones without more readers
Fewer readers means lower hardware cost, fewer network ports and less to manage. The R700 automatically handles hub antenna switching, and renames the antenna ports when the hub is enabled so software can identify every individual read zone.
Designed for clean, reliable installs
The compact 173 × 53 × 20 mm housing mounts easily inside shelving, cabinets and ceilings. Active LEDs give system-level feedback during installation and troubleshooting, and SMA connectors keep cabling standard.
Works across global frequency bands
Covering 860–960 MHz, the hub works with Impinj R700 readers configured for ETSI, FCC and other regions, and with a wide range of Impinj and third-party RAIN RFID antennas, from near-field shelf antennas to far-field panels.
Key features
- 8 antenna output ports per hub
- Up to 32 antennas from one 4-port Impinj R700 reader
- Single cable for power, RF control and RF signal
- 860–960 MHz broadband operation
- SMA female RF input and outputs
- Active status LEDs
- Very low power draw (80 mW max)
- Compact housing for shelves, cabinets and ceilings
Technical specifications
| Part number | IPJ-A6010-000 |
|---|---|
| Compatibility | Impinj R700 series RAIN RFID readers |
| Function | 1-to-8 antenna multiplexer |
| Antenna capacity | 8 outputs per hub; up to 32 antennas per 4-port R700 |
| Frequency range | 860–960 MHz |
| Connectors | RF input: SMA female · 8 RF outputs: SMA female |
| Power | Powered from the R700 reader over the RF cable |
| Power consumption | 25 mA (80 mW) maximum |
| Dimensions | 173 × 53 × 20 mm |
| Ingress protection | IP50 (indoor use) |
What’s in the box
Impinj R700 Antenna Hub. Antennas and RF cables are sold separately.
Ideal for
RFID smart shelves and cabinets, tool and instrument tracking, fitting rooms, jewellery and pharmacy cabinets, and multi-zone stockrooms.
Why buy the R700 Antenna Hub from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live, including read-zone design and antenna selection. Protect your investment with our annual maintenance contract (AMC), or contact our team for a project quote and volume pricing.
