Description

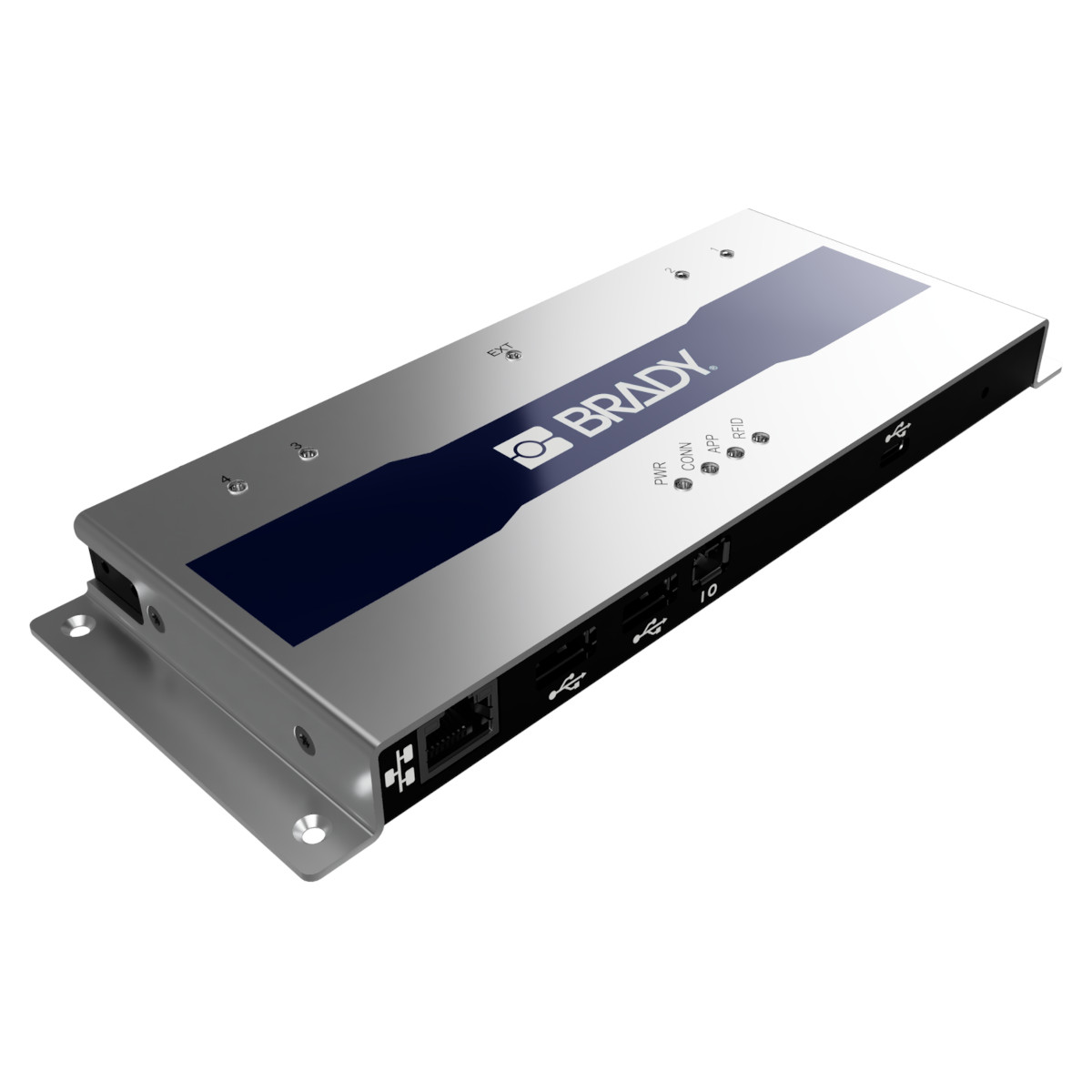

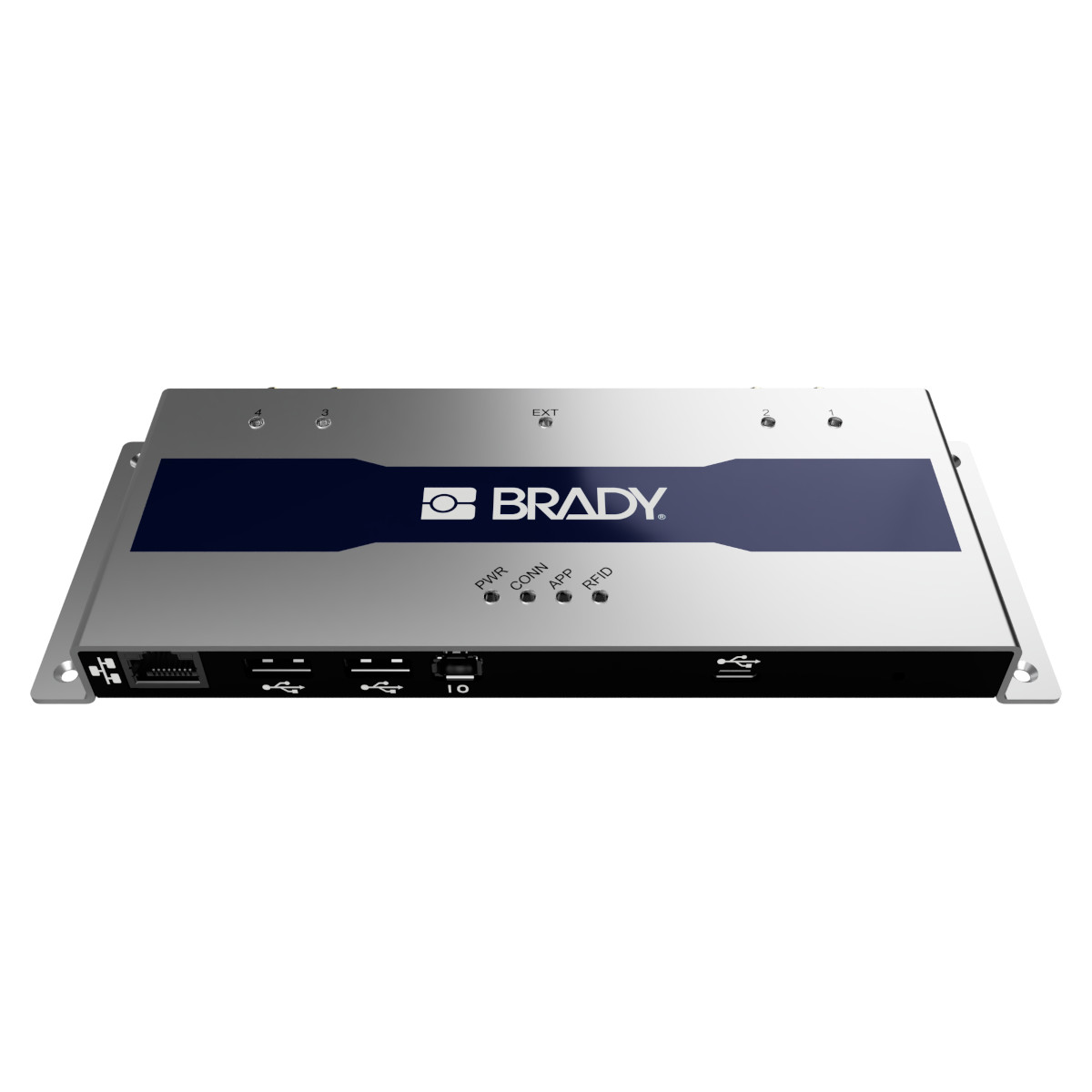

The Brady FR22 Lite is the cost-effective entry model in the FR22 family of fixed RFID readers. It keeps the same high-performance UHF RFID engine and quad-core processing platform as the full FR22, and drops the wireless connectivity, video output and Brady expansion modules that many installations don’t need.
The result is a slim, PoE-powered reader with four antenna ports that suits fixed read points where Ethernet is already in place. Regional versions are available for ETSI (865.6–867.6 MHz) and FCC (902–928 MHz) bands; Technowave supplies the version that matches your country.
Same RFID performance as the FR22
With +32 dBm RF output (ETSI), receive sensitivity of -87 dBm and up to 1,000 tags per second, the FR22 Lite handles dock doors, conveyor points and stockroom portals with the same accuracy as its bigger sibling. It is also compatible with the Impinj Gen2X RAIN toolbox.
Edge computing without a PC
A quad-core A7 1.1 GHz processor with 1 GB RAM and 8 GB flash runs Linux, so you can host embedded web apps with their own user interface directly on the reader. Full APIs, including the Nordic ID NUR API and a RESTful service, give developers complete control, and existing Nordic ID fixed-reader applications remain compatible.
Easy to deploy and manage
A single PoE 802.3at cable powers the reader and carries data. Configuration and firmware updates run through a web management interface, TLS 1.3 secures connections, and the OPC UA Auto-ID server option links tag data into industrial systems. I/O lets you add triggers, lights and buzzers.
Key features
- 4 RP-SMA antenna ports
- Up to 1,000 tags per second, -87 dBm sensitivity
- Same RFID engine and platform as the Brady FR22
- Linux edge computing for embedded web apps
- PoE 802.3at powered, Ethernet, USB, USB-C and I/O
- NUR API, RESTful service and OPC UA Auto-ID server
- Web management UI with TLS 1.3 security
- Slim 160 g housing, 17.5 mm high
Technical specifications
| Model | Brady FR22 Lite (EU: B-FR22LITE-RDR-EU; US: B-FR22LITE-RDR-US) |
|---|---|
| RFID standard | EPC Gen2v2 / ISO 18000-63 (RAIN) |
| Frequency | ETSI 865.6–867.6 MHz or FCC/IC 902–928 MHz (by version) |
| RF power | +32 dBm (+30 dBm in FCC region) |
| Receive sensitivity | -87 dBm |
| Read rate | Up to 1,000 tags per second |

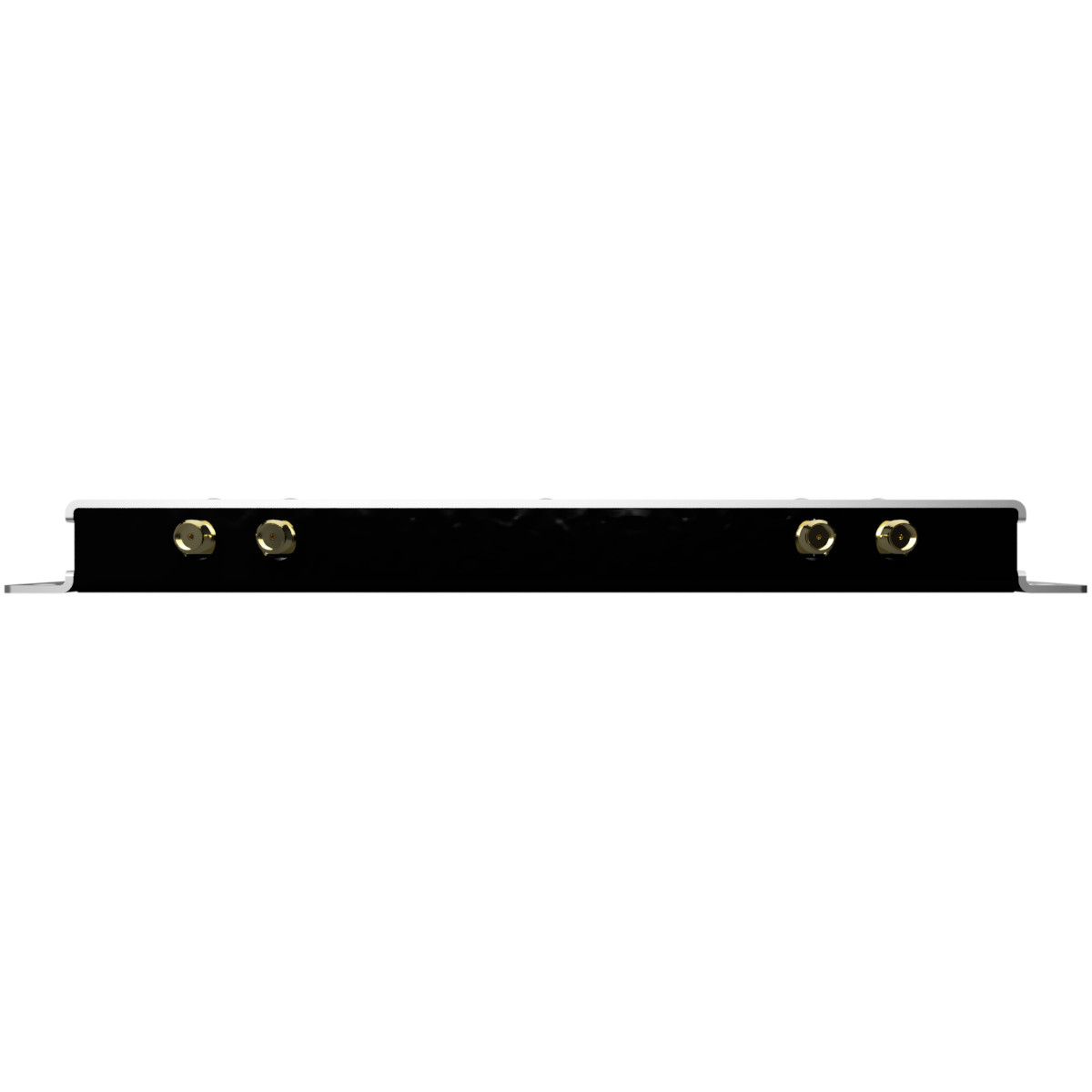

| Antenna ports | 4 × RP-SMA female |
| Processor and memory | Quad-core A7 1.1 GHz; 1 GB RAM, 8 GB flash; Linux |

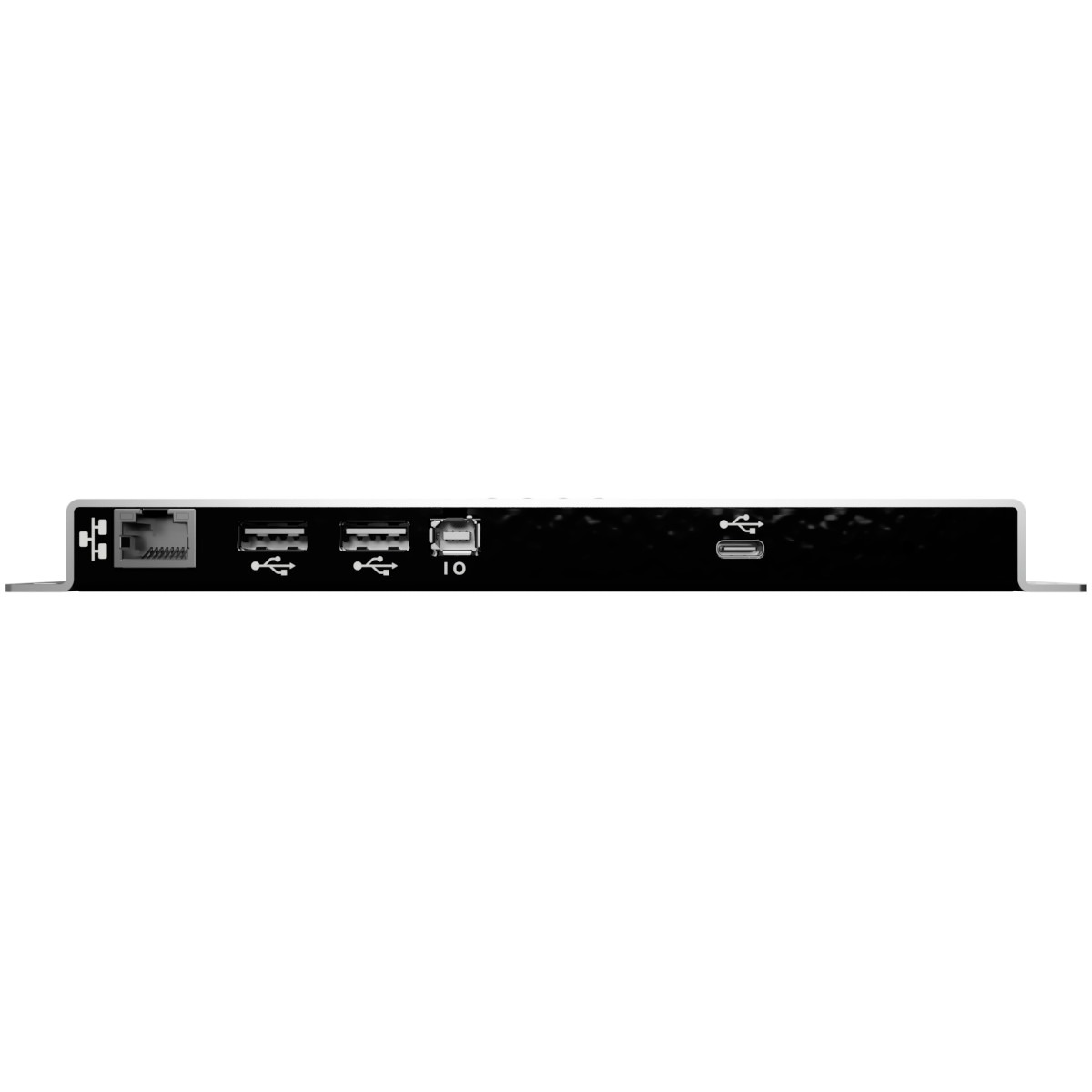

| Connectivity | Ethernet, USB, USB-C, I/O |
| Power | PoE 802.3at; max 25.5 W, 4 W idle |
| Software | NUR API, RESTful service, web management UI, OPC UA Auto-ID server, TLS 1.3 |
| Environment | IP20, -20 °C to 55 °C |
| Size and weight | 203.2 × 17.55 × 78.49 mm, 0.16 kg |
What’s in the box
Brady FR22 Lite reader, safety and regulations card, and an additional product information label. Antennas, cables and PoE injector are sold separately.
Ideal for
Stockroom and back-office portals, dock doors and conveyor read points, smart shelves and cabinets, asset and IT equipment tracking, library and document management, and RFID projects that need a cost-effective fixed reader on PoE.
Why buy the Brady FR22 Lite from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live, including antenna selection and read-zone tuning. Protect your investment with our annual maintenance contract (AMC), or contact our team for a project quote and volume pricing.
