Description

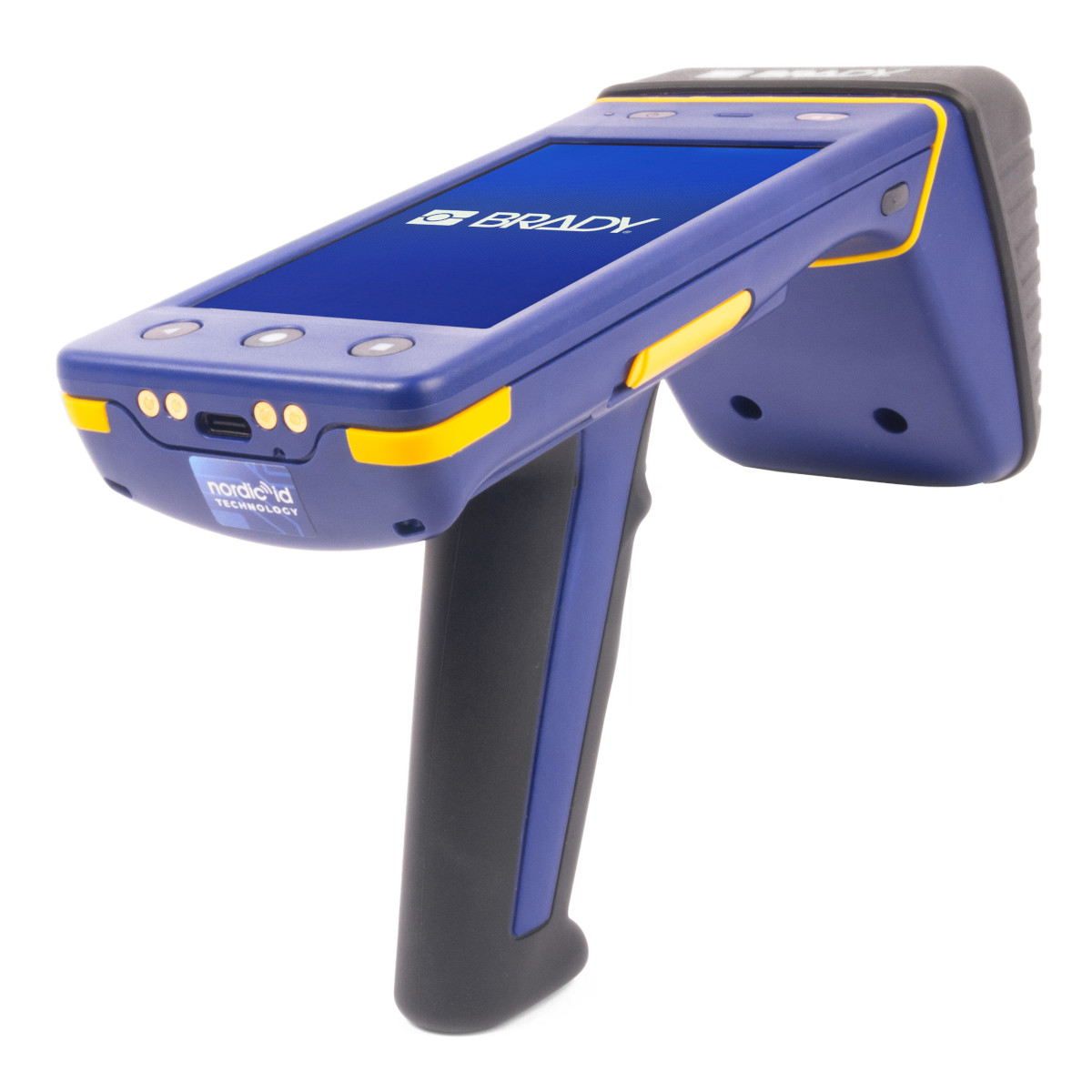

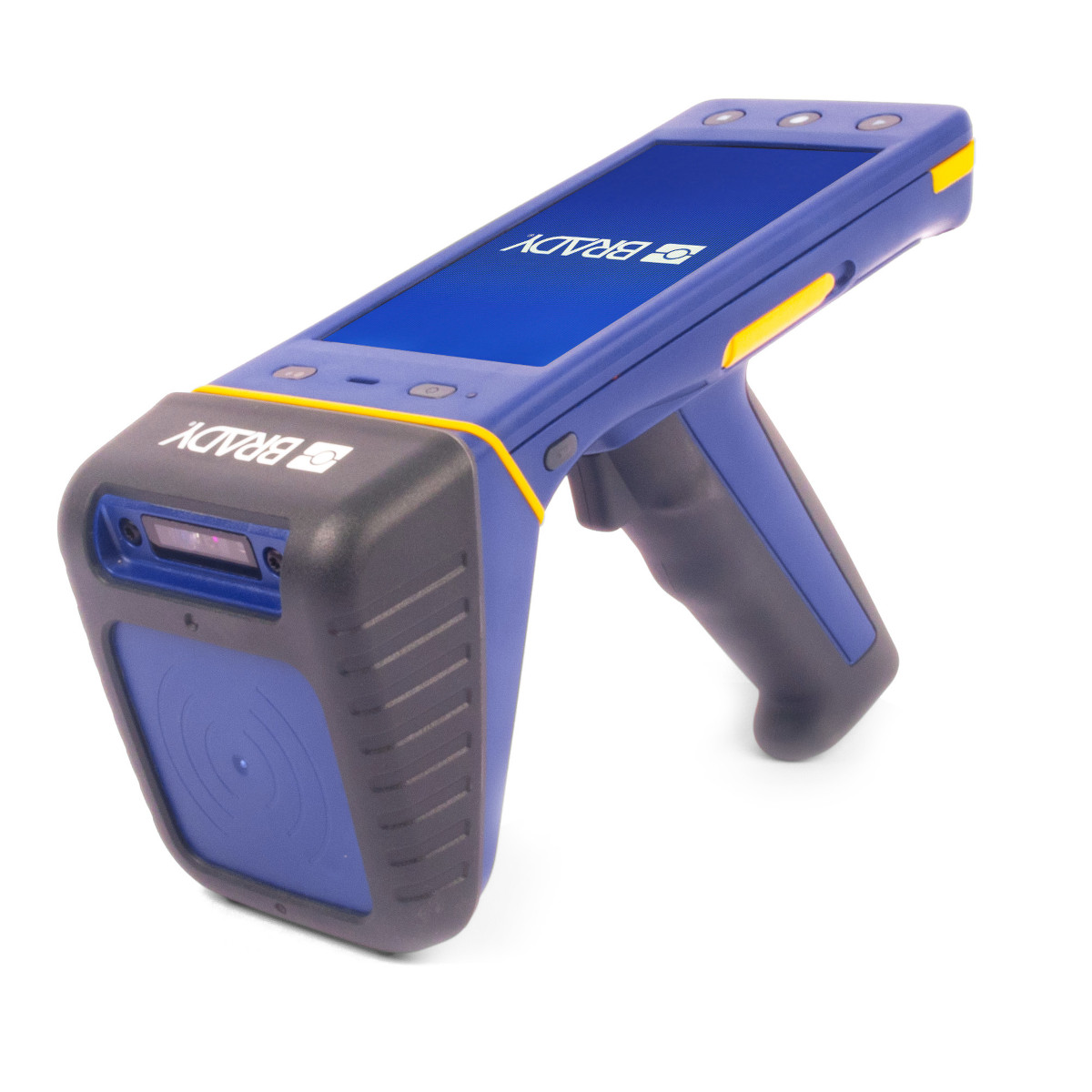

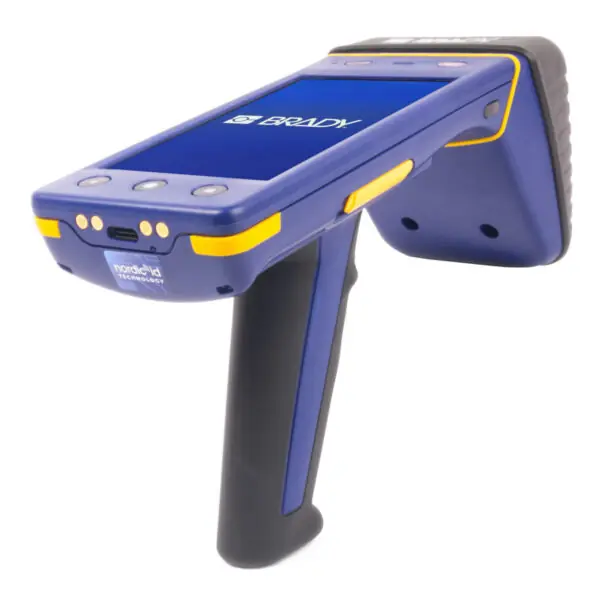

The Brady HH86 is the latest handheld RFID reader from the Nordic ID engineering team, now part of Brady. It combines a UHF RAIN RFID reader, an NFC/HF reader and a 2D barcode imager in one Android 14 device, so a single operator can count stock, find assets and scan labels without switching tools.
This EU version (B-HH86-UHF-EU) works in the ETSI 868 MHz band used in the UAE and GCC and ships with the pistol grip fitted, ready for long inventory rounds.
Fast, accurate RFID counts
Powered by the Nordic ID NUR3-1W RFID engine with a circularly polarised 4 dBic antenna, the HH86 reads up to 1,200 tags per second with receive sensitivity down to -80 dBm. RF output adjusts in 1 dB steps up to 0.8 W ERP, so you can widen the field for cycle counts or narrow it to locate a single item.
Modern Android platform
An eight-core processor (four Kryo 260 Gold cores at 2.0 GHz and four Silver cores at 1.8 GHz), 4 GB RAM and 64 GB flash with microSD support run enterprise apps smoothly. The 720p Gorilla Glass 3 touchscreen, 16 MP autofocus camera, Wi-Fi 802.11ac and Bluetooth 5.1 keep users connected on the floor.
Built for full shifts in tough sites
IP65 sealing, 1.6 m drop resistance and an operating range of -20 °C to 55 °C suit warehouses, yards and plants. A 10,050 mAh changeable Li-ion battery keeps the device running, and the main APIs stay compatible with earlier Nordic ID readers, so existing apps port easily.
Key features
- UHF RAIN RFID, NFC/HF and 1D/2D barcode in one device
- Up to 1,200 tags per second
- Android 14 with 4 GB RAM and 64 GB flash
- Ergonomic pistol grip with trigger and side scan keys
- Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.1 and USB
- 10,050 mAh changeable battery
- IP65 sealing and 1.6 m drop resistance
- APIs backward compatible with earlier Nordic ID handhelds
Technical specifications
| Part number | B-HH86-UHF-EU (article 323488) |
|---|---|
| Operating system | Android 14 |
| Processor | Quad Kryo 260 Gold 2.0 GHz + quad Kryo 260 Silver 1.8 GHz |
| Memory | 4 GB RAM, 64 GB flash, microSD (SDXC) |
| Display | HD 1280 × 720 capacitive touchscreen, Gorilla Glass 3 |
| RFID | UHF EPC Gen2v2 / ISO 18000-63 (RAIN), NFC/HF; Nordic ID NUR3-1W engine |
| RF power | Adjustable in 1 dB steps, max 0.8 W ERP (29 dBm) / 1.3 W EIRP |
| Read rate | Up to 1,200 tags per second |
| Barcode | 1D and 2D imager |
| Connectivity | Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.1, USB 2.0 |
| Battery | 10,050 mAh rechargeable Li-ion, changeable |
| Rugged rating | IP65, 1.6 m drops, -20 °C to 55 °C |
| Size and weight | 87 × 214 × 135 mm, 642 g |
What’s in the box
Brady HH86 handheld reader with pistol grip, changeable battery (pre-installed), wrist strap, and safety and regulations card.
Ideal for
Warehouse and stockroom inventory, retail cycle counts, asset and IT equipment tracking, maintenance and inspection rounds, laundry and tool management, and any team that needs RFID and barcode scanning in one device.
Why buy the Brady HH86 from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live, including RFID tag selection and read testing on your site. Protect your investment with our annual maintenance contract (AMC), or contact our team for a project quote and volume pricing.
