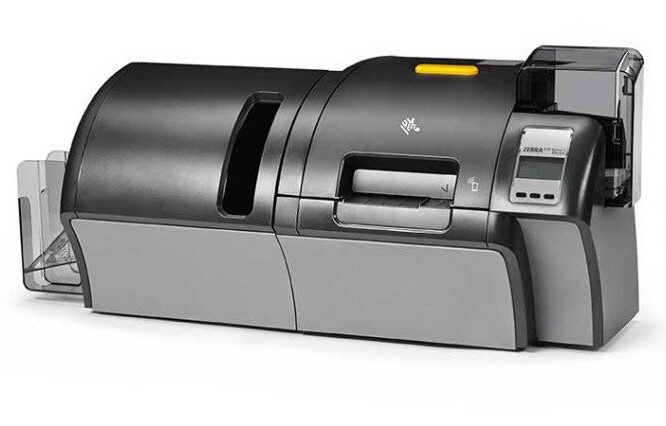

Zebra ZXP Series 9 Card Printer

In stock

PHOTO-LIKE IMAGE QUALITY AT LIGHTNING FAST SPEED

Engineered to meet your high-security application needs, the ZXP Series 9™ lets you produce photo-quality cards quickly and reliably. Ideal for printing photos and graphics, the dependable ZXP Series 9 printer incorporates Zebra’s Colour Predictive Technology, featuring algorithms that constantly monitor and instantaneously adapt printer settings to automatically produce the highest print quality. As a retransfer printer, it enables you to produce extremely durable, true to edge-to-edge cards – even on uneven card surfaces such as smart cards.

For partners and customers who would like to use a Zebra card printer with their smartcard encoding application, please contact your Account Manager or a Zebra approved smartcard ISV for integration support.

Additional information

Print Method

Dye diffusion retransfer
Full color or monochrome retransfer printing
Single- and dual-sided printing
Max Print Speed Single-Side*: 180 cph (with 300 dpi)
Max Print Speed Dual-Sided*: 190 cph (with 300 dpi)
Photo-quality images
Over-the-edge printing on standard CR80 media

Standard Features

USB and Ethernet connectivity
Single-card feed capability
150 card capacity feeder (30 mil)
15 card capacity reject hopper (30 mil)
100 card capacity output hopper (30 mil)
i Series™ intelligent media technology
Auto-calibration of media
21-character, 6 line LCD operator display
Print Resolution: printers available with 300 dpi
2GB memory standard
Lifetime warranty on printhead
2-year limited warranty on printer
Microsoft® Windows certified drivers

Card Specifications

Card thickness: 30 mil
Card size: ISO 7810 format, Type ID-1, CR-80 size
Card material: PVC and composite, ABS cards, PET, PET-G, and Teslin® composite**
Specialty cards: transparent (IR-blocked) or translucent card 30 mil (clear and colored)**
Technology cards: contact and contactless smart cards, UHF cards**

Communication Interface

USB 2.0
USB supports plug-and-play printer identification
10/100 Ethernet
802.11 b/g wireless connectivity

Encoding Options and Specifications

ISO 7816 Smart Card Contact Station for third-party external contact encoders
Magnetic stripe encoder—AAMVA and ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity)
Combined MIFARE® ISO 14443 A & B (13.56 MHz) contactless, ISO 7816 Contact Encoder PC/SC compliance

Optional Features

• Single and dual-sided laminator
• Optional contact/contactless SmartCard encoding option module
• FIPS 201 compliant dual-sided laminator (only for North America)
• Lockable enclosures and card feeder
• Extended product warranty programs
• 802.11b/g wireless connectivity
• 1D barcode scanner
• Duo-Print upgrade kit

Encoding Options and Specifications

• Magnetic stripe encoder — AAMVA and ISO 7811 (new and pre-encoded, tracks 1, 2, and 3, high and low coercivity)
• ISO 7816 Smart Card Contact Station for third-party external contact encoders
• Combined MIFARE® ISO 14443 A and B (13.56MHz) contactless and ISO 7816 Contact Encoder with EMV level 1 certification, and PC/SC compliance
• EPCglobal® Gen 2 UHF RFID encoder

Laminator Specifications

Single-or dual-sided lamination option (with dual-sided printer only)
GSA FIPS 201 approved (dual-sided lamination)
Uses Zebra True Secure i Series laminates only
Laminate for the top and bottom sold separately
Custom-coded laminates available
Custom holographic laminates available
