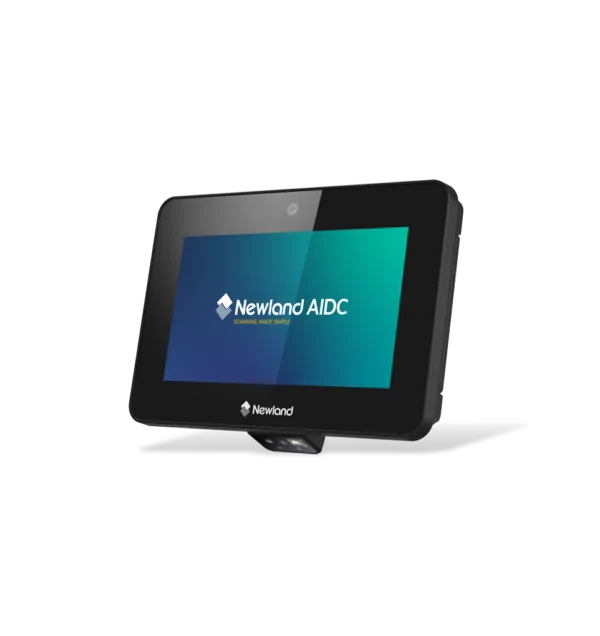

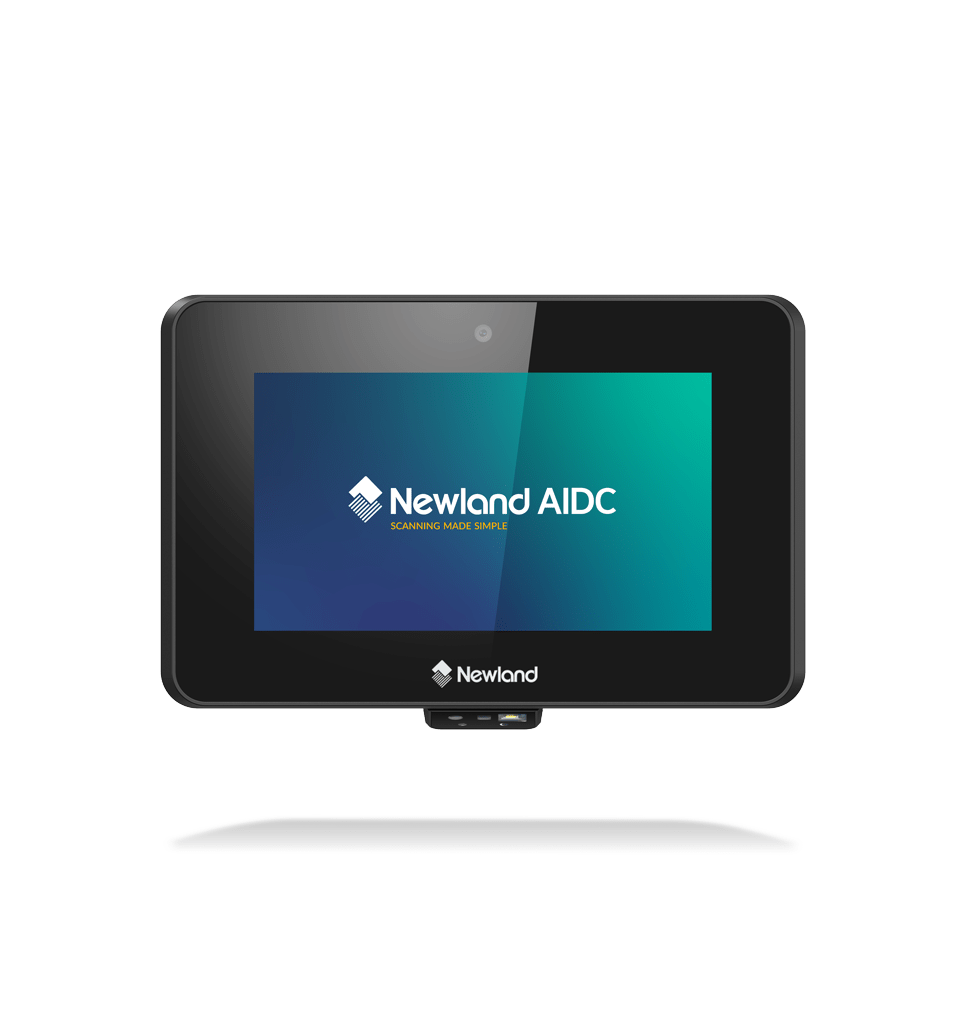

Newland NQuire 500 Skate II Micro Kiosk

Description

The NQuire 500 Skate II proves that compact doesn’t mean limited. Its 5" capacitive touchscreen (854×480, 310 nits) pairs with Newland’s advanced megapixel scanning technology to read barcodes quickly and accurately — including barcodes displayed on a customer’s own smartphone or tablet screen, which matters increasingly as loyalty apps and digital coupons replace printed ones.

Running Android 13 with Google Mobile Services, the device is powered by a 2.0 GHz octa-core processor with 4GB RAM and 64GB storage, enough headroom to run a self-service app alongside a device-management agent without lag. Built-in 4G, dual-band WiFi, Bluetooth 5.2, GPS, and Ethernet with PoE support give installers flexible connectivity for any counter or kiosk layout — PoE in particular means a single cable can carry both power and network, simplifying installation behind a checkout or reception desk.

Small footprint, flexible mounting

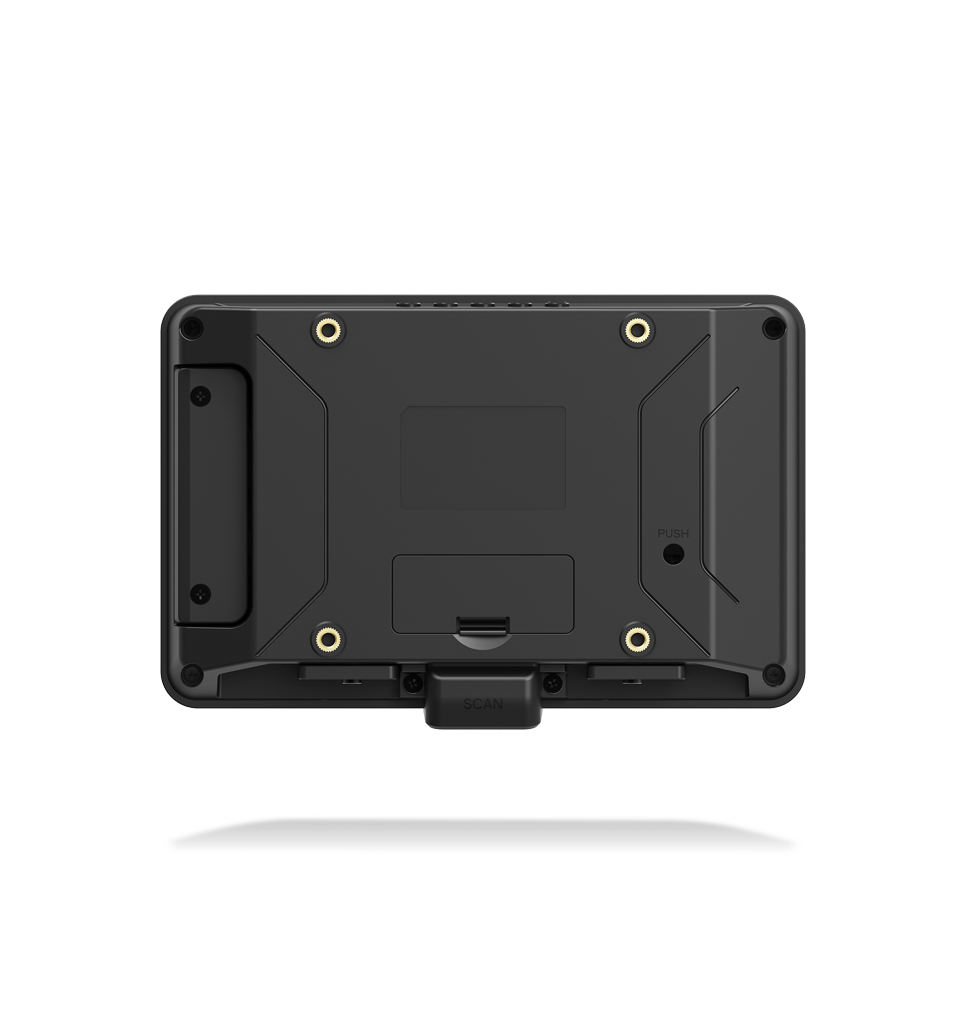

At 156.5mm wide and 100.4mm deep, the Skate II is small enough to sit on a crowded counter without dominating it, while VESA75 mounting means it can just as easily be wall-mounted, arm-mounted, or built into a custom enclosure. An IP54 front rating protects against dust and splashes in busy retail or F&B environments.

Key features

• 5" capacitive touchscreen, 854×480 resolution, 310 nits brightness
• Android 13 with Google Mobile Services (GMS)
• 2.0 GHz octa-core 64-bit processor, 4GB RAM, 64GB storage, microSD expansion
• Megapixel 1D & 2D barcode scanning, including screen-to-screen reads
• 8MP front camera
• WiFi 802.11a/b/g/n/ac (dual-band), Bluetooth 5.2, built-in 4G LTE, GPS (AGPS/GLONASS/Beidou/Galileo), Ethernet
• Power over Ethernet (IEEE 802.3af/at) or 12V/3A AC adapter
• Optional NFC (13.56MHz) and MSR reader modules for payment and loyalty card use cases
• VESA75 mounting, IP54 front rating
• Operating range -10°C to 50°C; ESD protection to ±12kV air / ±6kV direct discharge
• Free Ndevor MDM software included for centralized device management, app deployment, and remote troubleshooting

Where it fits

Retail price-checking and self-checkout, hospitality and leisure self-service kiosks, healthcare check-in points, and field-service or utility counters are the primary use cases. It slots in below the larger NQuire 750 Stingray II and NQuire 1000 Manta III when a smaller footprint or lower price point is the priority.

Part number: NLS-NQUIRE500-W4-SL (includes wall mount bracket and multiplug adapter)
Warranty: 2 years standard, with 1- and 3-year extensions and 3–5 year service contracts available.
