Description

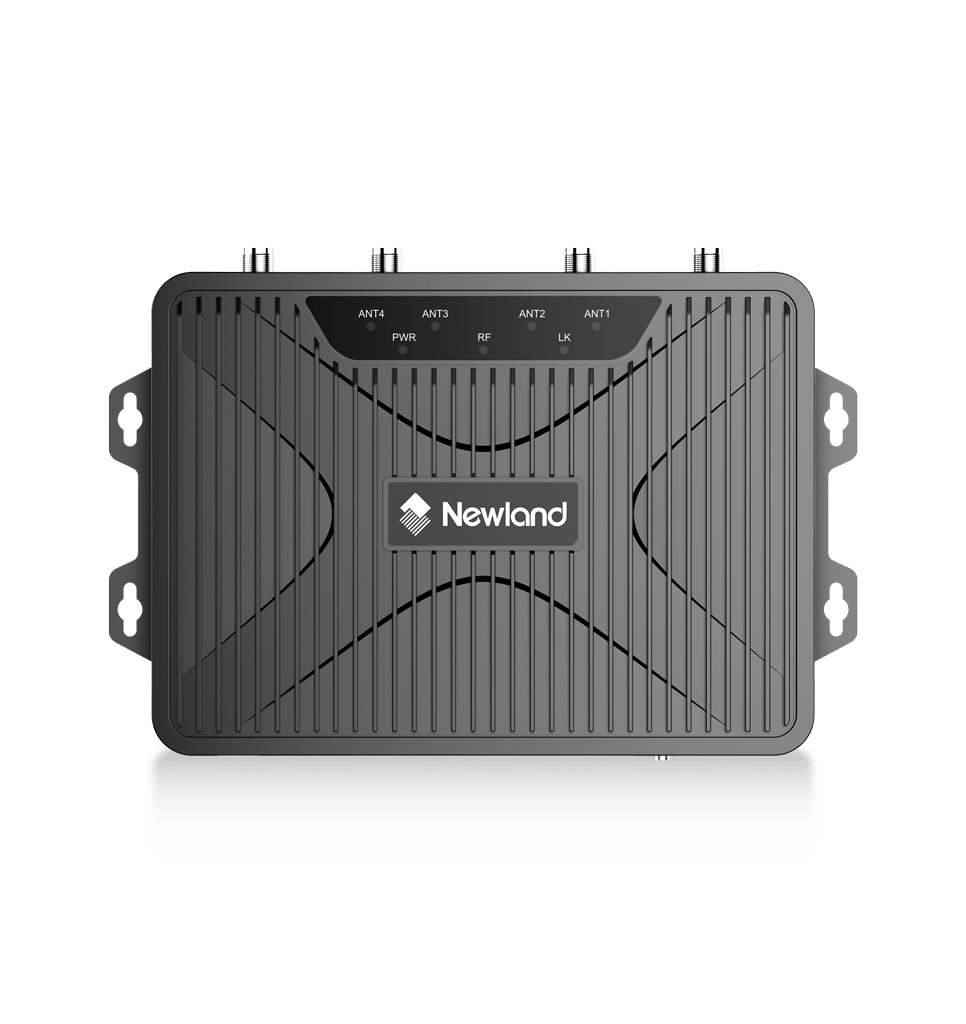

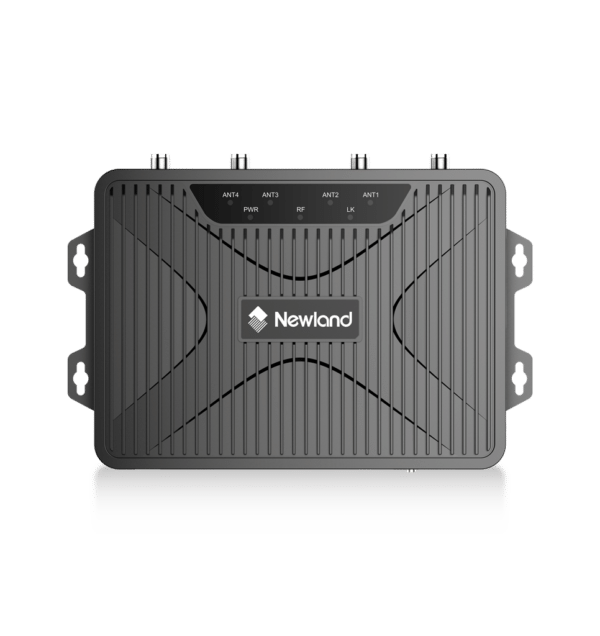

The Newland URF520 Solea is a fixed UHF RFID reader for demanding retail, warehouse and logistics applications. Powered by the high-performance Impinj E710 RFID engine, it reads up to 900 tags per second and identifies tags at more than 14 m in open space, fast enough for RFID self-checkout counters, dock-door portals and conveyor read points.
One reader, up to four read points
Four TNC antenna ports let a single Solea cover several read zones, such as both sides of a portal or multiple shelves, without the cost of extra readers. It works with external antennas from 3 to 8 dBi and automatically detects whether each antenna is connected and working, flagging cabling problems before they affect your data. Output power is adjustable from 5 to 33 dBm, so you can widen the read zone for large areas or tighten it to avoid reading nearby stock.
Easy to integrate and install

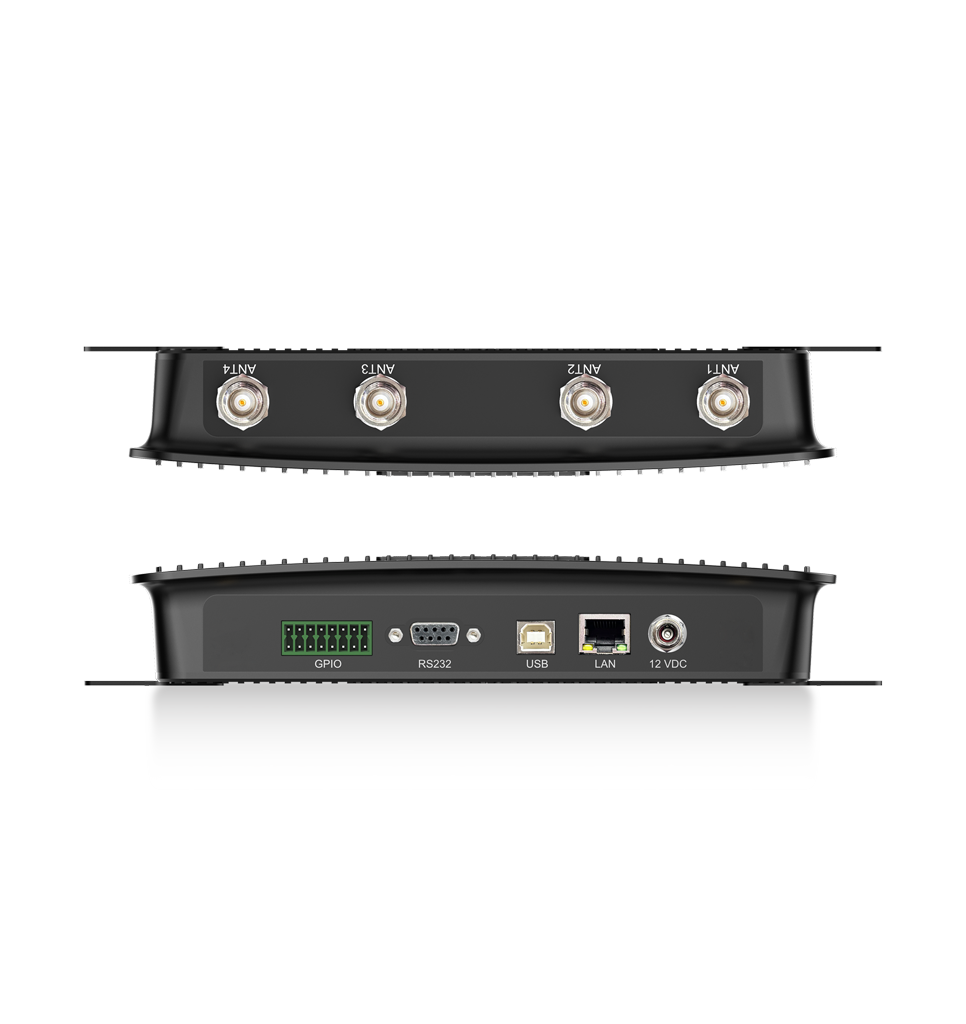

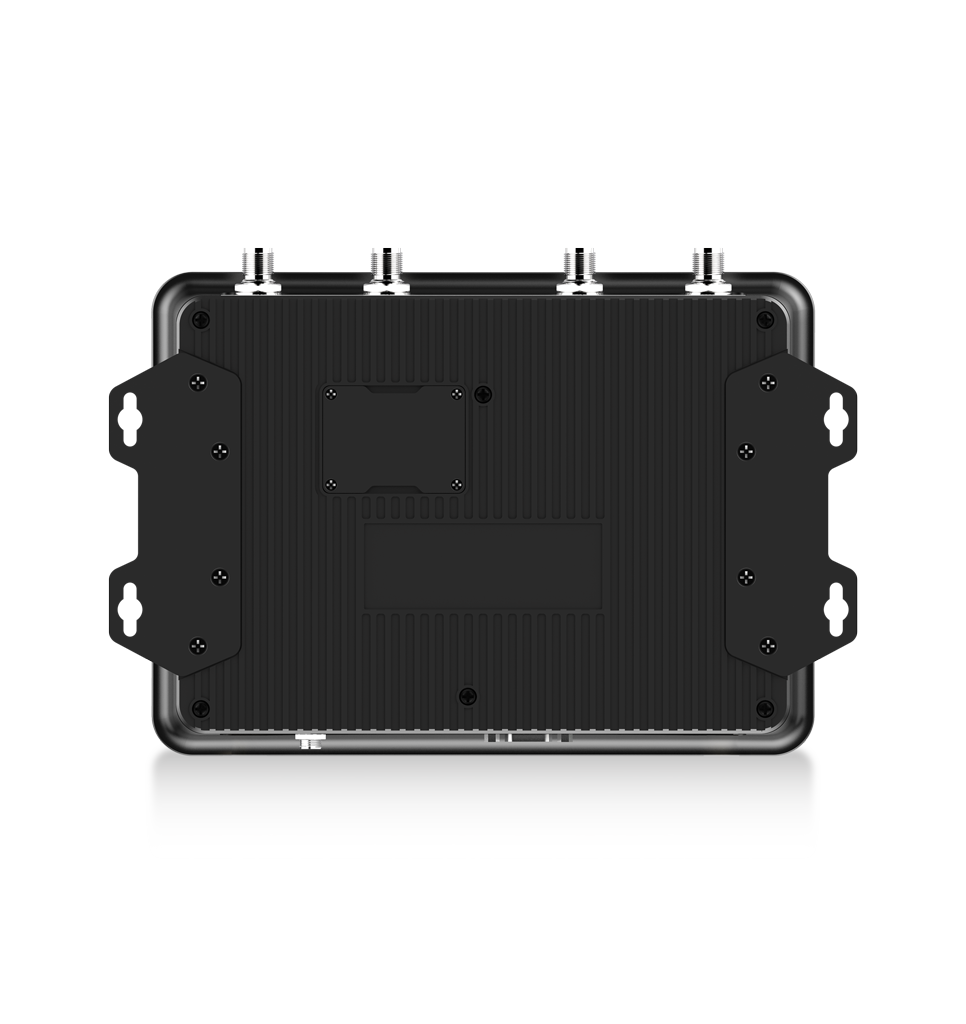

RJ-45 Ethernet with PoE/PoE+, RS-232, RS-485 and USB connect the Solea to POS, WMS and ERP systems, and four isolated inputs and four relay outputs drive sensors, lights and gates. The aluminium IP53 housing includes mounting points for quick installation. Because it follows the EPC Gen2 / ISO 18000-6C standard, it reads UHF tags from any major manufacturer, so you’re never tied to one tag vendor.
Key features
- Impinj E710 RFID engine, EPC C1 Gen2 / ISO 18000-6C
- Up to 900 tags/second; read range over 14 m (8 dBi antenna)
- 4 TNC antenna ports with antenna presence detection
- Adjustable output power 5–33 dBm
- Ethernet with PoE / PoE+, RS-232, RS-485 and USB
- 4 optically isolated inputs and 4 relay outputs
- 1,000-tag cache, RSSI and ambient temperature detection
- Rugged aluminium IP53 housing
Technical specifications
| RFID engine / protocol | Impinj E710 · EPC C1 Gen2 (ISO 18000-6C) |
|---|---|
| Frequency (this version) | ETSI 865–868 MHz (FHSS or fixed frequency) |
| Output power | 5–33 dBm (±1 dBm), adjustable |
| Read rate / range | ≥ 900 tags/s · > 14 m in open space with 8 dBi antenna |
| Receive sensitivity | < -84 dBm |
| Antenna ports | 4 × TNC with presence detection |
| Interfaces | RJ-45 Ethernet (TCP/IP), RS-232, RS-485, USB-B |
| GPIO | 4 optocoupler-isolated inputs, 4 relay outputs |
| Power | 9–24 VDC (12 V/3 A adapter), PoE 802.3af / PoE+ 802.3at · 10.5 W |
| Dimensions / weight | 227 × 166 × 42 mm (256 mm with bracket) · 1.5 kg |
| Housing / rating | Aluminium · IP53 |
| Operating temperature | -20°C to 60°C |
| Warranty | 2 years standard |
What’s in the box
URF520 Solea fixed UHF reader with power supply. Antennas and cables are sold separately; see our RFID antennas.
Ideal for
RFID self-checkout and point-of-sale, retail stock visibility, warehouse dock doors and portals, conveyor tracking, and asset and document tracking rooms.
Why buy the URF520 Solea from Technowave
Technowave has supplied and supported Auto-ID and RFID technology across the UAE and GCC for more than 27 years. We help you choose the right configuration, set up and integrate the device with your ERP, WMS or POS, train your team and support it after go-live, including RFID site surveys, antenna design and tag selection. Keep your devices running with a Newland AMC and repair service, or contact our team for a project quote and volume pricing.
